| Connecting thread | 1/4 " |
| Adjustment range | 0.6 – 16 bar |
| Max. operating pressure | 16 bar |
| Max. inlet pressure | 16 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | +50 °C |
| Medium | Compressed air, neutral gases |
| Connection pressure gauge | 1/4 " |
| VPE | 1 |

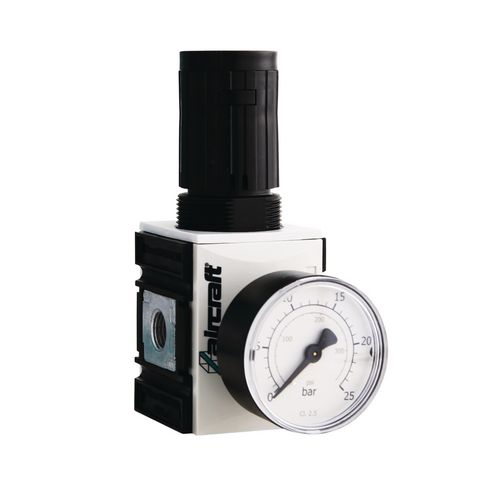

Pressure regulator
1/4" 16 bar
31,90
EUR excl. Tax / pc(s).
37,96
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2317010
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Diaphragm pressure regulator with secondary vent
- For compressed air and neutral gases
- Inlet pressure max. 16 bar
- Suitable for temperatures from -10 to +50°C
- Possible to secure with plug-in lock or padlock
- Diaphragm pressure regulator with secondary vent
- For compressed air and neutral gases
- Inlet pressure max. 16 bar
- Suitable for temperatures from -10 to +50°C
- Possible to secure with plug-in lock or padlock
| Dimensions and weights | |
|---|---|
| Length approx. | 52 mm |
| Width/depth approx. | 54 mm |
| Height approx. | 129 mm |
| Weight approx. | 0.2464 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
