    Productimage for ASA 1901
    Brandimage to Product ASA 1901

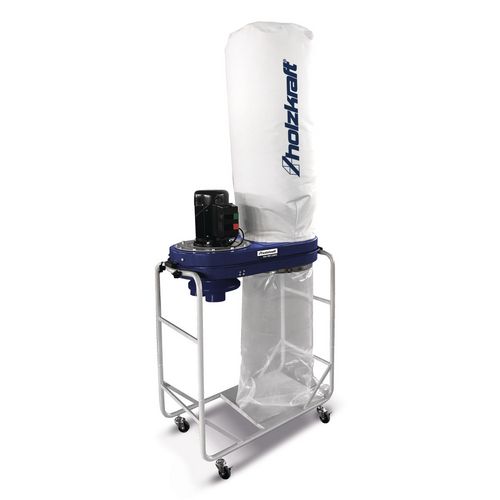

    Chip extractor

    ASA 1901

    mobile, with 180° rotatable suction unit

    535,00 EUR excl. Tax / pc(s).
    636,65 EUR incl. 19% Tax / pc(s).
    Promotional price *
    449,00 EUR excl. Tax / pc(s).
    534,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 5128191

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For milling, planing and sawdust (not suitable for dust)
    • 180° rotatable suction unit enables suction routing from below or above
    • Stable fan wheel made of metal
    • Standard with high-quality chassis for better stability and easy manoeuvring
    • Quick-release fasteners for filter and chip sack
    • Fine filter bag double woven



    • For milling, planing and sawdust
    • High-quality, stable chassis for easy manoeuvring
    • Fine filter bag double woven



    Dimensions and weights
    Chip collection volume110 l
    Extraction duct inlet outside nominal width203 mm
    Extraction duct outlet outside nominal width1 x 100, 1 x 120 mm
    Length approx.1000 mm
    Width/depth approx.500 mm
    Height approx.2100 mm
    Weight approx.39 kg
    Electrical Data
    Motor speed2950 min¯¹
    Motor input1,5 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Filter
    Filter surface area1.92 m²
    Noise emission
    Max. sound pressure level85.7 dB(A)
    Volume flow
    Rated volume flow1900 m³/h
    Max. negative pressure1700 Pa
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Fine filter bag, chip bag



    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
