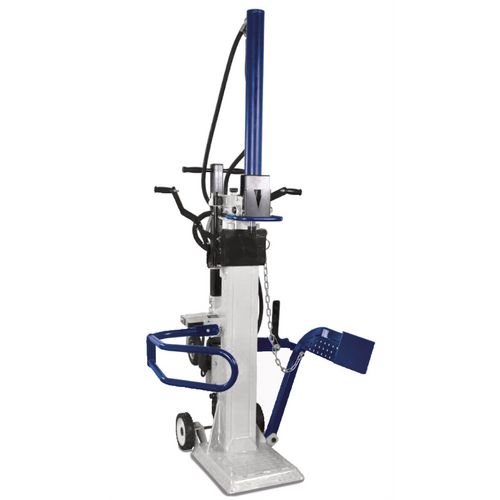

Log splitter

HSE 14-1100

Robust and solid vertical model, for demanding users

910,00 EUR excl. Tax / pc(s).
1.082,90 EUR incl. 19% Tax / pc(s).
Promotional price *
769,00 EUR excl. Tax / pc(s).
915,11 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2021 in Germany.

Art.-No. 5981014

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Vertical version for splitting short and meter wood
    • Low base plate for easy, low-fatigue loading of large trunks
    • Mechanical stem lifting device puts heavy trunks in position in a back-gentle position
    • With split-material catch bar
    • Fast, tool-free gap height adjustment
    • Powerful industrial hydraulic system
    • Phase changer on all 400 V models
    • Two-hand safety circuit
    • Convenient transport with a hand drawbar due to the standard chassis with hard rubber wheels and an additional support wheel
    • Shock and scratch resistant due to high-quality powder coating
    • Space-saving storage thanks to easy-to-reduce cylinders



    • Hand drawbar
    • Large rubber-wheel chassis



    Device data
    Max. splitting force14 t
    Min. splitting length560 mm
    Max. splitting length1040 mm
    Min. split material diameter100 mm
    Max. split material diameter300 mm
    Dimensions and weights
    Length approx.1440 mm
    Width/depth approx.1350 mm
    Height approx.2280 mm
    Weight approx.185 kg
    Drive
    DriveElectric motor
    Drive motor input3.5 kW
    Electric Data
    Supply voltage400 V
    Mains frequency50 Hz
    Hydraulic system
    Oil tank capacity7.5 l
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
