| Dimensions and weights | |
|---|---|
| Length approx. | 790 mm |
| Width/depth approx. | 620 mm |
| Height approx. | 1630 mm |
| Weight approx. | 89 kg |

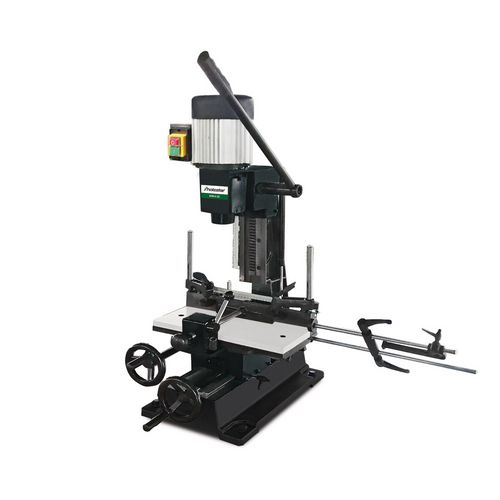

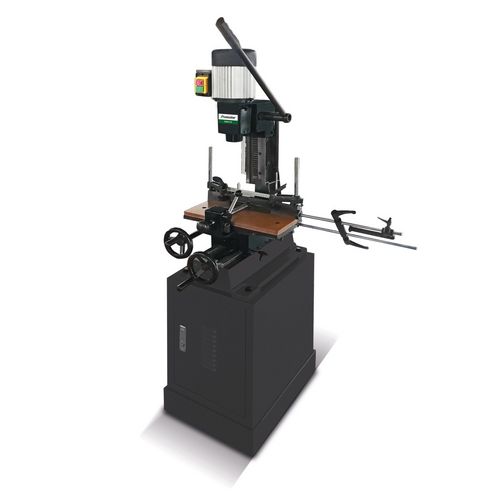

Drilling and mortising machine
BSM-H 25
Compact machine for drilling and mortising
899,00
EUR excl. Tax / pc(s).
1.069,81
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5906125
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For easy production of slot-pin connections
- Solid cast construction of the machine frame with precise dovetail guides in each axis
- Large Z-axis travel of 200 mm for high workpieces
- Long lever for quill stroke for chiseling out with little effort
- Movable clamping jaws with quick clamping function
- Two adjustable stops each for X and Y direction
- The machine head is additionally held with a gas pressure spring for easier handling
- Tool holder via drill chuck with gear rim
- For easy production of slot-pin connections
- Solid cast construction of the machine frame with precise dovetail guides in each axis
- Large Z-axis travel of 200 mm for high workpieces
- Long lever for quill stroke for chiseling out with little effort
- Two adjustable stops each for X and Y direction
- The machine head is additionally held with a gas pressure spring for easier handling
| Electrical Data | |
|---|---|
| Rating | 0,75 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Spindle | |
|---|---|
| Max. height of workpiece | 210 mm |
| Max. depth of workpiece | 145 mm |
| Max. Chisel stroke | 76 mm |
| Chisel sizes | 6 – 25.4 mm |
| Drill chuck mount | B16-16mm |
| Speed | 1400 min¯¹ |
| Work top(s) | |
|---|---|
| Work table lenth | 400 mm |
| Work table width | 150 mm |
| Table travel X | 175 mm |
| Table travel Y | 150 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1x gouge 6,35mm (1/4")
- 1x gouge 9,5mm (3/8")
- 1x gouge 12,7mm (1/2")
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
