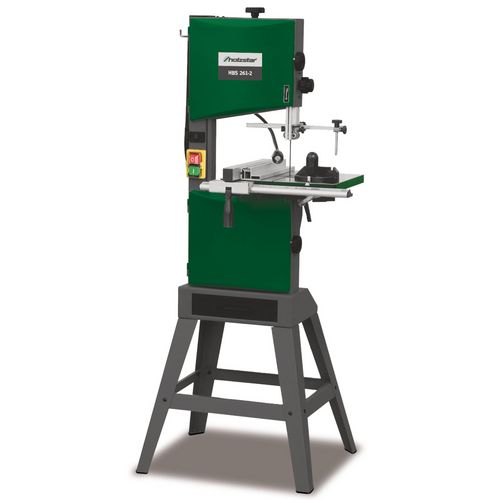

Woodbandsaw

HBS 261-2

Reliable band saws for precise work

485,00 EUR excl. Tax / pc(s).
577,15 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5902426

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Ideal for ambitious modellers and do-it-yourselfers

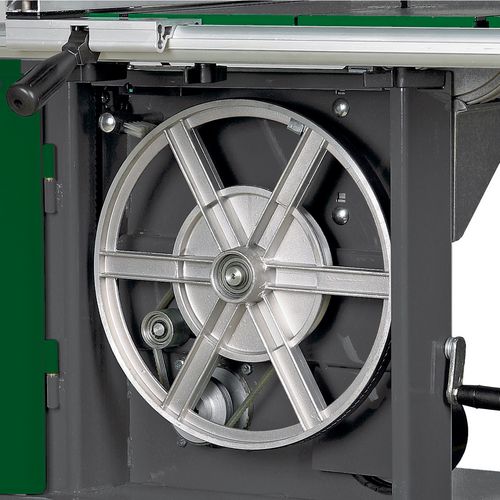

    • Flywheels made of die-cast aluminum with special coating
    • Aluminium cast iron worktable swiveling up to 45°

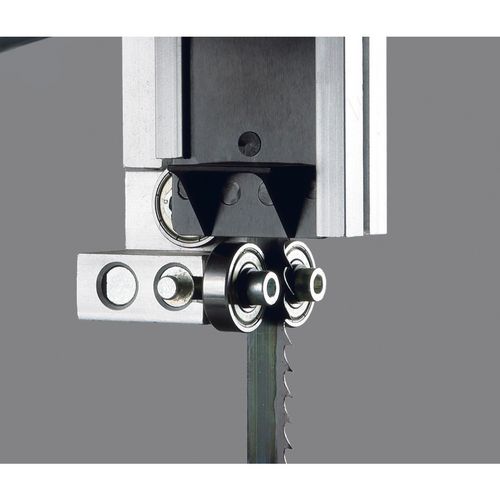

    • Equipped with precise 3-rolls saw band guide above and below the table

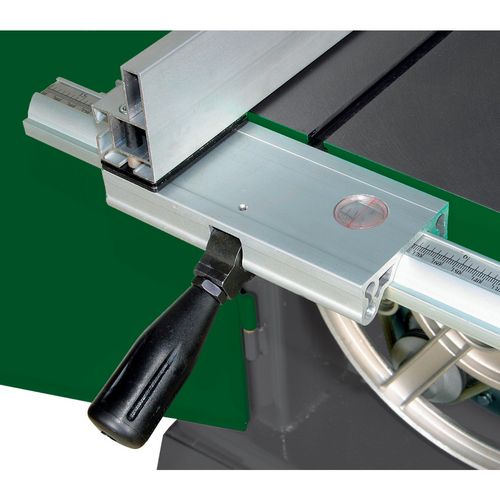

    • Aluminum longitudinal stop with quick clamping precisely adjustable with the aid of a magnifying glass and millimeter scale (except HBS 231-1)
    • Two belt speeds adjustable (except HBS 231-1)



    Cutting ranges
    Max. cutting height 90°152 mm
    Max. cutting height 45°95 mm
    Max. cutting width with stop145 mm
    Max. cutting width without stop245 mm
    Dimensions and weights
    Length approx.680 mm
    Width/depth approx.520 mm
    Height approx.1435 mm
    Weight approx.34 kg
    Electrical Data
    Delivery power0.22 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Saw band
    Speed(s)400/800 m/min
    Length1826 mm
    Width10.0 mm
    Strength0.35 mm
    Work top(s)
    Length360 mm
    Width320 mm
    Height935 mm
    Pivot0 – 45 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Saw band
    • Longitudinal stop with loupe
    • Miter stop
    • LED work light
    • Push stick
    • Base
