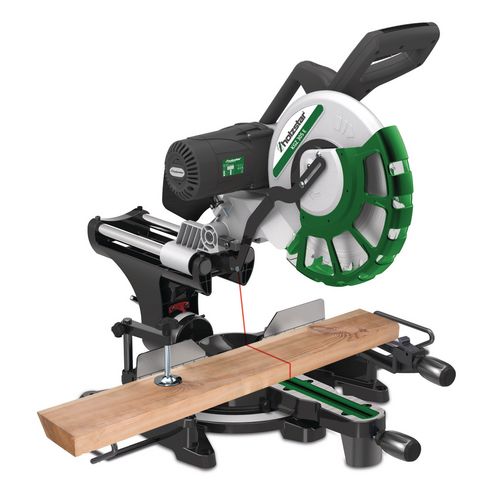

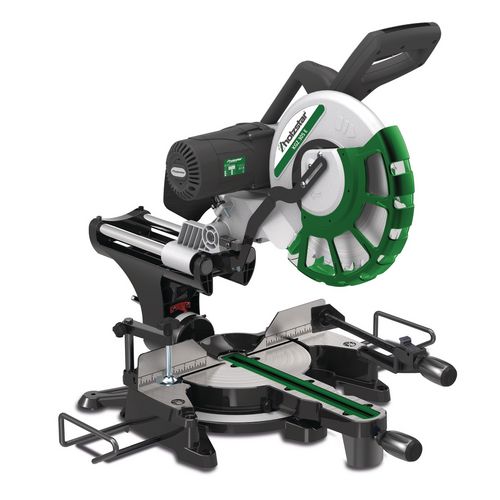

Crosscut / miter saw

KGZ 305 E

With pull function - mobile and versatile

459,00 EUR excl. Tax / pc(s).
546,21 EUR incl. 19% Tax / pc(s).
Promotional price *
395,00 EUR excl. Tax / pc(s).
470,05 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2023 in Germany.

Art.-No. 5702305

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

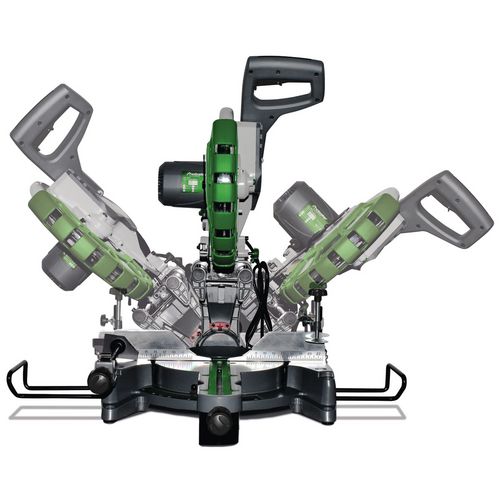

    • Continuously adjustable double miter and double tilt as a factory standard
    • Base plate and turntable made of die-cast aluminum, at the same time compact, robust and easy to transport

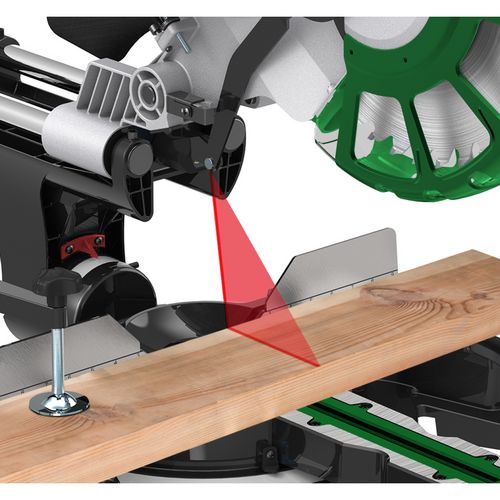

    • Laser projection on the workpiece for precise control of the cutting position
    • Adjustable contact rails and laterally extendable supports for longer workpieces

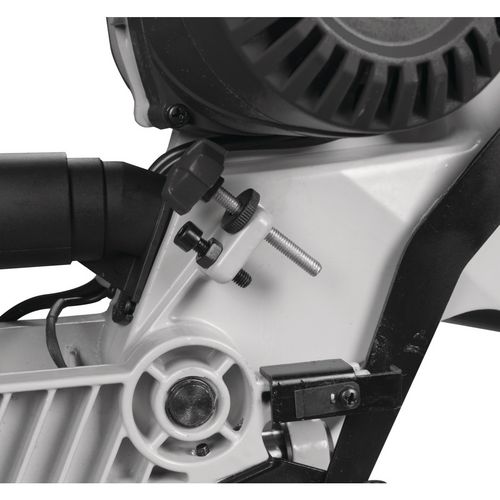

    • 2-fold adjustable cap depth limitation
    • Traction function for extended cutting area

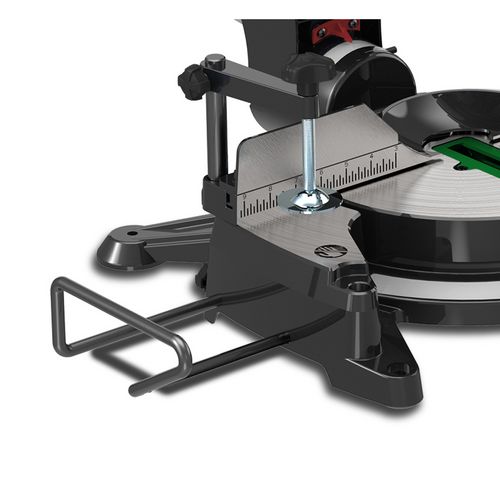

    • With screw clamp and clamping device as factory standard to safely hold the workpiece
    • Suction nozzle for dust bag or the connection of an external suction



    • Equipped with soft start



    Saw band speed4500 min¯¹
    Saw blade diameter305 mm
    Max. bevel angle range left45 °
    Max. bevel angle range right45 °
    VPE1
    Cutting capacity
    0° inclination / 0° mitre100 x 340 mm
    -45° inclination / 0° mitre40 x 340 mm
    +45° inclination / 0° mitre40 x 340 mm
    0° inclination / -45° mitre100 x 240 mm
    -45° inclination / -45° mitre40 x 240 mm
    +45° inclination / +45° mitre40 x 240 mm
    Dimensions and weights
    Length approx.835 mm
    Width/depth approx.570 mm
    Height approx.790 mm
    Weight approx.23 kg
    Electrical Data
    Main motor2.0 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • clamp
    • clamping device
    • Dust collection bag
    • Saw blade Ø 305 x 3.2 x Ø 30 mm Z48



    Soft start
    Stop railsadjustable
