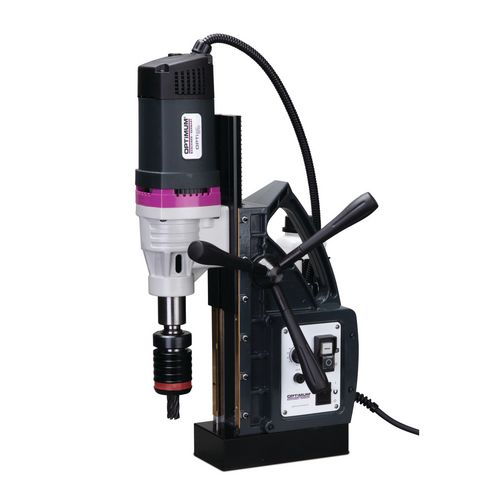

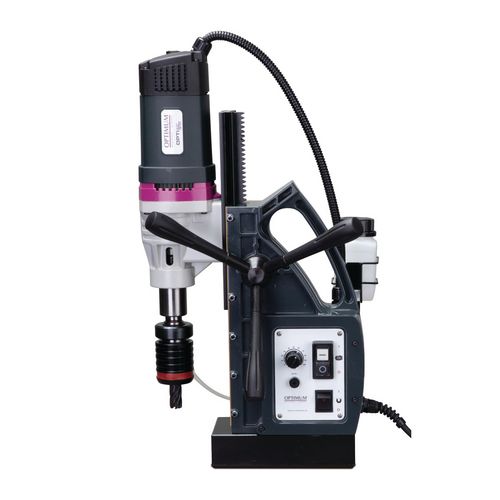

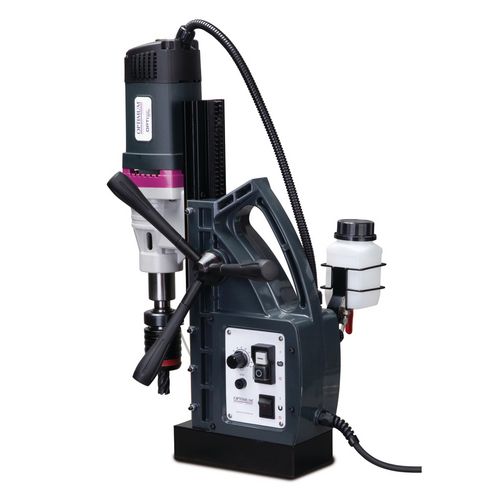

Magnetic core drill

OPTIdrill DM 98V

with continuously variable speed, when you need reliability, precision and economy at work

1.149,00 EUR excl. Tax / pc(s).
1.367,31 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3071198

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Low weight: Die-cast magnesium frame
    • Stable drill guide due to long and low-mounted sleeve holder
    • Ideal for the construction site: grounded with dual insulation

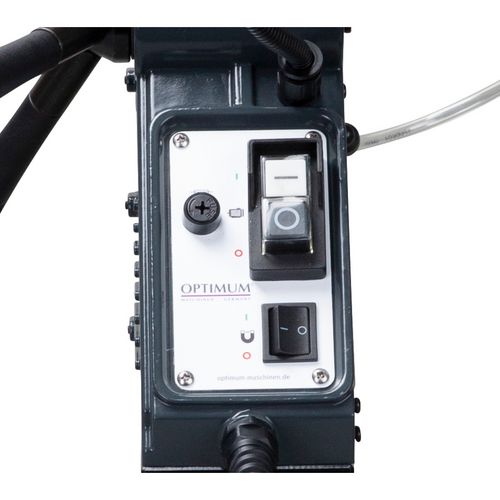

    • Safe switch arrangement
    • High magnetic holding force
    • High quality design

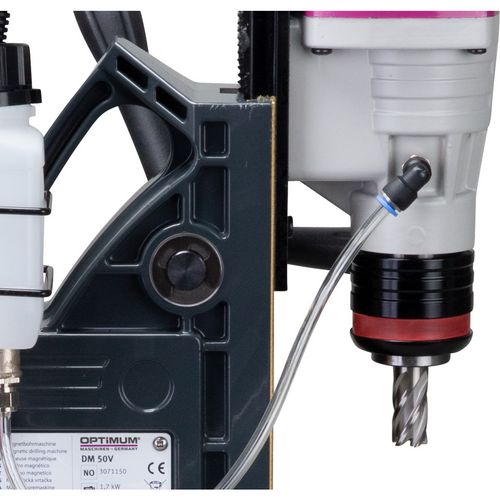

    • Automatic internal lubrication: coolant is fed directly to the tip of the core drill
    • Internal self-lubricating function for a longer transmission service life
    • Conversion from core to full drilling in just a few steps

    Equipment details:

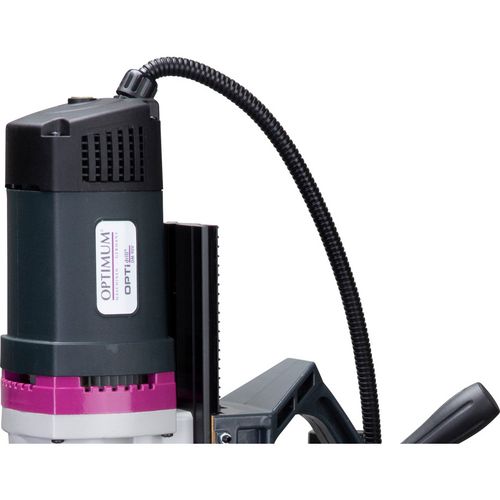

    Motor

    • powerful
    • High torque
    • Low maintenance

    Guides

    • Safe guides for stability and precision

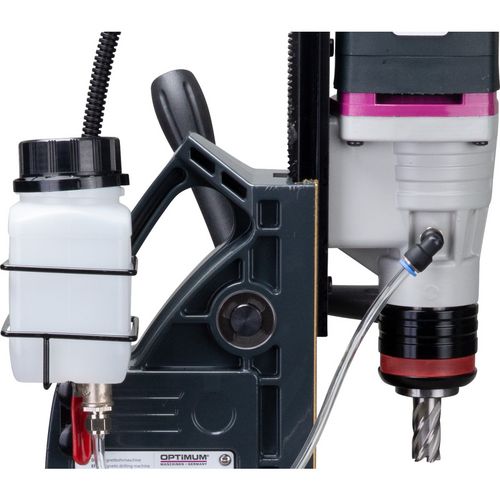

    Coolant tank

    • removable
    • External fastening
    • Carefully considered and practical

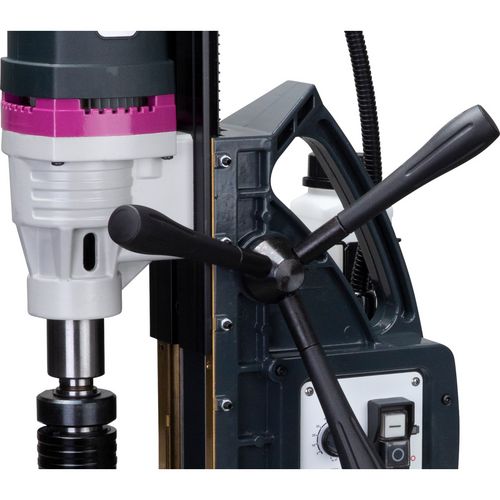

    Handles

    • Ergonomic and rugged handles for "balanced" holding and fastening of the machine
    • Rugged crank

    Spindle holder

    • MK mount
    • Weldon shank

    Speed

    • Continuously adjustable

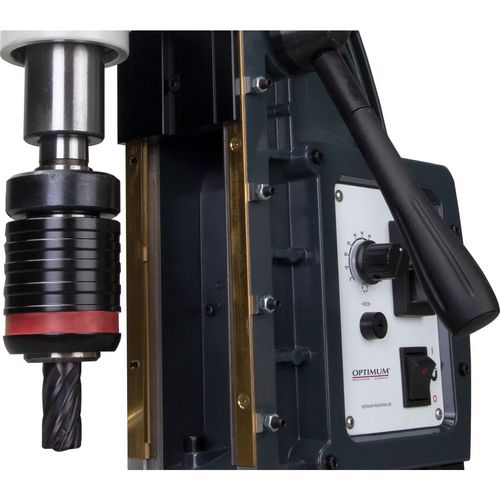

    Collet
    SpindleMT 3
    DrillWeldon 3/4"
    Core drills
    Core drills Ø max. with manual feed98 mm
    Max. drilling depth core drilling with manual feed75 mm
    Dimensions and weights
    Length approx.330 mm
    Width/depth approx.240 mm
    Height approx.450 – 650 mm
    Weight approx.18,5 kg
    Drive output
    Absorbed power drive motor2.18 kW
    Electrical Data
    Supply voltage230 V
    Mains frequency50 Hz
    Full drills
    Drill Ø max. full drilling directly mounted28 mm
    Magnet
    Holding force17 kN
    Magnet base length202 mm
    Magnet base width103 mm
    Speed range
    Idle (CW run)160 – 370 min¯¹
    Speed controlstepless
    Standards and certifications
    EMV-ClassC2
    StandardDIN EN 55011
    Protection classIP 42
    VPE1
    Unit: pc(s).
    Packaging unit: 1

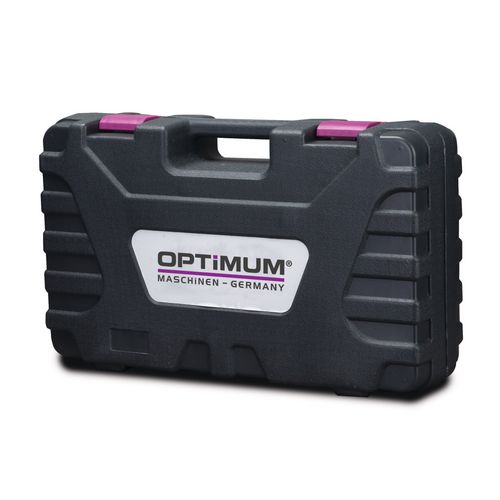

    • Transport case
    • Coolant tank
    • Safety chain
    • quick-change drill chuck
    • Tool



    Vario drive
    Spindle sleeve feedManual
