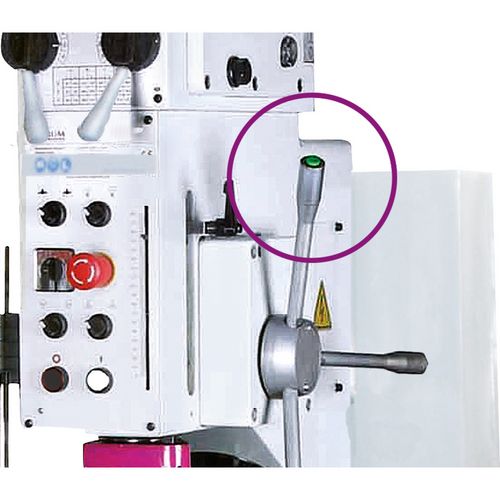

• Productimage for OPTIdrill B 40GSM
  • Productimage for OPTIdrill B 40GSM
  • Productimage for OPTIdrill B 40GSM
  • Productimage for OPTIdrill B 40GSM
  • Productimage for OPTIdrill B 40GSM
  • Productimage for OPTIdrill B 40GSM
  • Productimage for OPTIdrill B 40GSM
  • Productimage for OPTIdrill B 40GSM
Brandimage to Product OPTIdrill B 40GSM

Gear drilling machine

OPTIdrill B 40GSM

Heavy version with tapping attachment

6.250,00 EUR excl. Tax / pc(s).
7.437,50 EUR incl. 19% Tax / pc(s).
Promotional price *
5.859,00 EUR excl. Tax / pc(s).
6.972,21 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2023 in Germany.

Art.-No. 3034400

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Heavy, solid cast construction
    • Automatic gear lubrication via oil pump
    • High concentricity due to hardened and ground main spindle
    • Threading attachment
    • Main switch and motor protection switch
    • Drilling depth stop adjustable with millimeter scale
    • Machine light integrated in the drill head
    • Precise machined and large-dimensioned drill table with diagonally running T-slots and circumferential cooling water channel
    • Integrated expeller for easy tool change
    • Coolant device and chip filter according to Machinery Directive
    • Thick-walled cast-iron column for high power absorption and stability
    • Solid base plate, large dimensions, extremely stable

    OPTIdrill B 40GSM

    • Electrical quill feed

    OPTIdrill B 40GSP

    • Manual quill feed



    Dimensions and weights
    Column diameter150 mm
    Length approx.935 mm
    Width/depth approx.530 mm
    Height approx.2280 mm
    Weight approx.500 kg
    Drilling performance
    Drilling performance steel (S235JR)35 mm
    Continuous drilling performance steel (S235JR)30 mm
    Thread tapping steel (S235JR)M 24
    Drilling table
    Workspace length560 mm
    Workspace width560 mm
    T-groove typediagonal
    T-groove size18 mm
    T-groove number2
    Rotation± 90 °
    Load bearing capacity250 kg
    Max. distance spindle - drilling table780 mm
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Machine base
    Max. distance spindle - machine base1320 mm
    Work area length510 mm
    Work area width 500 mm
    Machine base T-groove size18 mm
    Machine base T-groove number2
    Machine base T-groove spacing150 mm
    Motor(s)
    Spindle motor drive output0.85 / 1.5 kW
    Coolant pump drive motor output40 W
    Speed range
    Speed range50 – 1450 min¯¹
    Number of gears18 Steps
    Spindle
    Quill stroke180 mm
    Spindle chuckMT 4
    Reach350 mm
    Quill feed speed0,1 / 0,2 mm/rev
    Quill feed gears2 Steps
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Keyless drill chuck 1 - 16 mm
    • Morse taper MK 4/B16
