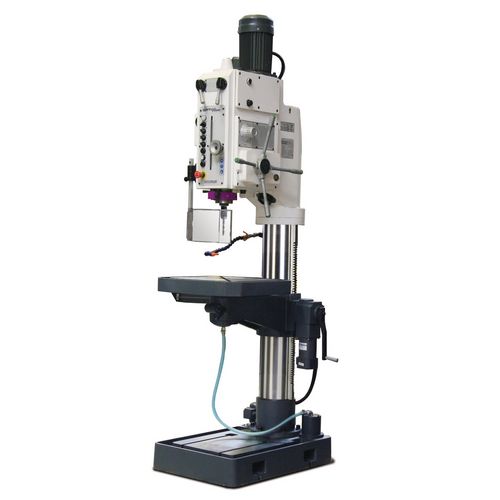

Gear drilling machine

OPTIdrill B 50GSM

Heavy duty for industrial use. With coolant and thread cutting device, as well as automatic quill feed

11.090,00 EUR excl. Tax / pc(s).
13.197,10 EUR incl. 19% Tax / pc(s).
Promotional price *
10.469,00 EUR excl. Tax / pc(s).
12.458,11 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2023 in Germany.

Art.-No. 3034500

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Heavy, solid cast construction
    • Smooth running due to polished gear wheels running in oil bath
    • High concentricity due to hardened and ground main spindle
    • Two-stage drive motor
    • Forward/reverse operation
    • Automatic gear lubrication via oil pump

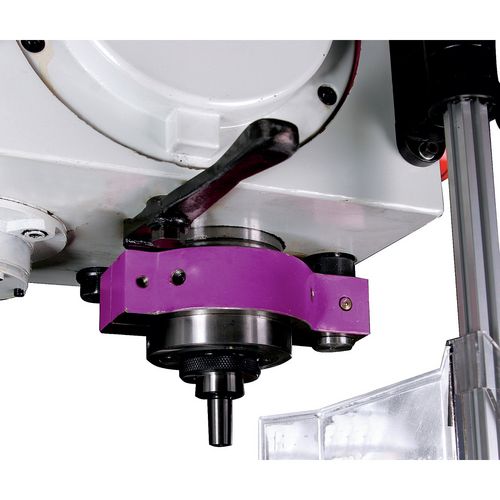

    • Threading attachment
    • Main switch and motor protection switch

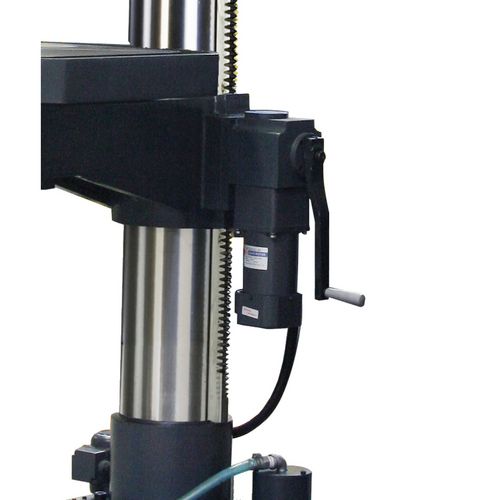

    • Motorized table height adjustment
    • Machine light integrated in the drill head
    • Large, height-adjustable protective screen with safety switch for the utmost protection of the user

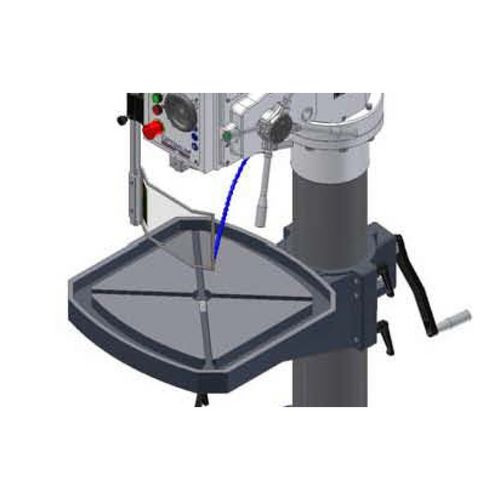

    • Large dimensioned, solid drill table, precisely worked with parallel T-slots and circumferential cooling water channel, strongly ribbed on the back, 360° rotatable
    • Coolant system and external coolant tank can be removed for easy and complete emptying
    • Chip filter according to Machinery Directive
    • Extremely stable, thick-walled cast-iron column - column diameter 200 mm - for high power consumption
    • Solid base plate with parallel T-slots, precision surface finish



    Dimensions and weights
    Column diameter200 mm
    Length approx.985 mm
    Width/depth approx.775 mm
    Height approx.2460 mm
    Weight approx.950 kg
    Drilling performance
    Drilling performance steel (S235JR)50 mm
    Continuous drilling performance steel (S235JR)45 mm
    Thread tapping steel (S235JR)M 42
    Drilling table
    Workspace length600 mm
    Workspace width600 mm
    T-groove typediagonal
    T-groove size18 mm
    T-groove number2
    Rotation± 90 °
    Load bearing capacity300 kg
    Max. distance spindle - drilling table800 mm
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Machine base
    Max. distance spindle - machine base1300 mm
    Work area length600 mm
    Work area width 520 mm
    Machine base T-groove size18 mm
    Machine base T-groove number2
    Machine base T-groove spacing280 mm
    Motor(s)
    Coolant pump drive motor output40 W
    Speed range
    Speed range54 – 2090 min¯¹
    Number of gears18 Steps
    Spindle
    Quill stroke230 mm
    Spindle chuckMT 4
    Reach375 mm
    Quill feed speed0,05 – 0,3 mm/rev
    Quill feed gears6 Steps
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Keyless drill chuck 1 - 16 mm
    • Morse taper MK 4/B16
    • T-slots
