Radial drill

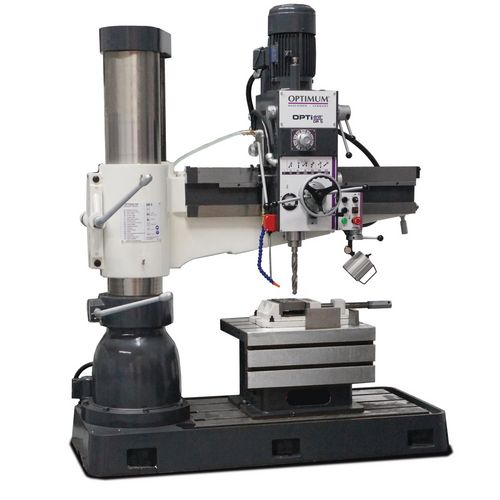

OPTIdrill RD 5

Precision-working, solid radial drilling machines in top quality. Ideal for variable use in single part and series production.

22.890,00 EUR excl. Tax / pc(s).
27.239,10 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3049050

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Versatile application, such as Drilling, rubbing, tapping
    • Electrically braked engine

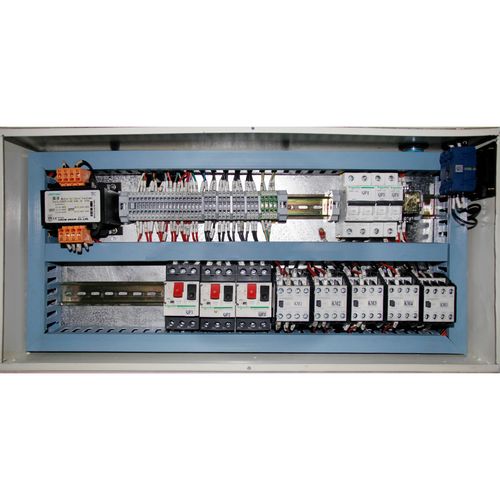

    • Controls in 24 V DC electronics
    • Heavy, massive, high quality quality casting
    • Wide reach through horizontally adjustable machine head
    • Clearly arranged control panel
    • Smooth-running swivel and travel axes
    • Elaborately machined column pivoting with optimized clamping for maximum stability with minimum clamping offset
    • Robust, rigid construction of the boom
    • Height adjustment of the boom via powerful motor drive and lifting spindle
    • In oil bath running gear of the drill head
    • Boom guideways hardened and precision ground
    • Geared gears made of chrome-nickel-steel, hardened and precision ground, thus quiet and smooth running
    • Drilling head and column can be clamped or loosened together or separately
    • Forward and reverse running
    • Massive, exact drill table, large dimensions
    • Hardened and ground worktable with parallel T-slots
    • machine light
    • Overload protection
    • Thick-walled cast-iron column ensures smooth running and stability
    • led lamp
    • Coolant device with coolant tank in the machine foot

    RD 4 / RD 5

    • All axes are clamped manually


    Angle of rotation± 180 °
    Dimensions and weights
    Column diameter260 mm
    Length approx.1725 mm
    Width/depth approx.745 mm
    Height approx.2550 mm
    Weight approx.1800 kg
    Drilling performance
    Drilling performance steel (S235JR)42 mm
    Continuous drilling performance steel (S235JR)40 mm
    Drilling table
    T-groove size19 mm
    T-groove number3
    T-groove spacing171 mm
    Max. distance spindle - drilling table1270 mm
    Clamping table length635 mm
    Clamping table width520 mm
    Clamping table height415 mm
    Cube table T-groove size19 mm
    Cube table T-groove number3
    Cube table T-groove spacing121 mm
    Min. distance spindle to clamping table 50 mm
    Max. distance spindle to clamping table850 mm
    Min. distance spindle - drilling table470 mm
    Electrical Data
    Total rated value4 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Machine base
    Work area length1147 mm
    Work area width 589 mm
    Length1608 mm
    Width745 mm
    Spindle motor drive output2.25 kW
    Boom lift motor drive output0,75 kW
    Coolant pump drive motor output90 W
    Speed range
    Speed range37 – 1253 min¯¹
    Number of gears12
    Quill stroke230 mm
    Spindle chuckMT4
    Quill feed speed0.05 – 0.15 mm/rev
    Quill feed gears3
    Drilling head travel (horizontal)820 mm
    Boom lift stroke (vertical)570 mm
    Max. distance spindle - column1100 mm
    Min. distance spindle - column280 mm
    Unit: pc(s).
    Packaging unit: 1

    • worktable
