Radial drill

OPTIdrill RD 6

Precision-working, solid radial drilling machines in top quality. Ideal for variable use in single part and series production.

40.290,00 EUR excl. Tax / pc(s).
47.945,10 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3049070

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Versatile application, such as Drilling, rubbing, tapping
    • Electrically braked engine

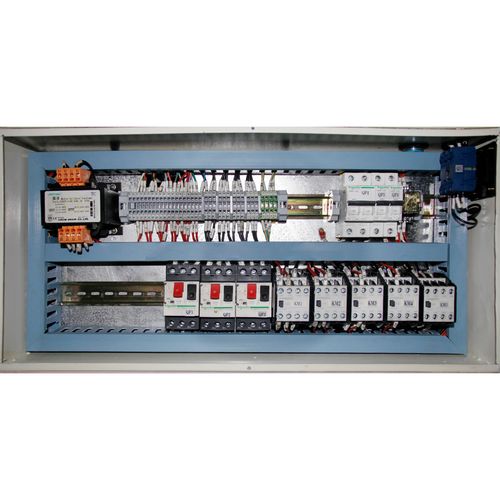

    • 24V DC electrics and 2-channel safety chain according to DIN EN 12717
    • Heavy, massive, high quality quality casting
    • Wide reach through horizontally adjustable machine head

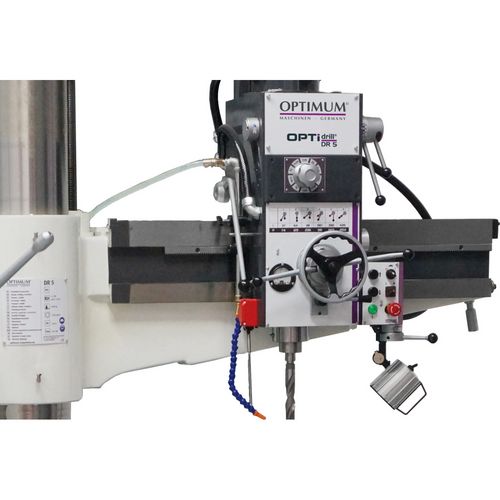

    • Clearly arranged control panel
    • Smooth-running swivel and travel axes
    • Elaborately machined column pivoting with optimized clamping for maximum stability with minimum clamping offset
    • Robust, rigid construction of the boom
    • Height adjustment of the boom via powerful motor drive and lifting spindle
    • In oil bath running gear of the drill head
    • Boom guideways hardened and precision ground
    • Geared gears made of chrome-nickel-steel, hardened and precision ground, thus quiet and smooth running
    • Drilling head and column can be clamped or loosened together or separately
    • Forward and reverse running
    • Massive, exact drill table, large dimensions
    • Hardened and ground worktable with parallel T-slots
    • machine light
    • Overload protection
    • Thick-walled cast-iron column ensures smooth running and stability
    • led lamp
    • Coolant device with coolant tank in the machine foot

    RD 4 / RD 5

    • All axes are clamped manually

    RD 6

    • Pillar is hydraulically clamped



    Boom
    Angle of rotation± 180 °
    Dimensions and weights
    Column diameter320 mm
    Length approx.2670 mm
    Width/depth approx.1120 mm
    Height approx.2760 mm
    Weight approx.3200 kg
    Drilling performance
    Drilling performance steel (S235JR)50 mm
    Continuous drilling performance steel (S235JR)45 mm
    Drilling table
    T-groove size14 mm
    T-groove number4
    T-groove spacing180 mm
    Max. distance spindle - drilling table1420 mm
    Clamping table length630 mm
    Clamping table width500 mm
    Clamping table height500 mm
    Cube table T-groove size22 mm
    Cube table T-groove number3
    Cube table T-groove spacing150 mm
    Min. distance spindle to clamping table 0 mm
    Max. distance spindle to clamping table910 mm
    Min. distance spindle - drilling table465 mm
    Electrical Data
    Total rated value6.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Machine base
    Work area length2550 mm
    Work area width 970 mm
    Motor(s)
    Spindle motor drive output4 kW
    Boom lift motor drive output1,5 kW
    Coolant pump drive motor output90 W
    Hydraulic clamping drive0,75 kW
    Speed range
    Speed range44 – 1023 min¯¹
    Number of gears12
    Spindle
    Quill stroke270 mm
    Spindle chuckMT5
    Quill feed speed0.06 – 0.2 mm/rev
    Quill feed gears3
    Travel
    Drilling head travel (horizontal)1250 mm
    Boom lift stroke (vertical)680 mm
    Max. distance spindle - column1600 mm
    Min. distance spindle - column350 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • worktable
