Guide and traction spindle lathes

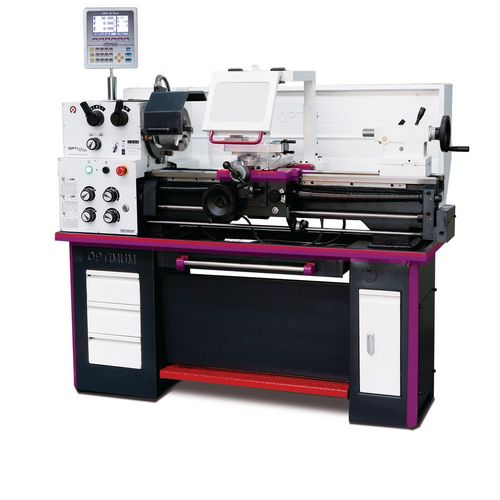

OPTIturn TH 3309D

Fully equipped and with digital position indicator DPA 31 Plus

7.150,00 EUR excl. Tax / pc(s).
8.508,50 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3402040

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Hardened and ground Z-axis guideway
    • Precisely machined slide
    • Guaranteed concentricity of the spindle nose ≤ 0.015 mm
    • Lead screw cover
    • All guides can be adjusted using gibs
    • Right/left rotation switchable on the bed slide
    • Two-channel safety electronics
    • DC 24 V electrics with two-channel safety circuit in accordance with EN 23125
    • Switch with life cycle calculation tested according to EN ISO 13849
    • Gear wheels smooth-running, hardened and ground
    • Main spindle runs in oil bath
    • Upper slide adjustment range ± 90°
    • LED machine lamp integrated in chip guard
    • Handwheels with adjustable fine scaling 0.04 / 0.02 mm
    • Handwheels decoupled and tested according to EN 23125
    • Safety handwheels with disengagement function in the X- and Z-axis
    • Heavily ribbed prism bed, induction hardened and precision ground
    • Tailstock adjustable ± 10 mm for taper turning
    • Tailstock quill and handwheel with adjustable fine scaling 0.02 mm
    • Quick, easy and tool-free adjustment using clamping lever
    • Machine base with tool compartment on the right-hand side (left-hand side with 3 panels (no compartments))
    • Lockable main switch
    • Quadruple steel holder
    • Emergency stop device with foot control
    • Rotating chuck guard tested in accordance with EN 23125
    • Set of interchangeable gears included as standard



    Dimensions and weights
    Length approx.1685 mm
    Width/depth approx.745 mm
    Height approx.1590 mm
    Weight approx.512 kg
    Electrical Data
    Drive motor output1,5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Feed
    Longitudinal feed range0,052 – 1,392 mm/rev
    Number of longitudinal feeds32
    Flat feed range0,014 – 0,38 mm/rev
    Number of flat feeds32
    Pitches
    Metric pitch0,4 – 7 mm/rev
    Number of metric pitches26
    Imperial pitch56 – 4 Gg/1"
    Number of imperial pitches34
    Speed range
    Number of gears16
    Speed range70 – 2000 min¯¹
    Spindle
    Spindle chuckCamlock DIN ISO 702-2 No. 4
    Spindle bore/rod passage diameter38 mm
    Tool holder max. chuck height16 mm
    Spindle coneMK 5
    Tailstock
    ChuckMK 3
    Quill stroke110 mm
    Quill diameter32 mm
    Travel
    Travel upper slide98 mm
    Travel cross slide164 mm
    Travel carriage saddle695 mm
    Work areas
    Max. height165 mm
    Max. width830 mm
    Swing diameter above machine bed330 mm
    Swing diameter above planing slide208 mm
    Turning length in bed bridge430 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Steady rest passageway Ø 6 - 50 mm
    • Follow rest passageway Ø 8 - 30 mm
    • LED machine lamp
    • Reduction sleeve MT 5 - MT 3
    • Two fixed centres MT 3
    • Quadruplicate tool holder 16 mm
    • Replaceable gear set
    • Machine chassis
    • Machine initially filled with premium grade oil
    • Operating tool

    Do not forget the lathe chuck



    Digital position indicatorDPA 31 Plus
