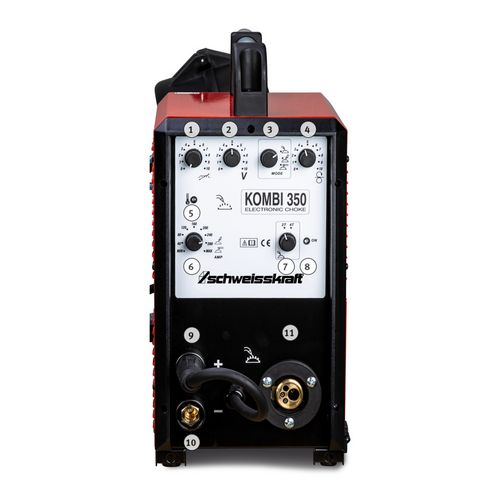

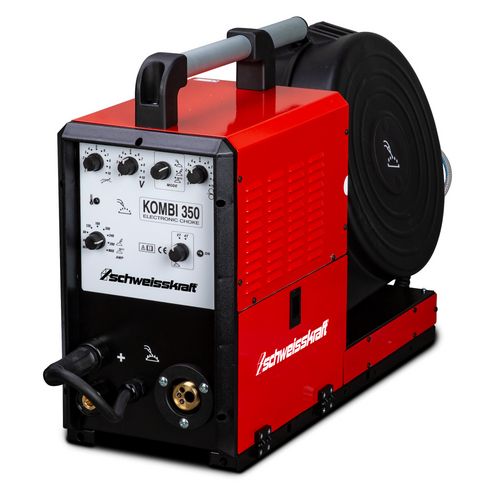

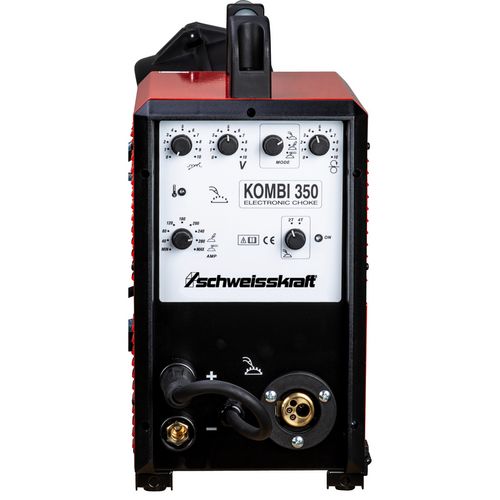

KOMBI 350

For MIG/MAG, TIG and electrode welding. Lightweight and robust, ideal for use on construction sites

3.010,00 EUR excl. Tax / pc(s).
3.581,90 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 1087056

Are you interested in this product?

Put a request

Find Trader

Productdetails

Basic Features

Method

MIG/MAG
TIG DC with LIFT-ARC
Welding electrodes
Cored wire welding without gas

Sheet thicknesses

TIG from approx. 1 mm
MIG/MAG from approx. 1 mm
Electrodes from approx. 2 mm

Base materials

Low-alloyed materials
High alloyed materials
Structural steels
Coated structural steels
CrNi steels ferritic / austenitic
Duplex steels
Nickel-based materials
Copper
Aluminum
Special materials

Typical applications

Plant, container, machine and steel construction
Maintenance/repair
Vehicle construction / construction machinery
Industrial plant and pipeline construction
Construction site and assembly

Description

Hot start function

Ignition aid for the ignition of the arc of a rod electrode during electrode welding. Due to an automatic short-term increase in the welding current, the arc immediately ignites stable.

Arc Force Control

The Schweisskraft is kept as constant as possible during electrode welding at the set value. The arc burns stable, even with difficult electrodes or positions, the welding result is more even.

Anti-stick function

In the case of a sticky operation of the electrode on the workpiece, the welding current is switched off. The electrode does not glow and can be easily detached from the workpiece.

Pulses in TIG function with pulse box

Welding faults at the seam beginning and end of the seam, e.g. in pipe welding, are avoided by pulses.

MIG welding without bottle

More wide application area thanks to the possibility of using filling wires, thus allowing MIG welding, e.g. on construction sites without a gas cylinder, a great plus in mobility.

Lift Arc Ignition

Tear ignition during TIG welding with a minimum current. Only after the ignition of the arc is the set welding current released.

Adjustable electronic throttle

For optimal adjustment of arcs depending on requirements from hard to soft.

MIG/MAG
Electronic throttle
WIG LIFT-ARC und HF ignition
MIG/MAG Adjustment range 15 – 350 A
For electrodes up to 6.0 mm

Dimensions and weights
Length approx.	760 mm
Width/depth approx.	228 mm
Height approx.	475 mm
Weight approx.	26.5 kg

Duty cycle
at Imax. 40°C MIG/MAG	40 %
at Imax. 40°C TIG DC	60 %
at Imax. 40°C electrode	40 %
Current at 100% DC 40°C MIG/MAG	230 A
Current at 100% DC 40°C TIG DC	260 A
Current at 100% DC 40°C electrode	230 A

Electrical Data
Supply voltage	3 x 400 V
Mains frequency	50/60 Hz

Electrode
Weldable electrodes	1.6 - 6.0 mm

Power consumption
Power consumption MIG/MAG	8.6 kVA
TG DC	7.8 kVA
Electrode	9.8 kVA

Setting range
Setting range MIG/MAG	15 – 350 A
Electrode	5 – 320 A
TIG DC	5 – 320 A

Standards and certifications
Standard	EN 60 974-1; -10
EMC class	A
Explanation EMC class	This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
Marking	CE, S

Wire feed
Wire feed unit	4 Rollers

VPE

Unit: pc(s).
Packaging unit: 1

Conveyor rollers 1.0/1.2 mm
