Cooling | |
---|---|
Cooling type | AF |
Torch cooling | Air |

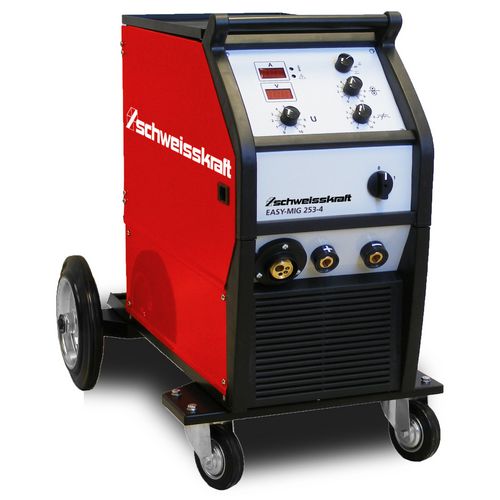

MIG/MAG inert gas welding machine
Step-switched shielded arc welding system with modern inverter technology
1.669,00
EUR excl. Tax / pc(s).
1.986,11
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1081257
Cooling | |
---|---|
Cooling type | AF |
Torch cooling | Air |
Dimensions and weights | |
---|---|
Length approx. | 835 mm |
Width/depth approx. | 510 mm |
Height approx. | 720 mm |
Weight approx. | 31 kg |
Duty cycle | |
---|---|
Duty cycle at Imax. 40°C | 60 % |
Current at 60% DC 40°C | 250 A |
Current at 100% DC 40°C | 200 A |
Electrical connections | |
---|---|
Input current | 12 A |
Electrical Data | |
---|---|
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Power consumption | |
---|---|
MIG/MAG | 8.3 kVA |
Setting range | |
---|---|
MIG/MAG | 30 - 250 A |
Electrode | 30 - 200 A |
Switching stages | stepless |
Standards and certifications | |
---|---|
Standard | EN 60974-1; EN 60974-10 |
EMC class | A |
Marking | S |
Wire feed | |
---|---|
weldable wires steel | 0.8 - 1.2 mm |
weldable wires stainless steel | 0.8 - 1.2 mm |
weldable wires aluminium | 1.0 - 1.2 mm |
Wire feet unit | 4 Rollers |
Speed | 1,0 - 22 m/min |
Wire feed rolls/driven | 4 Rollers |
VPE | 1 |
Process MIG/MAG | ✔ |
Process MMA | ✔ |
