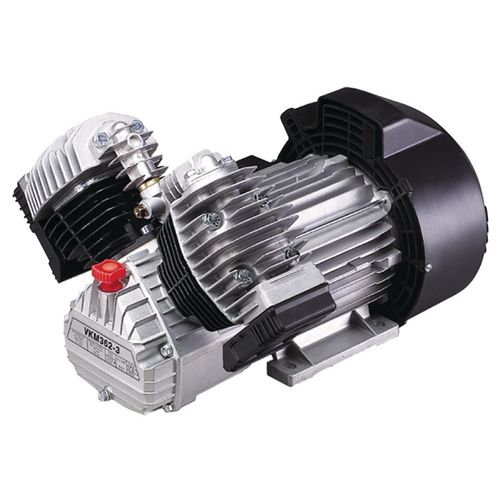

Coaxial compressors work with the coaxial drive. Crankshaft and drive shaft are a component in this, which means:
- Maximum mechanical efficiency
- No more drive parts required
- Reduction of moving components
Features
- Top-efficient cooling air flow
- Special, ground valves made of stainless steel.
Type | Single phase oil lubricated |
Maximum pressure | 10 bar |
Number of cylinders | 2-V |
Suction capacity approx. | 310 l/min |
Filling capacity approx. | 209 l/min |
Explanation filling capacity | at 6 bar working pressure |
Speed | 1420 min¯¹ |
Drive transmission | Direct-coupled |
VPE | 1 |
Dimensions and weights |
---|
Length approx. | 473 mm |
Width/depth approx. | 382 mm |
Height approx. | 293 mm |
Weight approx. | 23.6 kg |
Electrical Data |
---|
Delivery power | 2.2 kW |
Duty type drive motor | S1 |
Supply voltage | 230 V |
Mains frequency | 50 Hz |
Noise emission |
---|
Sound pressure level Lp | 75 dB(A) |
Unit: pc(s).
Packaging unit: 1
Aftercooler | ✔ |
High-quality connecting rod bearings | ✔ |
Cylinder made of cast iron | ✔ |
Overload protection | ✔ |
