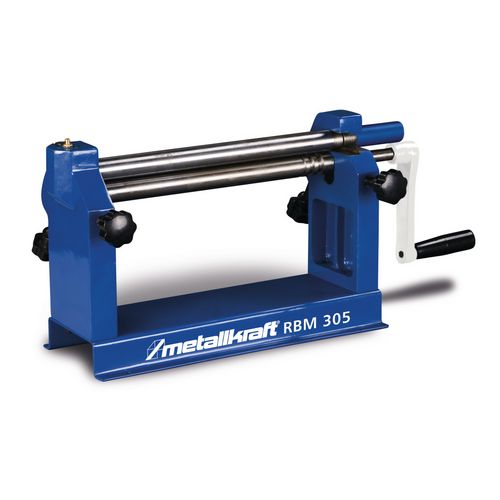

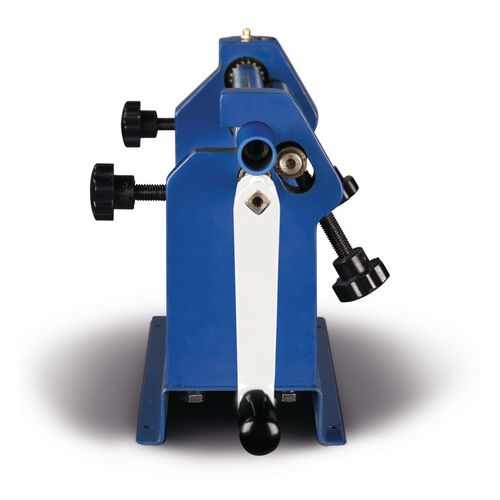

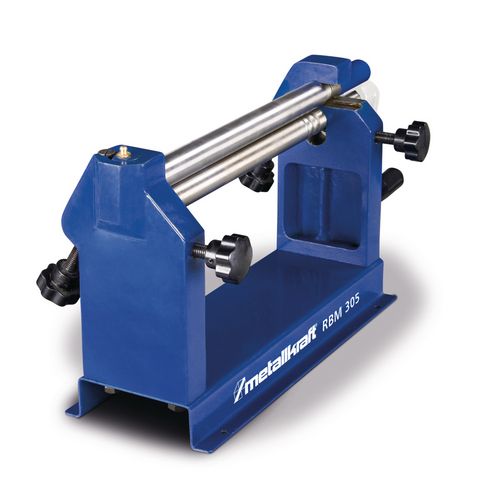

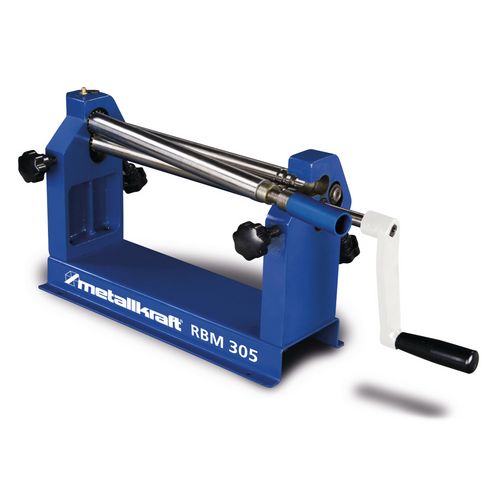

Manual plate rolling machine

RBM 305

Asymmetrical with three rollers

179,00 EUR excl. Tax / pc(s).
213,01 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3780112

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Rolls made of steel
    • Swing-out top roller for easier removal of the workpiece
    • Asymmetric roller arrangement for easy pre-bending
    • Tiltable side roller for conical bending
    • Clamping and side roller with wire insert groove
    • Roller drive via hand crank and gearbox
    • Particularly handy and therefore suitable for work in confined spaces
    • Due to the low wave strength optimally suitable for filigree applications
    • 3-roll bending machine for the production of all round shaped parts such as pipes, cylinders, etc.
    • Simple and solid construction



    Room amenities:

    • Lubrication possible via grease nipple (RBM 305)
    • The upper roller is adjustable, thus easy removal of the finished workpiece
    • Rear roller individually adjustable, thus also conical work possible
    • Settings based on comfortable large-sized roller set screws



    Bending performance
    Max. pre-bending performance in steel 400 N/mm²0.80 mm
    Min. bending diameter40 mm
    Dimensions and weights
    Max. working width305 mm
    Top roller diameter25 mm
    Wire insert groove diameter4/6/8 mm
    Length approx.580 mm
    Width/depth approx.210 mm
    Height approx.255 mm
    Weight approx.14 kg
    VPE1
    Unit: pc(s).
    Packaging unit: 1
