| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |

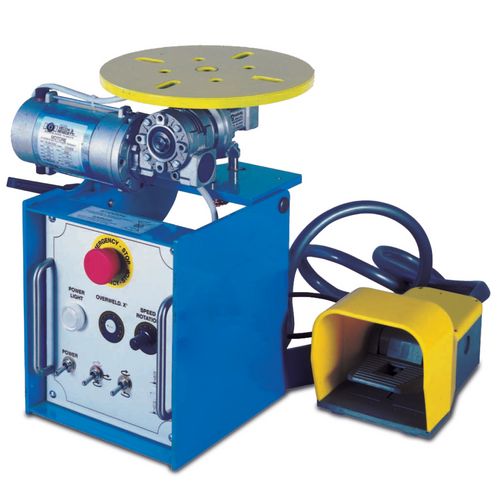

Rotary Welding Table
SPS
From 2.499,00
EUR excl. Tax / pc(s).
From 2.973,81
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| Dimensions and weights | Technical data | General | Price | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Rotary disc diameter (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive type | Load-bearing capacity horizontal table position (kg) | Speed (min¯¹) | VPE | EUR excl. Tax | EUR incl. 19% Tax | |
| Automa 2000 PLC 30 | 1500030 | 300 | 400 | 370 | 370 | 26 | DC / 24V | 30 | 1 – 10 | 1 | 4.290,00 | 5.105,10 | |
| Automa 2000 PLC 50 | 1500050 | 300 | 400 | 370 | 370 | 29 | DC / 24V | 50 | 1 – 10 | 1 | 2.499,00 | 2.973,81 | |
| Automa 2000 PLC 70 | 1500070 | 400 | 820 | 600 | 670 | 58 | DC / 24V | 70 | 1 – 10 | 1 | 2.770,00 | 3.296,30 | |
| Automa 2000 PLC 75 | 1500075 | 400 | 820 | 600 | 1080 | 65 | AC / 24V | 70 | 1 – 10 | 1 | 4.938,00 | 5.876,22 | |
| Automa 2000 PLC 150 | 1500150 | 500 | 1050 | 880 | 1080 | 100 | AC / 24V | 150 | 0,9 – 9 | 1 | 6.642,00 | 7.903,98 | |
| Automa 2000 PLC 200 | 1500200 | 500 | 1050 | 880 | 1080 | 100 | AC / 24V | 200 | 0,9 – 9 | 1 | 7.344,00 | 8.739,36 | |
Select Attributes
Dimensions and weights
- Rotary disc diameter
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Technical data
- Drive type
- Load-bearing capacity horizontal table position
- Speed
General
- VPE
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- Geeignet für Elektroden-, MIG-, MIG-MAG- und Plasmaschweißen und Plasmaschneiden
- Übersichtliche Bedienelemente
- Stufenlos verstellbare Drehzahl
- Die Steuerelektronik ist von einem robusten und geschlossenen Gehäuse geschützt
- Mit Fußtaster für Start/Stop
