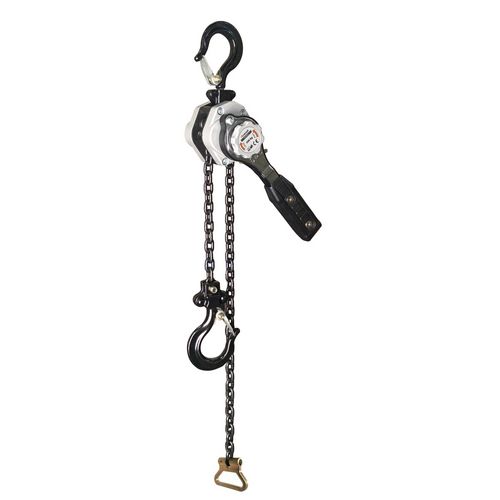

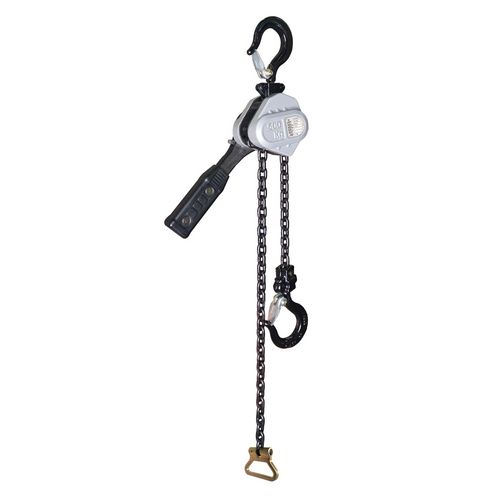

    Aluminium lever hoist

    HZ 500 AL

    extremely light and compact, for lifting, pulling, straightening and clamping in all directions

    105,90 EUR excl. Tax / pc(s).
    126,02 EUR incl. 19% Tax / pc(s).
    Promotional price *
    97,90 EUR excl. Tax / pc(s).
    116,50 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 6171105

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Reliable and safe braking system
    • Brake and drive shaft with involute gearing
    • Equipped with fine-toothed gear, therefore only low hand lever force required
    • High-quality, galvanized and hardened load chain according to EN 818-7
    • Chain freewheel for fast pulling through and positioning of the unloaded chain
    • Easy and quick adjustment to the desired working position
    • chain stroke length of 1.5m
    • aluminium housing, extremely light and compact
    • Compact design with short lever
    • Easy maintenance and assembly
    • Including a practical bag for storage and transport



    • Reliable and safe braking system
    • Brake and drive shaft with involute gearing
    • Finely toothed gear, therefore only low hand lever force required
    • High-quality, galvanized and hardened load chain according to EN 818-7
    • Easy and quick adjustment to the desired working position



    Load-bearing capacity0,5 t
    Stroke1.5 m
    Hand force at rated load255 N
    Number of chain strands1
    VPE1
    Dimensions and weights
    Min. distance between mount and load hook265 mm
    Lever length163 mm
    Load hook inner diameter34 mm
    Length approx.100 mm
    Width/depth approx.99 mm
    Height approx.265 mm
    Weight approx.2.98 kg
    Unit: pc(s).
    Packaging unit: 1
