Productimage for SHT 1001 U
Brandimage to Product SHT 1001 U

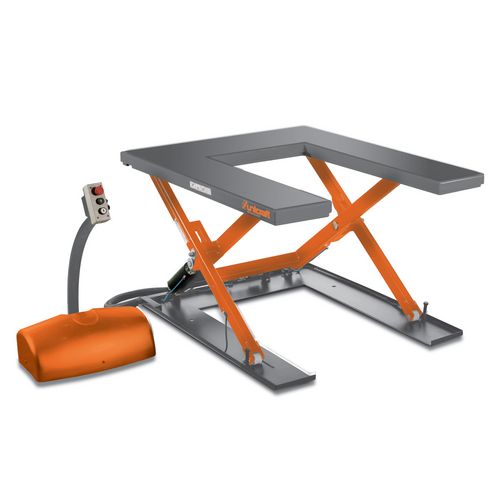

Scissor lifting

SHT 1001 U

With hydraulic lifting device and particularly low overall height, for ergonomic work at optimum working height

2.565,00 EUR excl. Tax / pc(s).
3.052,35 EUR incl. 19% Tax / pc(s).
Promotional price *
2.179,00 EUR excl. Tax / pc(s).
2.593,01 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2021 in Germany.

Art.-No. 6153101

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • With closed platform
    • Including ramp - making it easy to drive in and out by pallet truck
    • Separate control unit with 3 meters of cable, control buttons and emergency stop switch
    • Stepless lifting and lowering
    • Stable steel construction for optimum stability
    • Meets the safety criteria of EN 1570
    • Chromed piston rods
    • Model SHT 1001 U with U-shaped platform, thus better accessible by pallet trucks



    Load-bearing capacity1 t
    Min. platform height80 mm
    Max. platform height760 mm
    Lifting time platform height min. to max.18 s
    Lifting speed loaded42 mm/s
    VPE1
    Dimensions and weights
    External length of platform1450 mm
    External width of platform1140 mm
    Internal length of platform1050 mm
    Internal width of platform585 mm
    Weight approx.235 kg
    Drive output
    Main motor0.75 kW
    Electric Data
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
