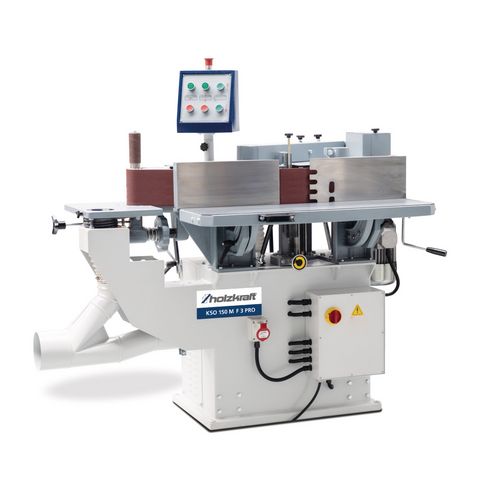

Edge sanding machine

KSO 150 M F 3 PRO

With a motorized, height-adjustable sanding unit for the best sanding results

15.690,00 EUR excl. Tax / pc(s).
18.671,10 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5390150

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

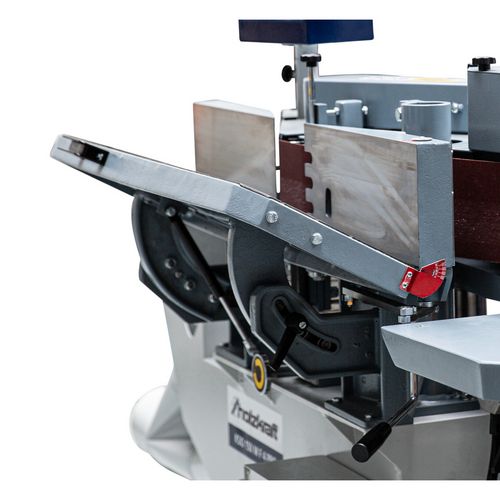

    • Each separate work table for solid wood and veneer sanding, manually pivotable by 45° or 35°

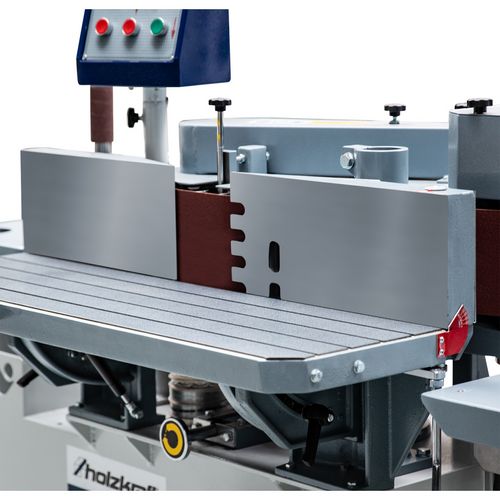

    • The stop for veneer sanding can be adjusted to an accuracy of 0.1 mm

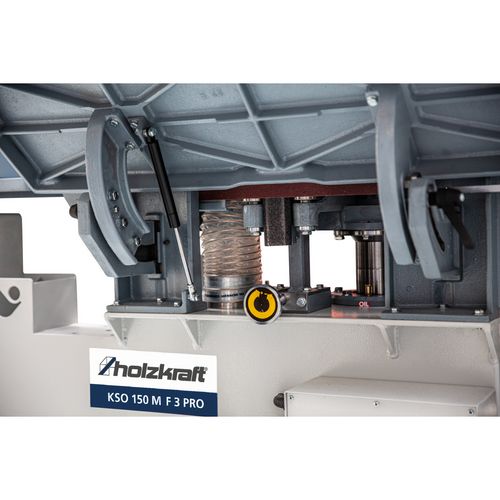

    • Motor-driven, height-adjustable sanding unit
    • Additional table with suction openings for sanding radii on the rubber-coated deflection roller

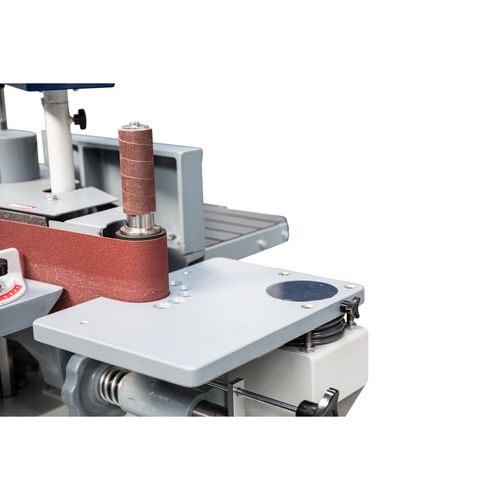

    • Sanding sleeve device with attachable work table

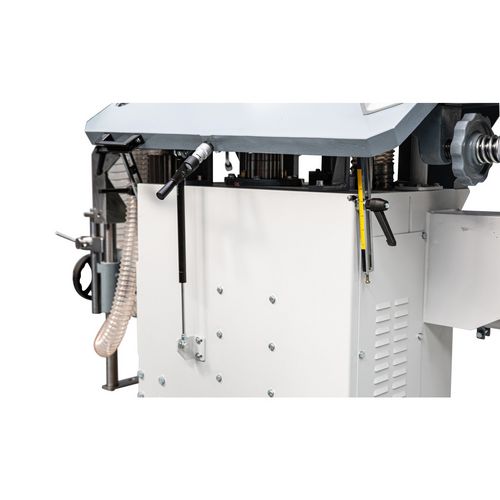

    • The machine stand made of welded steel guarantees a high Torsion resistance and vibration-free work
    • Oscillating sanding belt with separate geared motor for better sanding results
    • Oscillation can be switched on as an option

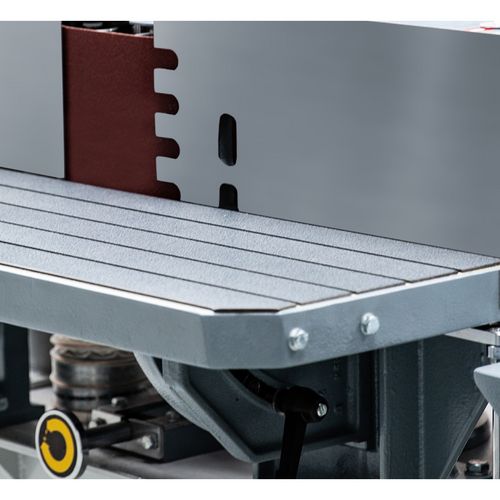

    • Abrasion-resistant and highly slippery plastic strips on the work table surface
    • Grinding soleplate with graphite coating for a longer service life of the grinding belt
    • The spring-loaded belt tension automatically compensates for differences in belt length
    • Rubberised and grooved grinding roller

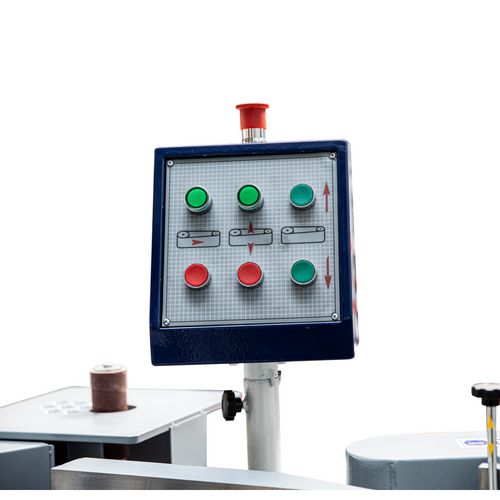

    • Convenient operation from two sides on the rotating control panel of the machine
    • Centrally positioned mount for the feed unit



    Dimensions and weights
    Length approx.1820 mm
    Width/depth approx.1050 mm
    Height approx.1470 mm
    Weight approx.400 kg
    Drive output
    Oscillation motor0.38 kW
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz

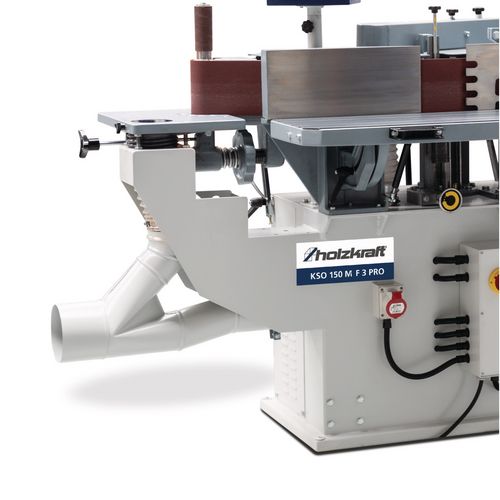

    Extraction port
    Extraction port diameter150 mm
    Sanding machine
    Sanding belt length2640 mm
    Sanding belt width150 mm
    Circumferential belt speed(s)14 m/s
    Sanding surface length890 mm
    Sanding surface width150 mm
    Max. sanding height150 mm
    Oscillation stroke20 mm
    Work top(s)
    Work table length1000 mm
    Work table width280 mm
    Pivoting45 / 35 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 1x sanding belt K100
    • 5x rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm
    • 6x sanding sleeves K80 - Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm
    • On-board tool

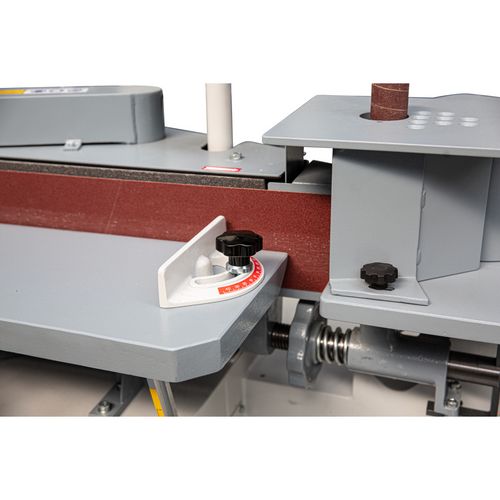

    • Miter fence
