Brandimage to Product OBSS 100

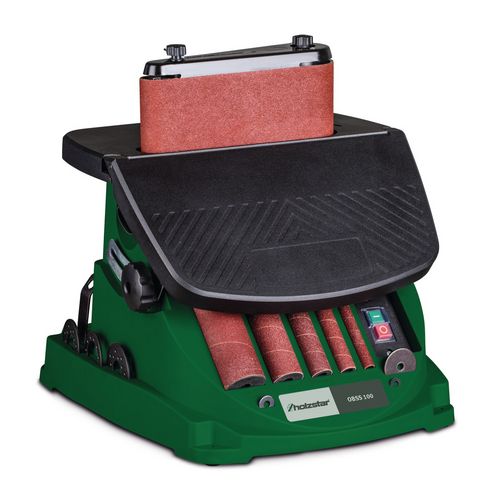

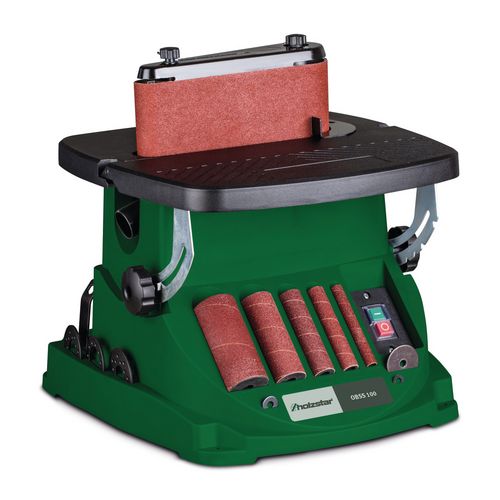

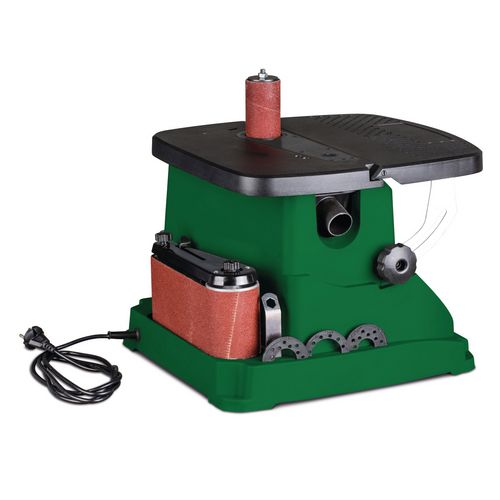

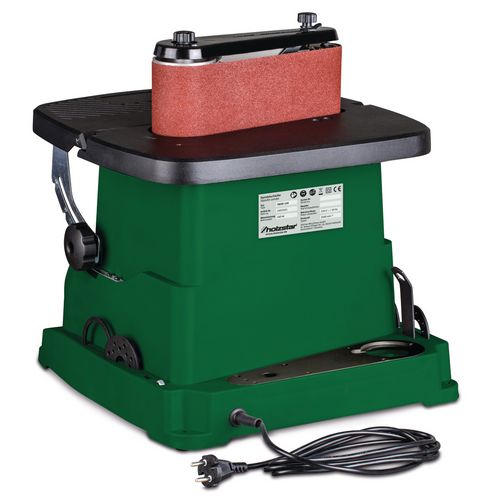

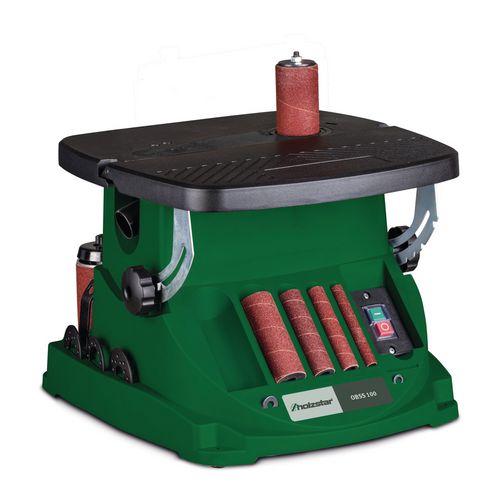

Oscillating spindle and belt sander

OBSS 100

For sanding shaped parts, inner radii, round and straight edges, recesses or cut-outs

275,00 EUR excl. Tax / pc(s).
327,25 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5903501

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Tilting work table continuously adjustable from 0 ° to 45 °. Additionally fixed angle steps at 0 °, 15 °, 22.5 °, 30 ° and 45 °
    • Safe and clean working thanks to integrated extraction nozzle for connection of an external suction unit
    • Practical storage for accessories and assembly tools



    • Belt and spindle sanding in one device - fast and tool-free conversion
    • Powerful 450 Watt motor with enough power for all wood materials
    • Easy transport and storage due to compact and lightweight design
    • Good surface due to rotating and oscillating spindle



    Dimensions and weights
    Length approx.530 mm
    Width/depth approx.480 mm
    Height approx.480 mm
    Weight approx.12 kg
    Electrical Data
    Absorbed power drive motor0,45 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter38 mm
    Sanding machine
    Sanding belt length610 mm
    Sanding belt width100 mm
    Circumferential belt speed(s)8 m/s
    Sanding surface length220 mm
    Sanding surface width100 mm
    Max. sanding height98 mm
    Sanding sleeves diameter13, 19, 26, 38, 51 mm
    Sliding sleeves Length115 mm
    Spindle diameter12.7 mm
    Oscillation stroke16 mm
    Oscillation58 min¯¹
    Work top(s)
    Work table length430 mm
    Work table width410 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

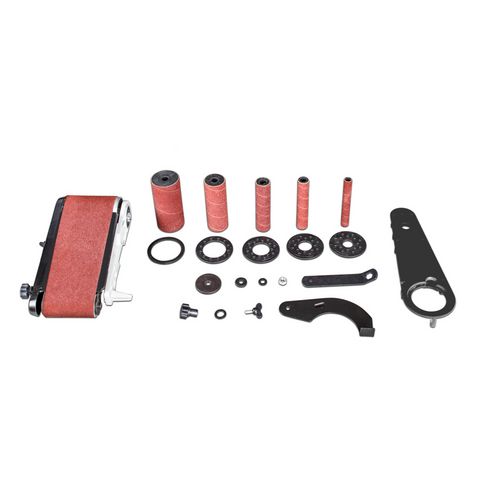

    • 5 sanding sleeves K80, Ø 13/19/26/38/51 mm
    • 4 rubberized sanding rollers, length 115 mm, Ø 19/26/38/51 mm
    • 5 table inserts Ø 13/19/26/38/51 mm
    • 3 spindle discs Ø 16/22/44 mm
    • Sanding belt attachment
    • Cover for sanding belt attachment
    • Workpiece stop
    • assembly tool
    • Sanding belt
    • 3 Spindle discs Ø 16/22/35
