Nanofilters

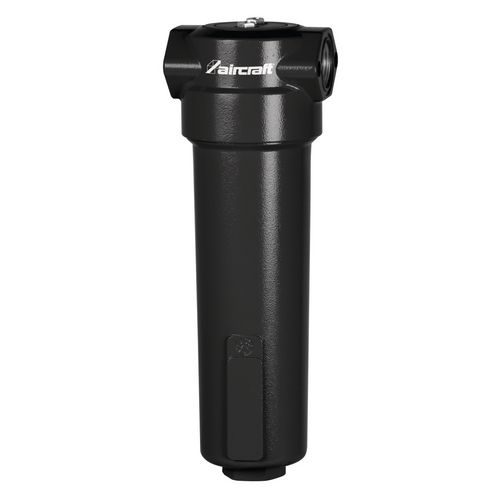

ANF ​​0078

Optimum air quality for all applications

129,00 EUR excl. Tax / pc(s).
153,51 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2053432

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Compressed air filters are used for highly efficient removal of solid particles, water, oil, aerosols, hydrocarbons, odors and vapors from compressed air systems.
    • To achieve the required quality of compressed air, filters that gradually remove all types of solid and liquid contaminants from the compressed air must be installed in the compressed air line
    • Your advantages through better quality compressed air:
    • Safe filtration of both liquids such as water and aerosols as well as particles, dust and gases
    • Better working and production conditions
    • Optimum protection of connected tools and machines
    • Improved product quality through reduction of rejects
    • Protection of the compressed air system against contamination
    • Increase of productivity by reduction of instant maintenance



    • for separating solid contaminants up to 0.01μm
    • Residual oil aerosol content up to 0.01 mg / m³ at 20 ° C and 1 bar
    • Operating temperature 1.5 to 65 ° C
    • absolute compressed air quality according to ISO 8573-1
    • for safe separation of condensate and particles

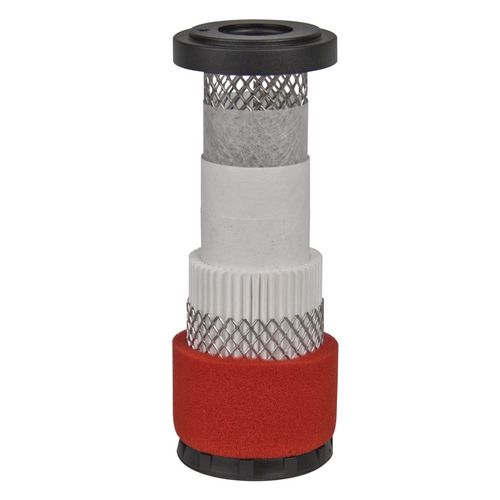

    • complete with filter element and float valve



    Volume flow m³/h78 m³/h
    Volume flow l/min1300 l/min
    Volume flow measured at operating pressure7 bar
    Air connection½ "
    VPE1
    Dimensions and weights
    Width/depth approx.88 mm
    Height approx.187 mm
    Technical data
    Particle size 0.01 μm
    Residual oil aerosol content0.01 mg/m³
    Unit: pc(s).
    Packaging unit: 1
