Mobile piston compressor with belt drive

AIRPROFI 503/100 P

Professional compressors with 2-cylinder high-performance unit made of cast iron and maximum equipment

1.519,00 EUR excl. Tax / pc(s).
1.807,61 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2018531.2

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Maximum, robust equipment and best quality at a reasonable price
    • Fully automatic on-off operation
    • With all safety devices
    • Completely ready for connection

    Quality electric motor

    • Quality electric motor with high starting torque is equipped with a motor protection switch
    • Starting capacitor and starting relief valve ensure easy starting
    • Phase inverter as standard for easy manual reversal of the direction of rotation

    Compressed air compression via high-performance HOS unit

    • The start-up relief valve ensures easy and pressureless start-up
    • The two-cylinder high-performance unit made of gray cast iron and the low speed warranty particularly quiet and low-vibration running and a long service life
    • This ensures an even longer service life due to even less wear and tear
    • High-quality compressor with optimum lubrication for a long service life and high reliability
    • Equipped with high quality intake filter
    • The aftercooler with large cooling fins ensures a low boiler inlet temperature and thus less moisture in the compressed air, which protects the air tools
    • Additional intercooler to the aftercooler
    • Corrosion-free valve plates for improved heat dissipation and compressor longevity
    • The large fan impeller and a cooling air baffle on the cylinder ensure optimum cooling of the compressor
    • A sturdy metal belt guard ensures optimum protection of the components and a high level of user safety
    • Compressed air supply to the boiler via flexible armored hose line with heat protection prevents vibration breakage

    High quality drive belt

    • Powerful and economical drive
    • The toothed drive belt facilitates start-up, improves running smoothness and power transmission and reduces power consumption by up to 30%.
    • Sturdy metal belt guard

    Comfort safety coupling - The advantages.

    • Comfort safety couplings from AIRCRAFT as the first manufacturer to be used in series production
    • Two separate locking systems for maximum working safety
    • Dangerous whipping of the hose line is prevented

    Comfortable and safe to transport and set up

    • Ergonomically extended handle for comfortable transport in an almost upright position - strain on the back due to lifting is avoided
    • Puncture-proof PU foam wheels and stable steering chassis with parking brake allow easy transport
    • The parking brake prevents both turning and rolling movement of the wheels and ensures optimal standing of the compressor
    • Practical second transport handle on the boiler, which facilitates carrying the compressor

    High quality boiler with durable rust protection

    • AIRCRAFT is the first manufacturer to equip the AIRPROFI series compressors with hot-dip galvanized tanks inside and outside as standard
    • AIRPROFI series boilers therefore come with a 15-year warranty against rust-through.



    Compressed air tank
    Maximum pressure10 bar
    Pressure vessel capacity100 l
    Compressor
    Compressor systemHOS
    Suction capacity approx.510 l/min
    Filling capacity approx.400 l/min
    Explanation filling capacityat 6 bar working pressure
    Number of cylinders2
    Number of compressor stages1
    Dimensions and weights
    Length approx.1275 mm
    Width/depth approx.480 mm
    Height approx.925 mm
    Weight approx.76 kg
    Electrical Data
    Delivery power3 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Noise emission
    Sound power level Lw93 dB(A)
    Explanation sound power level LwSound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
    VPE1
    Unit: pc(s).
    Packaging unit: 1

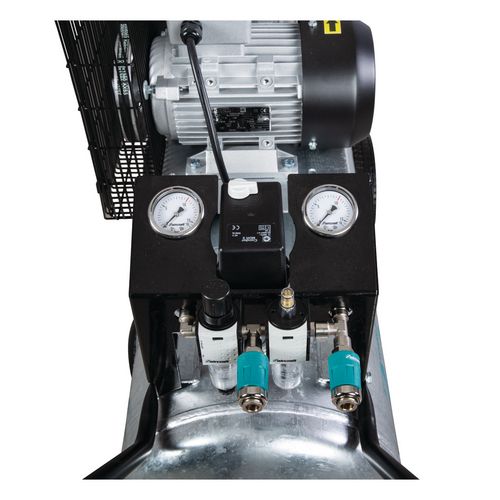

    • Two comfort safety couplings
    • One ball valve



    Pressure regulationFilter pressure regulator
    Automatic pressure switchCONDOR
    Drive transmissionV-belt
    Material compressed air lineFlexible armored conduit with heat protection
    Compressed air treatmentFilter pressure regulator, mist lubricator
    Compressed air outletTwo comfort safety couplings, one ball valve
    Pressure vesselHot-dip galvanized inside and out with fifteen-year warranty against rust-through
    Compressor baseTwo wheels with PU foam tires, two swivel castors with locking brake
