| Compressed air tank | |
|---|---|
| Maximum pressure | 13(15) bar |
| Pressure vessel capacity | 270 l |

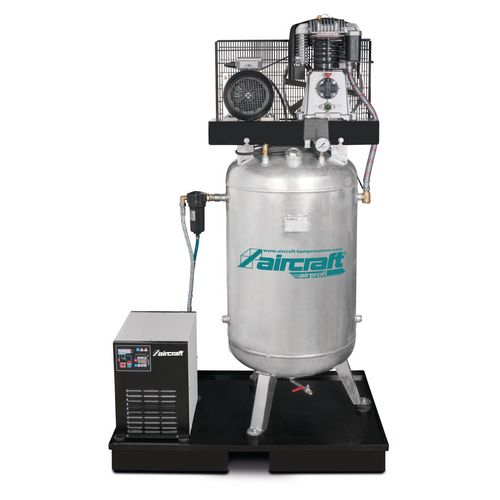

Stationary piston compressor (15 bar)
AIRPROFI 753/270/15 VK
Stationary compressors with stationary or horizontal tank, for an operating pressure above 10 bar
4.959,00
EUR excl. Tax / pc(s).
5.901,21 EUR incl. 19% Tax / pc(s).
5.901,21 EUR incl. 19% Tax / pc(s).
Promotional price *
4.499,00 EUR excl. Tax / pc(s).5.353,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 2024852K
Are you interested in this product?
Put a request
Find Trader
Productdetails
- The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run
- Large fan ensures optimal cooling
- Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation
- High quality electric motor with high torque
- Electric motor equipped with motor protection switch
- Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
- Flexible armored hose line with heat protection prevents vibration breakage
- High-quality CONDOR pressure switch as standard
- From 7.5 kW as standard with star-delta switch with operating hours counter
- Ready for connection with all fittings
Additional equipment K-version:
- Refrigerated dryer with integrated automatic steam trap for dry compressed air, longer service life of compressed air tools and avoidance of disturbances in pneumatic controls
- Fine filter for separating condensate and solid impurities with particles up to 1 μ in front of the refrigeration dryer
Equipment
- Automatic steam trap on the compressed air tank
- No unnecessary pressure loss
- Condensate conditioner for oil-water separation
- Important notes on condensate treatment can also be found in the section on compressed air preparation.
- Fine filter for separating condensate and solid impurities with particles up to 1 μm
- Compressed air quality according to ISO 8573-1
- As a pre-filter in front of the refrigeration dryer
- Refrigerated dryer with integrated automatic steam trap
- Pressure dew point at 5 °C, ambient temperature 25 °C, atmospheric dew point at -22 °C
| Compressor | |
|---|---|
| Compressor system | HOS |
| Suction capacity approx. | 750 l/min |
| Filling capacity approx. | 525 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 2 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1200 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1970 mm |
| Weight approx. | 194 kg |
| Electrical Data | |
|---|---|
| Delivery power | 5.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 82 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Two-stage compression two-cylinder high-performance unit
- Refrigerated dryer with integrated automatic steam trap
- Toothed drive belts
- Automatic CONDOR pressure switch
- 1 pressure gauge for tank pressure
- 1 ball valve on the boiler
- Flexible armored hose line with heat protection
- Internally and externally hot-dip galvanized compressed air tank
- 1x 3/8 inch ball valve at the lower tank outlet for drainage
- Three compressed air extraction points on the boiler
- safety valve
- Ready for connection with all fittings
- Shock mounts
- Security booth range
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | CONDOR |
| Drive transmission | V-belt |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air treatment | Fine filter, refrigeration dryer AD 36 |
| Compressed air outlet | 1/2 inch air outlet on refrigeration dryer |
| Condensate drain | 3/8" ball valve on each tank, automatic condensate drain in refrigeration dryer |
| Pressure vessel | Hot-dip galvanized inside and out with fifteen-year warranty against rust |
| AD 2000 compliant | Yes |
| Compressor base | Swing elements, safety stand pallet |
