| Compressed air tank | |
|---|---|
| Maximum pressure | 13 bar |
| Pressure vessel capacity | 150 l |
| Explanation Pressure vessel capacity | 2 x 75 l |
| Tank surface | Galvanised |

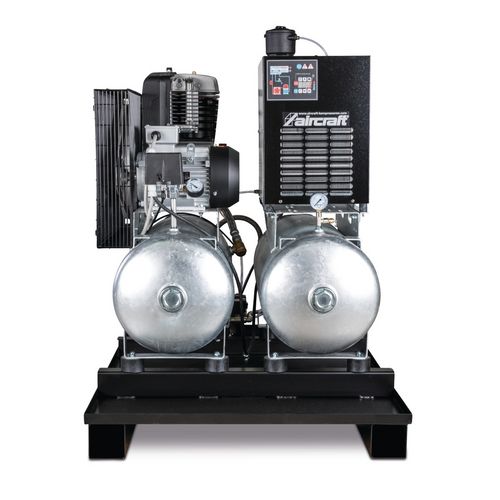

Stationary piston compressor
AIRPROFI DUO 703 / 2x75 / 13 KK
Universal compressed air station with 2 x 75 liter compressed air tanks ready mounted on a safety stand pallet, space-saving, transportable
4.899,00
EUR excl. Tax / pc(s).
5.829,81 EUR incl. 19% Tax / pc(s).
5.829,81 EUR incl. 19% Tax / pc(s).
Promotional price *
4.539,00 EUR excl. Tax / pc(s).5.401,41 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 2023187
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Two-stage high-performance 2-cylinder engine with gray cast iron cylinder block
- Low speed for quiet, low-vibration operation and long life
- Large fan for optimum performance Cooling
- High-quality electric motors equipped with motor protection switch
- With phase inverter for easy manual reversal of the direction of rotation
- Intermediate and aftercooler reduce condensation
- Maintenance block with two pressure gauges for tank pressure and working pressure and high-quality CONDOR pressure switch
- Fully automatic on-off operation
- Ready for connection with all fittings
- Fifteen-year rust-proofing on inside and out external hot-dip galvanized compressed air tank
You will receive the 3-year Stürmer warranty for this item when you register online.
| Compressor | |
|---|---|
| Compressor system | HOS |
| Suction capacity approx. | 575 l/min |
| Filling capacity approx. | 460 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 2 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1200 mm |
| Width/depth approx. | 900 mm |
| Height approx. | 1140 mm |
| Weight approx. | 230 kg |
| Electrical Data | |
|---|---|
| Motor output power | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | No |
| Sound pressure level Lp | 79 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
| VPE | 1 |
| Sicherheits- und Warnhinweise | |
| Safety and warning notices |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Refrigerated dryer with integrated automatic steam trap
- Automatic steam trap on the compressed air tank
- fine filter
- Condensate conditioner for oil-water separation
- Two-stage compression two-cylinder high-performance unit
- Automatic CONDOR pressure switch
- 2 x inside and outside hot-dip galvanized compressed air tank
- ZÜS type tested
- 1 pressure gauge for tank pressure
- 1x 3/4 inch air outlet on the boiler
- 1x 1/2 inch air outlet on the refrigerant dryer
- Power cable with 400 V plug
- Power plug with phase inverter for manual reversal of the direction of rotation
- Flexible reinforced hoses with heat protection
- safety valve
- Shock mounts
- Ready for connection with all fittings
- On safety stand
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | CONDOR |
| Drive transmission | V-belt |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air treatment | Fine filter. refrigeration dryer |
| Connector | 400V CEE plug with phase inverter |
| Condensate drain | Automatic steam trap AMD at the vessel. automatic steam trap in the refrigeration dryer |
| Compressed air outlet | 1/2 inch air outlet on refrigeration dryer |
| Pressure vessel | Hot-dip galvanized inside and out with fifteen-year warranty against rust |
| Compressor base | Swing elements. safety stand pallet |
