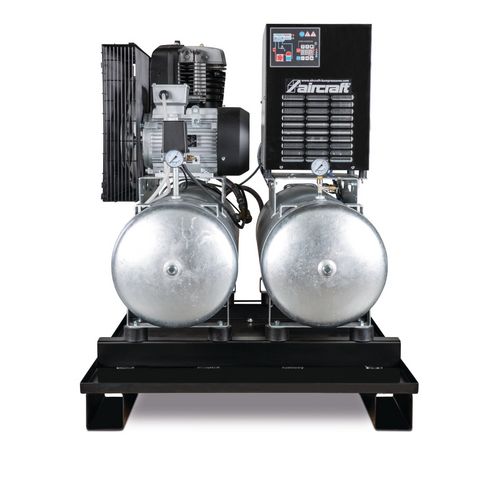

Brandimage to Product AIRPROFI DUO 853 / 2x100 / 10K

Stationary piston compressor with 2x 100 liter compressed air tanks and refrigeration dryer

AIRPROFI DUO 853 / 2x100 / 10K

Universal compressed air station with 2 x 100 L compressed air tanks ready mounted on a safety stand pallet, space-saving and transportable

4.449,00 EUR excl. Tax / pc(s).
5.294,31 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2023086

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Two-stage compression 2-cylinder high-performance unit with cast iron cylinder block
    • The low speed ensures quiet, low-vibration operation and a long service life
    • Large fan wheel for optimal cooling
    • High quality electric motor with high torque
    • Electric motor equipped with motor protection switch
    • With phase inverter for easy manual reversal of the direction of rotation
    • Intermediate and aftercooler reduces the formation of condensation
    • Maintenance block with two pressure gauges for tank pressure and working pressure and high quality CONDOR pressure switch
    • Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
    • Fully automatic on-off operation
    • Ready for connection with all fittings


    Increased flexibility


    • By connecting the second compressed air tank, the container volume is doubled, whereby a higher air supply can be established
    • An increased demand for air can thus be covered in the short term.
    • The second compressed air tank can be disconnected from the compressed air supply e.g. for chiselling or sandblasting. This halves the container volume and pressure builds up faster.


    Equipment details:

    • K version with refrigeration dryer with integrated automatic steam trap as standard
    • Pressure dew point 5 °C, compressed air inlet temperature 35 °C, cooling air temperature 25 °C

    • K version additionally with pre-filter for separating condensate and solid impurities with particles up to 1 μm
    • Compressed air quality according to ISO 8573-1
    • As a pre-filter in front of the refrigeration dryer

    • KK version with automatic steam trap on the compressed air tank
    • This condensate drainage without unnecessary pressure loss

    • Condensate conditioner for oil-water separation



    Compressed air tank
    Maximum pressure10 bar
    Pressure vessel capacity2 x 100 l
    Compressor
    Compressor systemHOS
    Suction capacity approx.850 l/min
    Filling capacity approx.680 l/min
    Explanation filling capacityat 6 bar working pressure
    Number of cylinders2
    Number of compressor stages2
    Dimensions and weights
    Length approx.1200 mm
    Width/depth approx.900 mm
    Height approx.1140 mm
    Weight approx.235 kg
    Electrical Data
    Delivery power5.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Noise emission
    Sound pressure level Lp83 dB(A)
    Explanation sound pressure level LpSound pressure level at 1 m distance according to DIN 45635 T 13
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Refrigerated dryer with integrated automatic steam trap
    • Two-stage compression two-cylinder high-performance unit
    • Automatic CONDOR pressure switch
    • 2 x inside and outside hot-dip galvanized compressed air tank /li>
    • ZÜS type tested
    • 1 pressure gauge for tank pressure
    • 1x 3/4 inch air outlet on the boiler
    • 1x 1/2 inch air outlet on the refrigerant dryer
    • Flexible reinforced hoses with heat protection
    • safety valve
    • Shock mounts
    • Ready for connection with all fittings
    • On safety stand



    Automatic pressure switchCONDOR
    Drive transmissionV-belt
    Material compressed air lineFlexible armored conduit with heat protection
    Compressed air treatmentFine filter, refrigeration dryer
    Compressed air outlet1/2 inch air outlet on refrigeration dryer
    Condensate drain3/8" ball valve on each tank, automatic condensate drain in refrigeration dryer
    Pressure vesselHot-dip galvanized inside and out with fifteen-year warranty against rust
    ZÜS testedTesting before commissioning can also be carried out by a qualified person
    Compressor baseSwing elements, safety stand pallet
