| Drain off quantity max. (short-term) | 12 l/h |
| Explanation drain off quantity max. | at 7 bar |
| Compressor output | 7.4 m³/min |
| Dryer performance | 14.9 m³/min |
| Filter performance | 74.4 m³/min |
| Operating pressure | 0 – 16 bar |
| Operating temperature | +1.5 – +65 °C |
| Condensate feed | G½ " |
| Condensate outlet | hose connector, hose Ø = 8 mm (inside) |
| VPE | 1 |

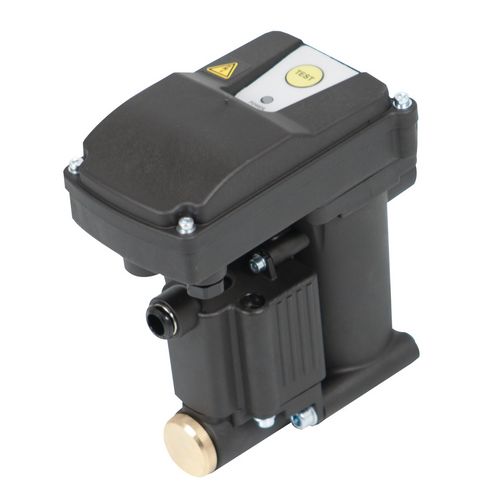

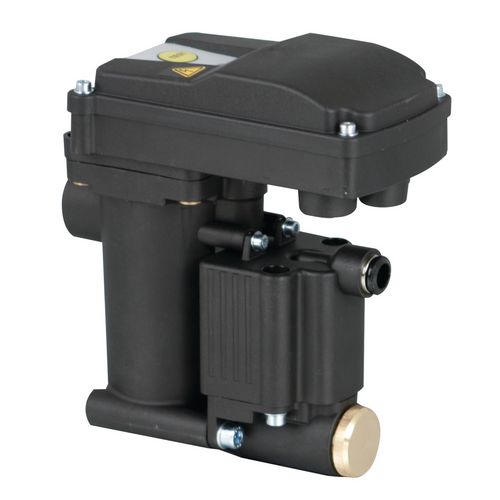

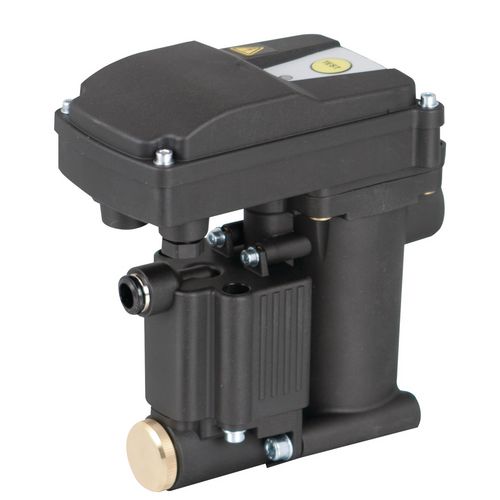

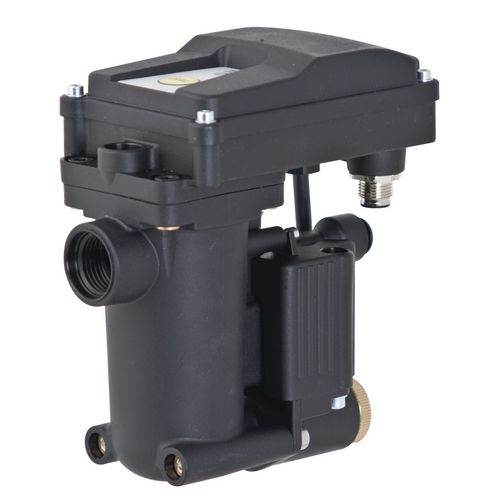

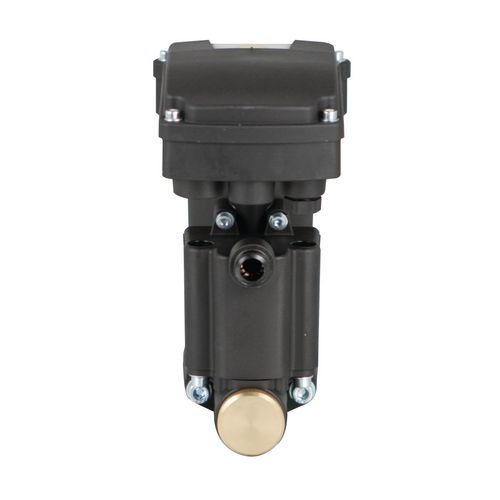

Condensate drain (electronic)
AMD
With patented valve technology
110,90
EUR excl. Tax / pc(s).
131,97
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2059080
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For fully automatic removal of condensate or other non-aggressive fluids from the compressed air system
- A capacitive sensor detects the level of the condensate. This is very accurate and requires no mechanical floats and contacts.

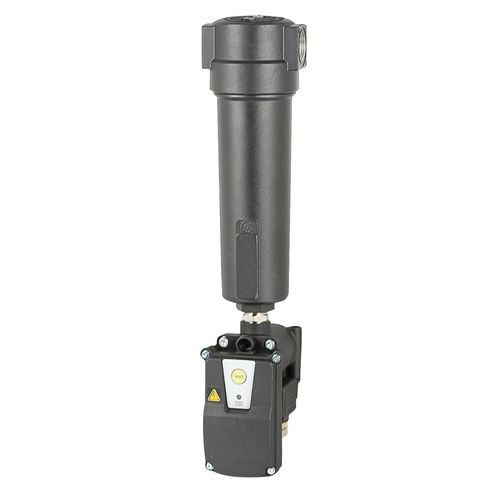

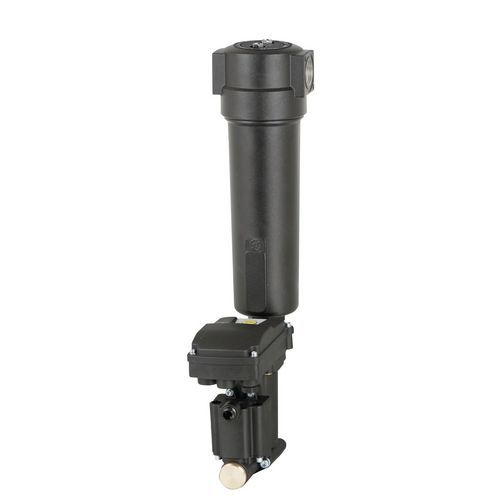

- For installation as external arresters on reciprocating or screw compressors, aftercoolers, cyclone separators, compressed air boilers, compressed air dryers and compressed air filters
- Equipped as standard with a factory alarm, LED indicator, test button and integrated sieve
- On request also version with service network for setting the diagnostic parameters and an alarm output available
function Description
- The condensate is collected in the collection reservoir.
- If the level is high enough, the condensate is discharged from the system without loss of air
- Liquid level is detected by a precise capacitive liquid level sensor
- The special self-cleaning, direct-acting valve ensures reliable operation
The advantages at a glance

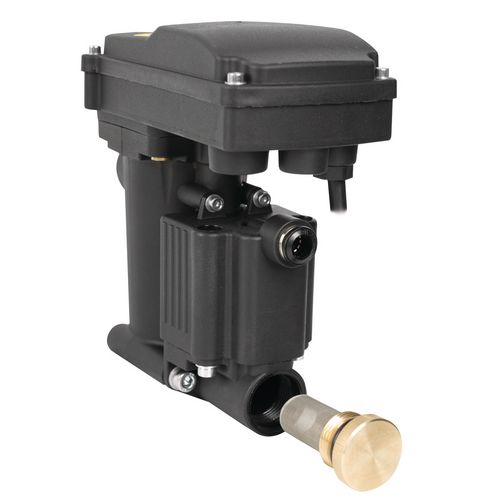

- Integrated sieve (easy access / cleaning)
- Compact design
- Patented valve technology - direct acting, self-cleaning valve
- Optimized for easy service (maintenance kit)
- Horizontal or vertical installation possible
- Robust PA housing
- Including 2 meters connection cable with Schuko plug
| Dimensions and weights | |
|---|---|
| Length approx. | 133 mm |
| Width/depth approx. | 76 mm |
| Height approx. | 147 mm |
| Weight approx. | 0.55 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
