Hot Water Pressure Washer

HDR-H 90-20

High-quality and powerful with a maximum pressure of 200 bar and a water temperature of up to 110 °C

3.619,00 EUR excl. Tax / pc(s).
4.306,61 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 7150902

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Working pressure and water temperature adjustable for adaptation to the respective cleaning task
    • Heating of the water by diesel combustion
    • Cold water operation possible
    • Steam stage for removing stubborn dirt without chemical additives
    • Total-Stop pump control: Delay-free start and stop of the pump motor when opening and closing the gun

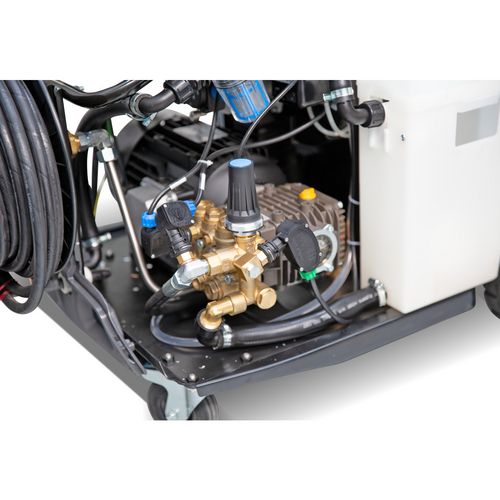

    • Triplex pump with ceramic piston and connecting rod system with brass pump head
    • Suction of detergent from external tank possible through supplied hose
    • Effective protection against limescale due to anti-limescale device
    • Practical holders for jet pipe and mains cable
    • Easy to manoeuvre thanks to ergonomic handles, two large wheels and two swivel castors with locking brake
    • Crane eye for easy loading and transport
    • Quality - Made in Europe
    • Two years warranty



    • Powerful and slow-running 4-pole engine
    • Calcification protection device
    • Quality Made in Europe



    Max. operating pressure185 bar
    Max. pressure190 bar
    Operating time, recommended max.16 h/week
    Max. volume flow840 l/h
    Max. temperature110 °C
    FuelPetrol
    VPE1
    Dimensions and weights
    Length approx.950 mm
    Width/depth approx.620 mm
    Height approx.850 mm
    Weight approx.128 kg
    Electrical Data
    Absorbed power drive motor6.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Tank(s)
    Fuel tank volume18 l
    Fuel consumption5.6 l/h
    Cleaning agent tank valume3.5 l
    Anti-lime equipment tank volume2.5 l
    Unit: pc(s).
    Packaging unit: 1

    • Trigger gun
    • Lance
    • Flat jet nozzle 25 °

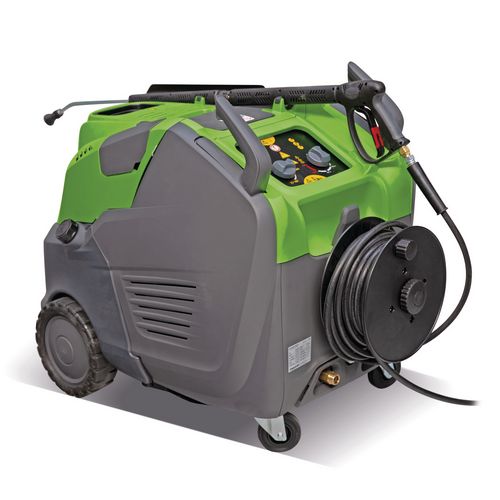

    • Hose reel including high pressure hose 15 m
    • Flame control record



    Motor4-pole, slow-speed

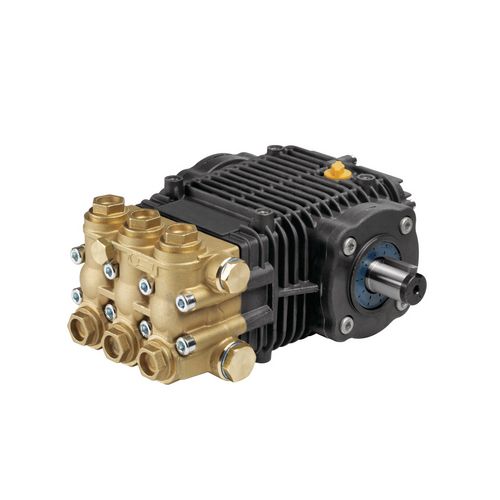

    PumpThree-piston axial pump with brass head
    Pump controlTotal Stop Timed
    Detergent tank3.5 l
    Limescale protection tank2.5 l

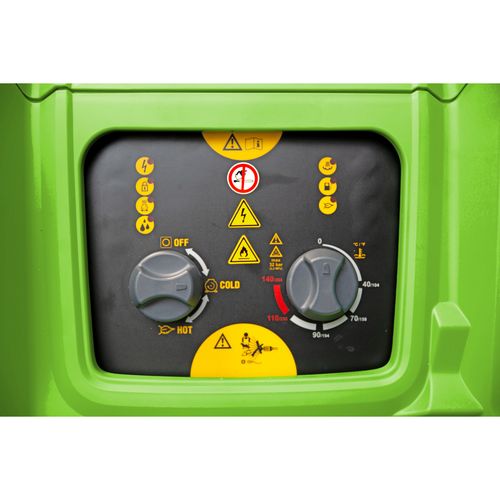

    Water temperature can be regulated
    Cold water operation supported
    Operating pressure can be regulated
    High pressure hose15 m
    Carriage/transport equipment2 large wheels, 2 casters with parking brake, rigid handles, crane bracket
