| Dimensions and weights | |
|---|---|
| Length approx. | 700 mm |
| Width/depth approx. | 270 mm |
| Height approx. | 490 mm |
| Weight approx. | 101 kg |

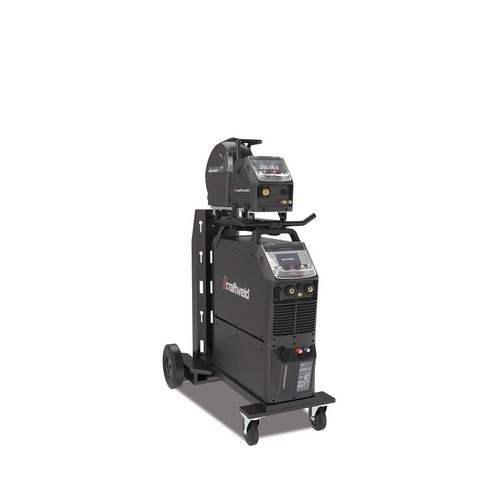

Stepless, synergic MIG/MAG welding machine
CRAFT-MIG.PRO 353 WS Synergic
Robust industrial series - made for heavy-duty use
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1361160
Are you interested in this product?
Put a request
Find Trader
Productdetails
- High duty cycle of 60% at maximum power ensures longer welding times without overheating, ideal for large projects
- State-of-the-art inverter technology in modular design ensures maximum reliability combined with maximum efficiency
- Synergy curves for steel, stainless steel and aluminum - 3 steps to the perfect result
- Adjustable choke enables precise adjustment of the arc characteristics
- LCD display for simple and precise setting of welding parameters
- Sophisticated cooling system with encapsulated air duct for efficient heat dissipation ensures stable welding performance even in the toughest applications
- Suitable for use on the generator
- Note: Machine is supplied without accessories
- High duty cycle of 60% at maximum power ensures longer welding times without overheating, ideal for large projects
- State-of-the-art inverter technology in modular design for maximum reliability combined with maximum efficiency
- Synergy characteristics for steel, stainless steel and aluminum - 3 steps to the perfect result
- Adjustable choke enables precise adjustment of the arc characteristics
- Suitable for use on generators
| Duty cycle | |
|---|---|
| Duty cycle at Imax. 40°C | 60 % |
| Current at 60% DC 40°C | 350 A |
| Current at 100% DC 40°C | 270 A |
| Electrical connections | |
|---|---|
| Input current | 24 kVA |
| Power consumption in idle mode | 24 W |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50/60 Hz |
| Feed rollers | |
|---|---|
| Diameter | 1.0 / 1.2 mm |
| Input | |
|---|---|
| MIG/MAG | 12.3 kVA |
| Electrode | 13.4 kVA |
| TIG DC | 9.6 kVA |
| Efficiency | 90.7 % |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Setting range | |
|---|---|
| TIG DC | 10 – 350 A |
| Electrode | 10 – 350 A |
| MIG soldering | 30 – 350 A |
| Standards and certifications | |
|---|---|
| EMC class | A |
| Marking | CE |
| Wire feed | |
|---|---|
| weldable wires steel from to | 0.8 – 1.2 mm |
| weldable wires stainless steel from to | 0.8 – 1.2 mm |
| weldable wires aluminium from to | 1.0 – 1.2 mm |
| weldable wires CuSi | 1.0 mm |
| weldable wires flux core wire from to | 0.9 – 1.2 mm |
| Wire feet unit | 4 Rollers |
| Speed from to | 1,5 – 24 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Gas hose 4 m
- Trolley
| Process MIG/MAG | ✔ |
| Process MMA | ✔ |
| 2-stroke/4-stroke switching | 2T/4T |
| Spot welding | Spot |
| Adjustable choke | 0 – 10 |
| Operating display | LCD |
| Overload indicator | √ |
