| Dimensions and weights | |
|---|---|
| Length approx. | 630 mm |
| Width/depth approx. | 240 mm |
| Height approx. | 420 mm |
| Weight approx. | 20 kg |

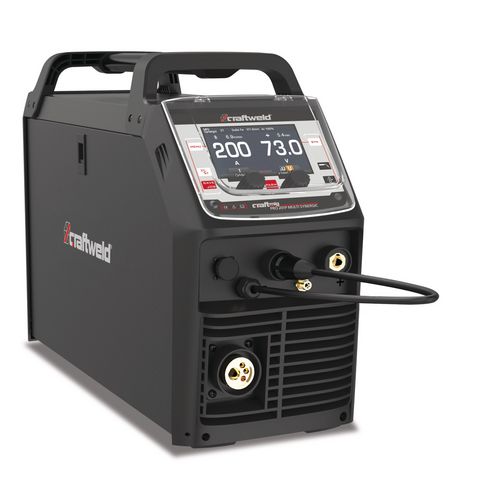

Stepless, synergic MIG/MAG welding machine
CRAFT-MIG.PRO 201P Multi Synergic
4 in 1 system - MMA, MIG/MAG, TIG AC/DC, TIG DC - Ideal machine for every assembly vehicle
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1361145
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ideal assembly welding machine - combines all processes in one device: MMA (AC & DC), MIG/MAG, TIG (AC/DC / DC)
- MIG / MAG with synergy characteristics - 3 steps to the finished welding result
- Combines all the functions of our CRAFT-TIG PRO 201 AC/DC P Pulse incl. spot function and pulse
- Extremely simple operation via high-resolution color display with graphic illustration of the welding curve and setting options
- PFC control ensures even current consumption and maximum efficiency
- Note: Machine supplied without accessories except for gas hose
- Pulse function ideal for thin sheets and work requiring high precision
- Inverter technology with stable welding current enables work with different material thicknesses
- Automatic voltage adjustment for stable operation
- Suitable for use on the generator
| Duty cycle | |
|---|---|
| Duty cycle at Imax. 40°C | 30 % |
| Current at 60% DC 40°C | 140 A |
| Current at 100% DC 40°C | 110 A |
| Electrical connections | |
|---|---|
| Input current | 26.8 A |
| Electrical Data | |
|---|---|
| Supply voltage | 110/230 V |
| Mains frequency | 50/60 Hz |
| Feed rollers | |
|---|---|
| Diameter | 0.8 / 1.0 mm |
| Input | |
|---|---|
| MIG/MAG | 6.2 kVA |
| Electrode | 7 kVA |
| TIG DC | 5.1 kVA |
| Efficiency | 80 % |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Setting range | |
|---|---|
| TIG DC | 10 – 200 A |
| Electrode | 10 – 200 A |
| MIG soldering | 30 – 200 A |
| Standards and certifications | |
|---|---|
| EMC class | A |
| Marking | CE |
| Wire feed | |
|---|---|
| weldable wires steel from to | 0.6 1.0 mm |
| weldable wires stainless steel from to | 0.8 1.0 mm |
| weldable wires aluminium from to | 0.8 – 1.0 mm |
| weldable wires CuSi from to | 0.8 – 1.0 mm |
| weldable wires flux core wire from to | 0.8 – 1.0 mm |
| Wire feet unit | 1 Roll |
| Speed from to | 1.5 – 16.5 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Gas hose 4 m
| Process MIG/MAG | ✔ |
| Process MMA | ✔ |
| 2-stroke/4-stroke switching | 2T/4T |
| Spot welding | Single Spot |
| Interval welding | Multi Spot |
| Adjustable choke | 0 – 10 |
| Operating display | LCD |
| Temperature controlled fan | √ |
