Stepless, synergic MIG/MAG welding machine

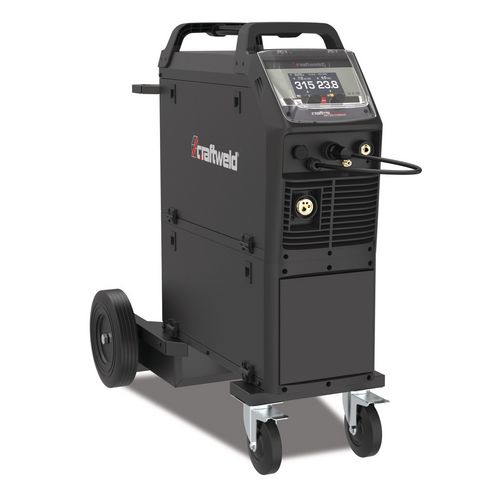

CRAFT-MIG.PRO 323 Synergic
Universally applicable workshop machine - Infinitely variable
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1361155
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Synergy characteristics - 3 steps lead to the perfect welding result
- Adjustable throttle enables precise adjustment of the welding characteristics

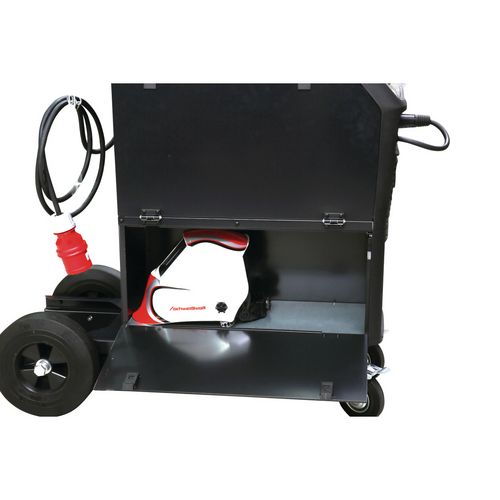

- Robust trolley with large storage space for gas cylinders and accessories facilitates the transport and organization of tools directly at the place of use
- Can hold both 10 l cylinders and up to 50 l gas cylinders
- State-of-the-art inverter technology ensures precise welding and a uniform arc with maximum efficiency
- User-friendly LCD display enables precise setting of welding parameters
- Overheating protection and voltage monitoring ensure safe working conditions
- Suitable for use on generators
- Note: Machine is supplied without accessories
- Modern inverter technology for precise welding and a uniform arc, even with fluctuating power sources
- Suitable for use on generators
- Integrated water cooling for optimum temperature control
- Robust chassis and spacious housing with plenty of room for gas cylinders and accessories
| Dimensions and weights | |
|---|---|
| Length approx. | 960 mm |
| Width/depth approx. | 470 mm |
| Height approx. | 940 mm |
| Weight approx. | 51,5 kg |
| Duty cycle | |
|---|---|
| Duty cycle at Imax. 40°C | 40 % |
| Current at 60% DC 40°C | 260 A |
| Current at 100% DC 40°C | 200 A |
| Electrical connections | |
|---|---|
| Input current | 22.5 A |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50/60 Hz |
| Feed rollers | |
|---|---|
| Diameter | 0.8 / 1.0 mm |
| Input | |
|---|---|
| MIG/MAG | 10.4 kVA |
| Electrode | 8.4 kVA |
| TIG DC | 7.5 kVA |
| Efficiency | 89 % |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Setting range | |
|---|---|
| TIG DC | 10 – 300 A |
| Electrode | 10 – 250 A |
| MIG soldering | 30 – 315 A |
| Standards and certifications | |
|---|---|
| EMC class | A |
| Marking | CE |
| Wire feed | |
|---|---|
| weldable wires steel from to | 0.6 – 1.2 mm |
| weldable wires stainless steel from to | 0.8 – 1.2 mm |
| weldable wires aluminium from to | 1.0 – 1.2 mm |
| weldable wires CuSi | 1.0 mm |
| weldable wires flux core wire from to | 0.8 – 1.2 mm |

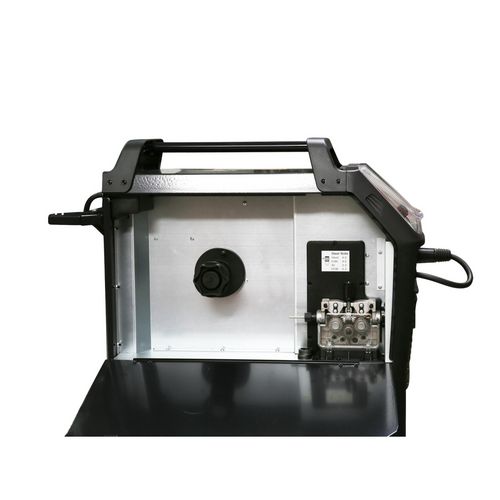

| Wire feet unit | 4 Rollers |
| Speed from to | 1.5 – 24 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Gas hose 4 m
| Process MIG/MAG | ✔ |
| Process MMA | ✔ |
| 2-stroke/4-stroke switching | 2T/4T |
| Adjustable choke | 0 – 10 |
| Operating display | LCD |
| Overload indicator | √ |
