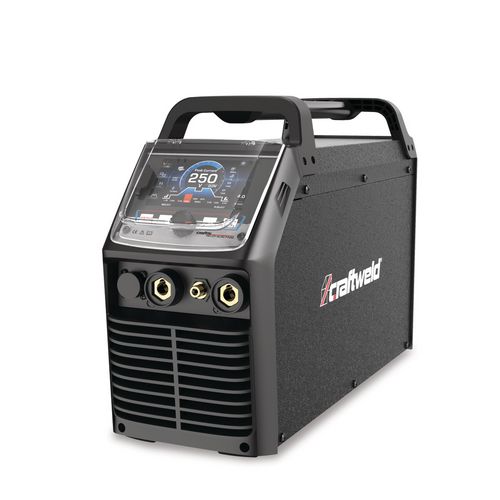

CRAFT-TIG PRO 231 AC/DC P Pulse

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 1364231

Are you interested in this product?

Put a request

Find Trader

Productdetails

Basic Features

Sheet thicknesses

Base materials

Description

PFC Technology (Power Factor Correction): High power factor of over 0.99 for energy-efficient operation and reduced mains load
Dual-Voltage Operation: Flexible use with single-phase current at 110 V and 230 V
SiC Inverter Technology: Modern silicon carbide modules for stable arc, high reliability, and low switching losses
Extensive Welding Modes: Supports Lift-TIG, HF-TIG, TIG MIX, Lift-TIG SYN, HF-TIG SYN, MMA, and MMA SYN
SYN Welding Programs: Predefined parameters for TIG and MMA simplify operation and reduce setup effort and time
TIG AC+DC (TIG MIX): Switching between AC and DC increases heat input, improves penetration depth, and reduces electrode wear
AC Waveforms: 9 selectable waveforms (square, Sine, triangle) for optimal adaptation to different welding tasks
Dynamic arc control: Focused, stable arc for better root penetration and greater penetration depth

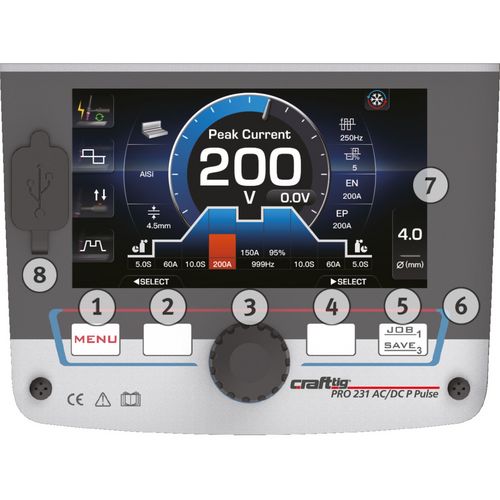

Color touchscreen: High-resolution, eye-friendly display with clear menu navigation, fast response, and precise settings
Job memory: 100 memory locations for welding parameters with fast save and load function
RGB status indicator: Dynamic light signal with red flashing in case of malfunctions for quick fault detection
Multilingual user interface: Support for multiple languages for easy operation
Integrated protection functions: Temperature, voltage, and current sensors ensure high operational safety
Torch control: Up/down buttons for current control directly on the torch
Rotary knob on the torch: Fine adjustment of the welding current directly on the handle

Device data
Pulse rate	0.5 999 Hz
Ignition	high frequency
Torch cooling	gas / water

Dimensions and weights
Length approx.	585 mm
Width/depth approx.	200 mm
Height approx.	365 mm
Weight approx.	16.2 kg

Duty cycle
at Imax. 40°C TIG DC	100 %
at Imax. 40°C electrode	100 %
Current at 100% DC 40°C TIG DC	230 A
Current at 100% DC 40°C electrode	200 A

Electrical connections
Power consumption in idle mode	< 50 W

Electrical Data
Total output	5.6/5.0 kVA
Input current TIG AC	26 A
Input current TIG DC	24.5 A
Input current electrode AC	27.3 A
Input current electrode DC	29 A
Supply voltage	230 V
Mains frequency	50/60 Hz

Electrode
Weldable electrodes	1.6 4.0 mm

Input
TIG AC	5.97 kVA
TIG DC	5.61 kVA
Electrode AC	6.26 kVA
Electrode DC	6.64 kVA
Efficiency	84.76 %

Setting range
TIG DC	5 230 A
Electrode	10 200 A

Standards and certifications
Standard	EN 60974-1:2012, EN 60974-10:2014
EMC class	A
Explanation EMC class	This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
Marking	CE

VPE


Sicherheits- und Warnhinweise
Safety and warning notices

Unit: pc(s).
Packaging unit: 1

Gas hose 4 m

Power factor correction	✔
Process TIG pulsing	✔

Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de

If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

Accessories

Water cooling unit

400 V / 4 l

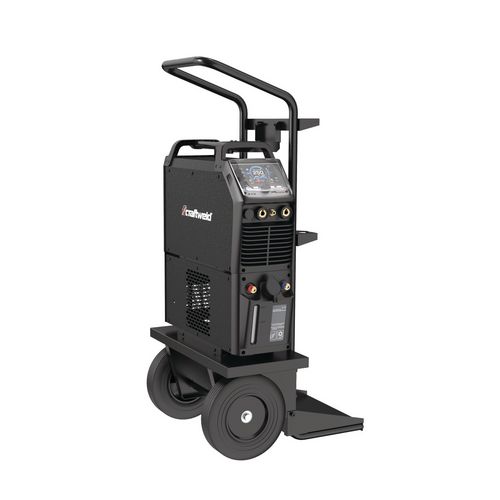

Trolley
