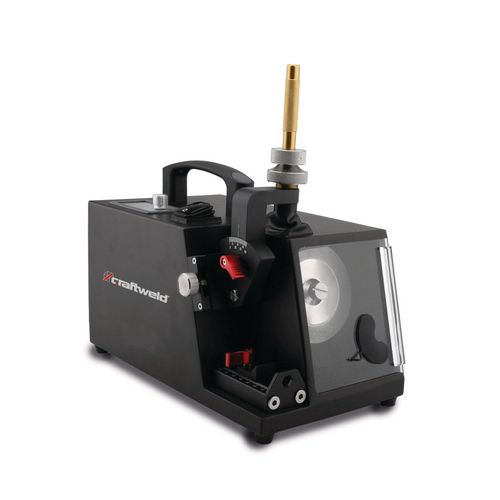

    Productimage for EG 6
    Brandimage to Product EG 6

    Electrode grinder

    EG 6

    Best welding results thanks to optimally ground tungsten electrodes

    499,00 EUR excl. Tax / pc(s).
    593,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 1372006

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • BRUSHLESS motor technology for greater efficiency, longer running time and maximum performance
    • For perfect grinding of tungsten electrodes with a diameter of 1.6 to 5 mm
    • Grinding angle infinitely adjustable from 10 to 60°
    • Horizontal adjustment of the electrode holder for even use of the sanding surface
    • Stop for setting the correct grinding length integrated in the device
    • Cutting function for shortening the tungsten electrodes
    • Infinitely adjustable speed for optimum adaptation to the electrode parameters
    • Improved motor with dual fan cooling for maximum performance and efficient cooling of the grinder
    • Precise grinding in longitudinal direction, resulting in better ignition properties, stable arc and longer service life
    • Clamping also possible with work gloves via smooth-running knurled screw



    • BRUSHLESS motor technology for greater efficiency, longer running time and maximum performance
    • For perfect grinding of tungsten electrodes with a diameter of 1.6 to 5 mm
    • Continuously adjustable grinding angle from 10 to 60°
    • Infinitely adjustable speed for optimum adaptation to the electrode parameters



    Electrode diameter1.6 5.0 mm
    Min. electrode length25 mm
    Grinding angle1 60 °
    Speed1000 – 8000 min¯¹
    Variable speedstepless
    Diamond disk diameter96 mm
    Grain size180
    VPE1
    Dimensions and weights
    Length approx.300 mm
    Width/depth approx.165 mm
    Height approx.240 mm
    Weight approx.5.7 kg
    Electrical Data
    Main motor0.15 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1







    Power supply cordH05RN-F
