| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 1270 mm |
| Max. cross cut width left from saw blade | 3200 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height 90° | 140 mm |
| Max. cutting height 45° | 99 mm |
| (Main) saw blade diameter | 400 mm |

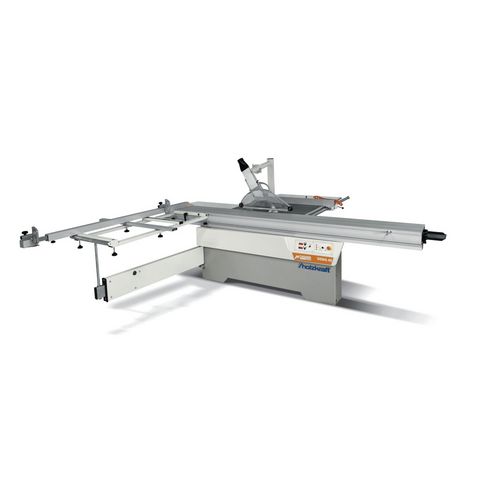

Sliding table saw
XENIA 40
With swiveling 400 mm saw blade and preheating device. M version with motorized height and angle adjustment of the saw blade.
From
13.490,00
EUR excl. Tax / pc(s).
From 16.053,10 EUR incl. 19% Tax / pc(s).
From 16.053,10 EUR incl. 19% Tax / pc(s).
Promotional price *
From 9.699,00 EUR excl. Tax / pc(s).From 11.541,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| Circular saw unit | Dimensions and weights | General | Price | Promotional price * | |||||
|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | (Main) saw blade speed (min¯¹) | Weight approx. (kg) | VPE | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| CASADEI XENIA 40 M | 5223440 | 3000 - 4000 - 5000 | 764 | 1 | 11.899,00 | 14.159,81 | |||
| CASADEI XENIA 40 M A | 5223441 | 3000 - 4000 - 5000 | 1602 | 1 | 15.999,00 | 19.038,81 | |||
| CASADEI XENIA 40 | 5223442 | 3700 | 661 | 1 | 9.699,00 | 11.541,81 | |||
Select Attributes
Circular saw unit
- (Main) saw blade speed
Dimensions and weights
- Weight approx.
General
- VPE
Price
- excl. Tax
- incl. 19% Tax
Promotional price
- excl. Tax
- incl. 19% Tax
Productdetails
- Sturdy cast steel construction warrantys precision, smooth running and durability

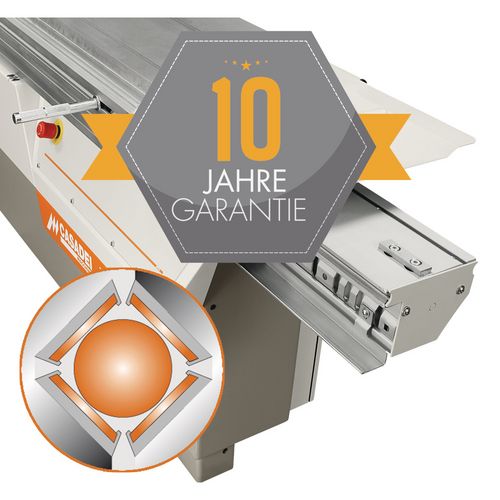

- Smooth-running and precise sliding table made of anodized aluminum with proven and permanently smooth-running ball contact system on hardened guides - 10-year warranty on wear of carbide guide ways
- Cast iron saw table
- Large support surfaces due to standard table extension and widening
- Folding rip fence manually adjustable with fine adjustment
- Angle-adjustable crosscut fence, extendable up to 3200 mm, with two folding stops
- Extension arm with material roller
- Xenia 40 M A: Round steel guide with diameter Ø 50 mm
- Lateral swing-away saw blade guard with integrated exhaust port
- M version with 3 saw blade speeds as standard

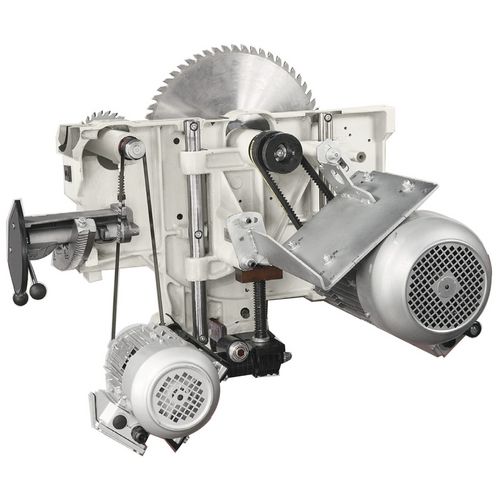

- Scoring unit with separate scoring motor

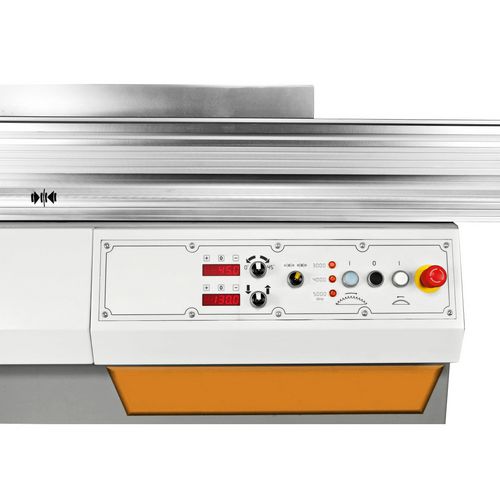

- XENIA 40: numerical display for saw blade tilting on the front of the machine
- Motorized version
- Speed main saw blade 3000/4000/5000 min¯¹
- Lifting, lowering and swiveling the saw unit
| Electrical Data | |
|---|---|
| Scoring blade motor output | 0.9 kW |
| Drive motor output | 7.0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 120 mm |
| Saw blade protection extraction port diameter | 80 mm |
| Pre-scoring unit | |
|---|---|
| Diameter saw blade | 120 mm |
| Saw blade speed | 8500 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Trimming frame length | 3200 mm |
Unit: pc(s).
