Sliding table saw

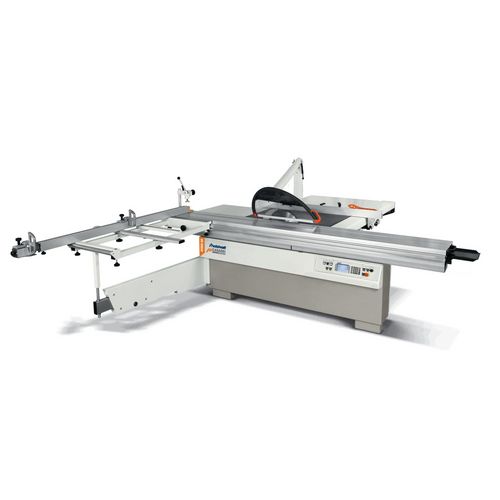

CASADEI Xenia 60/32 A

With high quality equipment for top quality work results

21.750,00 EUR excl. Tax / pc(s).
25.882,50 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5223502

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Stable steel gray cast iron construction
    • Large contact surfaces thanks to standard table extension and widening
    • Gray cast iron saw table
    • Laterally swiveling blade deflection protection with integrated extraction nozzle
    • Angle-adjustable crosscut fence, extendable up to 3200 mm, with two hinged stops
    • Boom with roll of material
    • Standard with three speeds
    • Scoring unit with separate scoring motor
    • High-performance industrial engines
    • Cutting width with rip fence 1270 mm
    • Automatic engine brake for main saw blade

    Casadei Xenia 60 A version:

    • With 4-axis electronic positioning for raising / lowering and swiveling the saw blade unit and lifting / adjusting the scoring unit
    • Possibility to save up to 300 programs

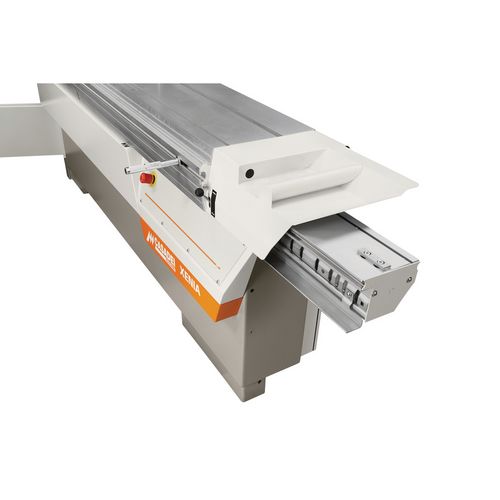

    Aluminum sliding carriage

    • Equipped with a million times proven ball contact system
    • Permanently smooth-running
    • Dust- and dirt-resistant due to minimal contact point between ball and trapezoidal rail
    • 10-year HOLZKRAFT warranty on guideway wear

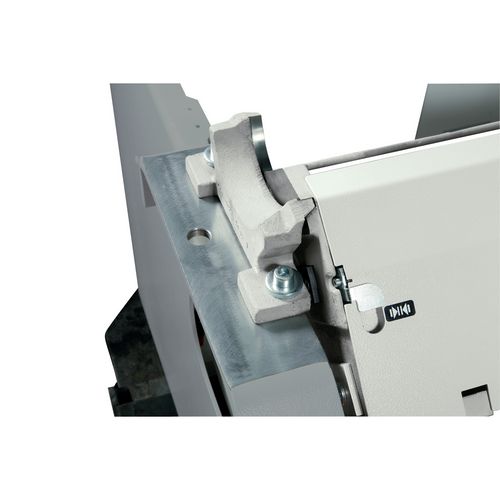

    Saw unit with swivel segment guide

    • Durable precision thanks to double swivel segment guide
    • 6 years of HOLZKRAFT warranty on wear of swivel segments


    Circular saw unit
    Max. cutting width with rip fence1500 mm
    Max. cross cut width left from saw blade3200 mm
    Saw blade angle90 – 45 °
    Max. cutting height 90°140 mm
    Max. cutting height 45°99 mm
    Explanation to: Max. cutting heightIndependent of the scoring unit
    (Main) saw blade diameter400 mm
    Explanation to: (Main) saw blade diameterIndependent of the scoring unit
    (Main) saw blade speed3000 - 4000 - 5000 min¯¹
    Electrical Data
    Scoring blade motor output0.9 kW
    Drive motor output9.0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter bottom120 mm
    Saw blade protection extraction port diameter100 mm
    Pre-scoring unit
    Diameter saw blade120 mm
    Saw blade speed8500 min¯¹
    Sliding carriage and table
    Trimming frame length3200 mm
    Unit: pc(s).
    Packaging unit: 1

    • Parallelogram blade guard
    • Boom with roll of material
    • Crosscut with 2 hinged stops
    • Saw-rip fence, hinged
    • Sliding slides 2600 or 3200 or 3800 mm
    • table extension
    • eccentric clamping
    • Handle for sliding carriage
    • Scoring unit
    • table extension
    • Automatic star-delta starting for main motor


    Scoring saw unit
    Anodised aluminium sliding sizing carriage
    Handle for sliding carriage
    Material roll on claming frame
    StopsProfessional folding stops
    Clamp sleigh
    Eccentric clamp
    Table broadening
    Table lengthening
    Saw blade pendulum protection

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
