| Dimensions and weights | |
|---|---|
| Length approx. | 1300 mm |
| Width/depth approx. | 720 mm |
| Height approx. | 1010 mm |
| Weight approx. | 210 kg |
Surface and thickness planer

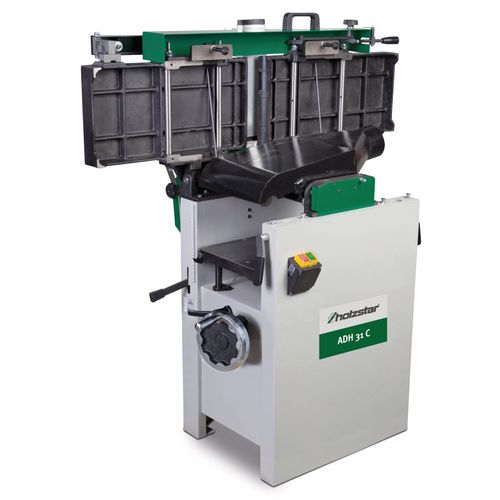

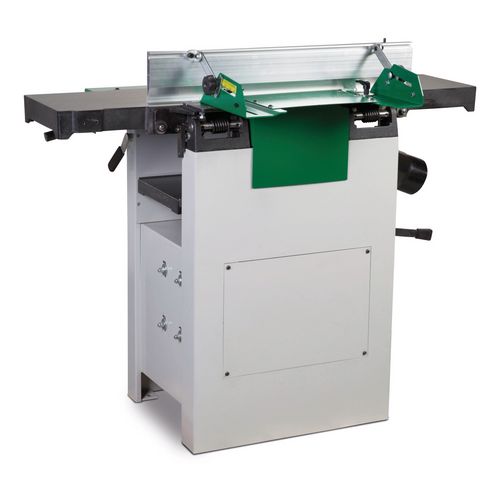

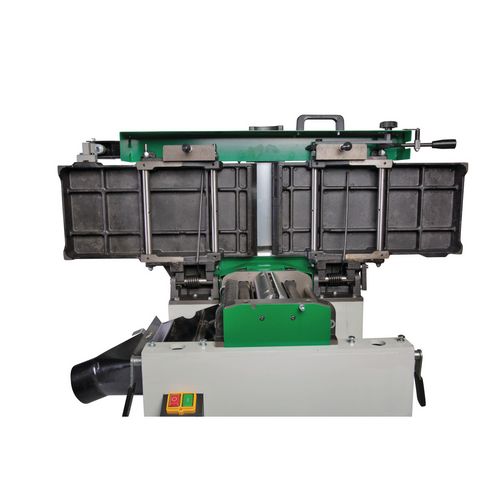

ADH 31C Spiral (230 V)
2.789,00
EUR excl. Tax / pc(s).
3.318,91 EUR incl. 19% Tax / pc(s).
3.318,91 EUR incl. 19% Tax / pc(s).
Promotional price *
2.169,00 EUR excl. Tax / pc(s).2.581,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 5904033
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Simple and precise adjustment of chip removal for dimensionally accurate thickness planing
- Automatic workpiece feed
- Straight-toothed feed roller and rubber-coated pull-out roller for even feed without damaging the workpiece</ li>
- Easily adjustable aluminium planing stop, tiltable from 90° to +45°
- Large planing table made of ribbed die-cast aluminium
- Large thickness table made of grey cast iron with ground surface
- Integrated, foldable chip extraction hood
This item comes with a 3-year Stürmer warranty when registered online.
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 2.84 kW |
| Output power | 2.2 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter thickness | 100 mm |
| Extraction port diameter joints | 100 mm |
| Feed | |
|---|---|
| Speed | 7 m/min |
| Jointing | |
|---|---|
| Max. cutting depth | 3 mm |
| Planing stop pivoting range | 90 45 ° |
| Planing knife shaft | |
|---|---|
| Type | Spiral planer cutterblock |
| Number of planing blades | 56 |
| Speed | 5200 min¯¹ |
| Max. planing width | 308 mm |
| Thickness | |
|---|---|
| Working height min. | 5 mm |
| Working height max. | 225 mm |
| Max. cutting depth | 3 mm |
| VPE | 1 |
| Sicherheits- und Warnhinweise | |
| Safety and warning notices |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
