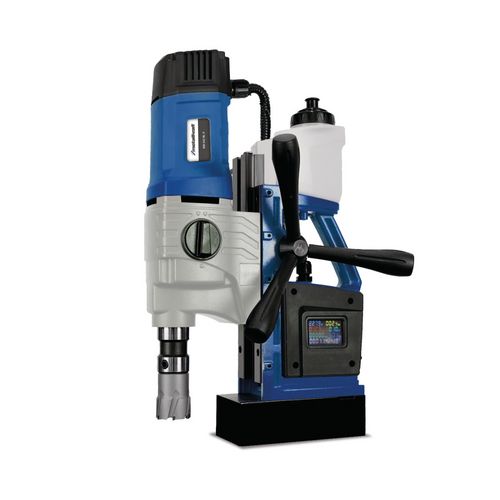

    Magnetic drilling machine

    MB 502 BL-V

    Universally applicable for drilling, tapping, reaming and countersinking

    759,00 EUR excl. Tax / pc(s).
    903,21 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 3866052

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • BRUSHLESS motor:Brushlessmotor for higher energy efficiency, lower maintenance requirements and maximum service life
    • Soft start:Controlled, material-friendly start reduces mechanical stress, protects the motor and gearbox and increases precision and work safety
    • Electronic speed control:Stepless, electronic speed control for optimum adaptation to different materials and applications
    • Digital machine monitoring: Integrated display shows all relevant parameters such as voltage, current, real-time power, power factor, mains frequency, start-up time, power consumption and motor temperature

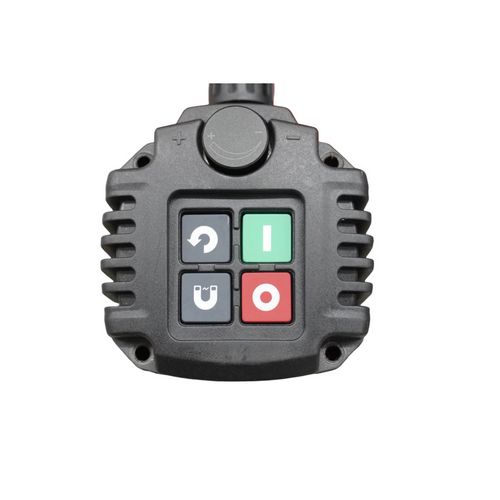

    • Ergonomic operating concept: LED silicone buttons in the visible area for intuitive, confusion-free operation
    • Magnetic holding force display: Visual control of the holding force for maximum safety during magnetic holding
    • Gear variants: Models with 1/ 2 or 3-speed gearbox for different torque and speed requirements
    • Left/right rotation: Switchable direction of rotation for versatile applications
    • Tilt sensor: Automatic switch-off in the event of slipping or tilting for maximum work safety


      • You will receive the 3-year Stürmer warranty for this item when you register online.

    • Integrated coolant tank: Direct coolant supply for extended service life of the core drills and improved drilling performance
    • Easy to transport: Practical carrying handle and tool case for easy and safe transportation



    Collet
    DrillWeldon 3/4"
    Core drills
    Core drills Ø max. with manual feed50 mm
    Core drills Ø max. with automatic feed50 mm
    Dimensions and weights
    Length approx.250 mm
    Width/depth approx.220 mm
    Height approx.500 mm
    Weight approx.12 kg
    Electrical connections
    Connection cable length3.5 m
    Electrical Data
    Drive motor output1.75 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Magnet
    Holding force15600 N
    Magnet base length166 mm
    Magnet base width80 mm
    Speed range
    Idle (CW run)100 – 260 / 480 min¯¹
    Standards and certifications
    Protection classIP 42
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Plastic transport case



    Spindle sleeve feedmanual
