| Circular saw unit | |
|---|---|
| Trimming length | 2250 mm |
| Cutting width with rip fence | 820 mm |
| Max. cross-cutting width left of saw blade | 2310 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height at 90° | 102 mm |
| Max. cutting height at 45° | 79 mm |
| Max. saw blade protrusion 90° | 100 mm |
| Max. saw blade protrusion 45° | 78 mm |
| Diameter of (main) saw blade | 315 mm |
| Explanation about diameter of (main) saw blade | with scorer |
| (Main) saw blade speed | 4000 min¯¹ |
Multiple combination

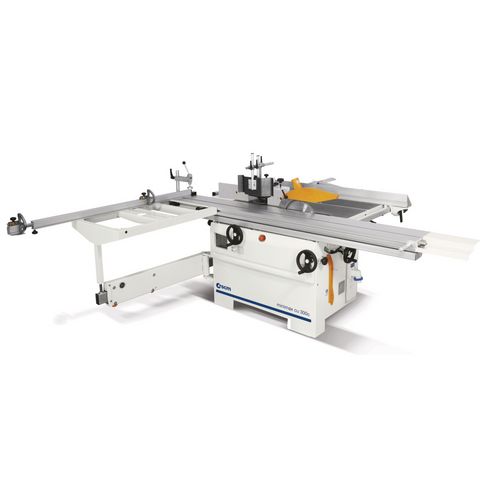

minimax cu 300c F 23 N TERSA
Precise and reliable in use. With rigid milling spindle, aluminum sliding carriage and TERSA knife shaft.
12.850,00
EUR excl. Tax / pc(s).
15.291,50 EUR incl. 19% Tax / pc(s).
15.291,50 EUR incl. 19% Tax / pc(s).
Promotional price *
10.699,00 EUR excl. Tax / pc(s).12.731,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 5500309
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Sturdy cast steel construction
- High-precision sliding table made of anodized aluminum with 2250 mm travel
- Maximum saw blade diameter of 315 mm possible, saw blade can be swiveled up to 45 °< / li>
- Large trimming frame (960 x 600 mm) with an extendable aluminum telescopic stop up to 2660 mm
- Heavily ribbed dressing work tables made of gray cast iron, afterglow and tension-free for decades of stability and flatness < li>Helical toothed steel feed roller for even material feed
- Three milling speeds, manually adjustable
- Milling spindle with right-left rotation
- Three independent industrial motors
- With lockable Main switch, motor protection switch, emergency stop switch
| Dimensions and weights | |
|---|---|
| Weight approx. | 525 kg |
| Electrical Data | |
|---|---|
| Number of drives | 3 |
| Drive motor output | 5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Saw blade protection extraction port diameter | 60 mm |
| Number of extraction ports | 4 |
| Extraction port diameter | 120 mm |
| Feed | |
|---|---|
| Speed | 7 m/min |
| Installation information | |
|---|---|
| Space requirement length | 5093 mm |
| Space requirement width/depth | 4002 mm |
| Space requirement explanation | The dimensions take into account maximum travel distances or useful lengths. |
| Work area length | 1600 mm |
| Work area width/depth | 1600 mm |
| Explanation about work area | Please add the given dimensions with the required space to obtain the free space recommended for the machine. |
| Jointing | |
|---|---|
| Infeed table width | 300 mm |
| Infeed table length | 1510 mm |
| Max. cutting depth | 4 mm |
| Milling cutter diameter max. | |
|---|---|
| not lowerable | 210 mm |
| lowerable | 180 mm |
| Pin milling | 275 mm |
| Milling spindle | |
|---|---|
| Angle | 0 ° |
| Mandrel diameter | 30 mm |
| Usable length | 100 mm |
| Speed(s) | 3500/7000/10000 min¯¹ |
| Planing knife shaft | |
|---|---|
| Type | TERSA |
| Diameter | 72 mm |
| Number of planing blades | 3 St |
| Speed | 5200 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Sliding table length | 2310 mm |
| Sliding table width | 270 mm |
| Sliding table height | 124 mm |
| Table length | 1115 mm |
| Table width | 335 mm |
| Table height | 900 mm |
| Thickness | |
|---|---|
| Table length | 585 mm |
| Table width | 300 mm |
| Working height min. | 3 mm |
| Working height max. | 230 mm |
| Max. cutting depth | 4 mm |
| VPE | 1 |
| Sicherheits- und Warnhinweise | |
| Safety and warning notices |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Combination dressing/parallel fence
- Bogenfrässchutzhaube
- Tersa-knife shaft
- Anodized aluminum sliding carriage
- Safety reversible stop jaws made of aluminum
- Folding stops
| Scoring unit | optionally available |
| Sliding carriage | made of anodised aluminium |
| Trimming frame | with angle-adjustable telescopic crosscut fence with two professional folding fences |
| Eccentric clamp | ✔ |
| Strokes | Combination dressing/parallel fence |
| Curved milling protection hood | ✔ |
| Milling stop | Safety reversible fence jaws made of aluminium |
| Height adjustment and tilting of the saw unit | manual |
| Height adjustment and swivelling of the milling unit | manual |
| Swivel arm for feed apparatus | optionally available |
