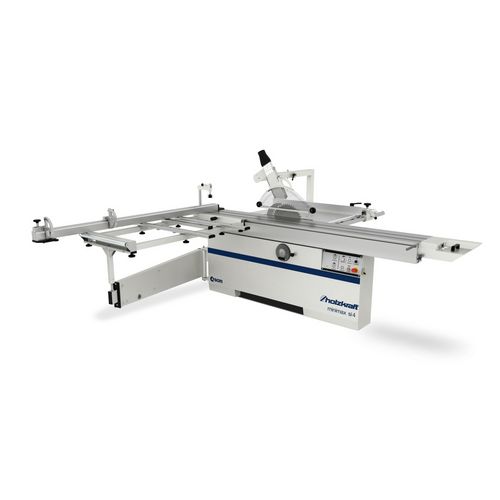

Sliding table saw
minimax si 4 - 400 / 26 ALU
With swiveling saw blade and anodised aluminum format sliding carriage
14.490,00
EUR excl. Tax / pc(s).
17.243,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5504950
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Solid worktable made of heavily ribbed gray cast iron - for maximum stability and durability
- Robust welded steel base frame - guarantees high torsional rigidity and vibration-free working

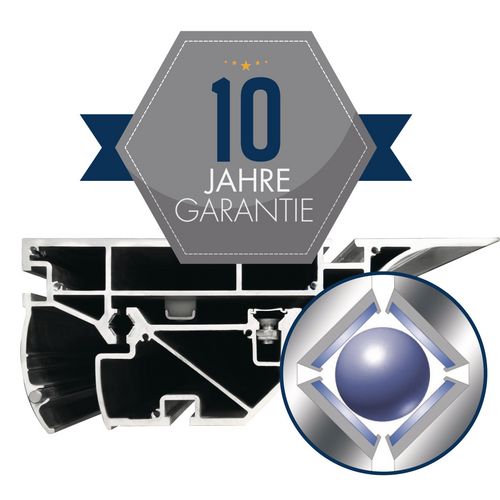

- Precise format sliding carriage made of anodized aluminium - guided smoothly by a high-quality ball contact system

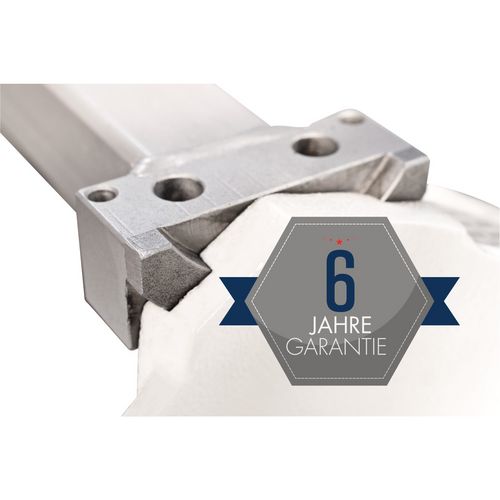

- Carbide guideways - for lasting precision and minimal maintenance
- Pivoting cast iron saw unit with double segment guide - exact zero-point pivoting for maximum cutting accuracy
- Solid rip fence with round bar guide
- Equipped with movable eccentric clamping device
- Integrated angle cutting device on the sliding carriage - for fast and precise mitre cuts
- Equipped with high-quality edging frame - with solid telescopic fence, integrated roller for easy loading and unloading, inclined scale for easy reading and practical eccentric clamp for secure hold

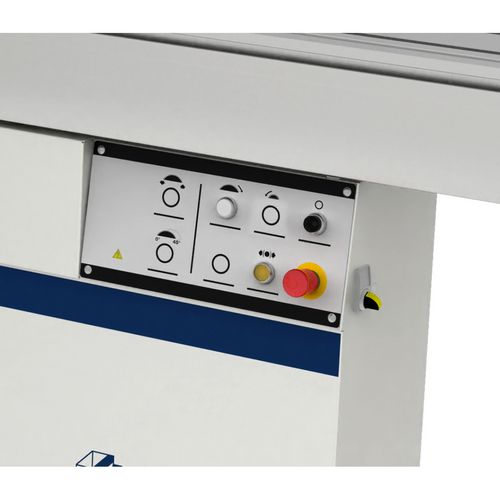

- Saw blade speed adjustable in two stages
- On/off switch integrated in the sliding carriage
- Suitable for cutting aluminum and plastic

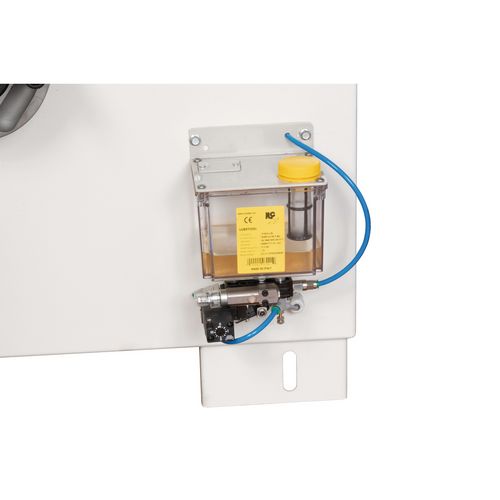

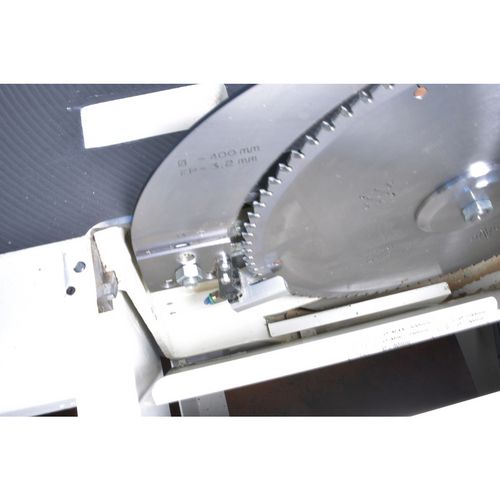

- Micro-lubrication of the saw blade during processing
- Practical saw blade pendulum guard
Sliding table saw for machining aluminum
| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 1270 mm |
| Max. cross cut width left from saw blade | 3260 mm |
| Trimming length | 2600 mm |
| Saw blade angle | 90 45 ° |
| Max. cutting height 90° | 136.5 mm |
| Max. cutting height 45° | 97 mm |
| (Main) saw blade diameter | 400 mm |
| (Main) saw blade speed | 3500/5000 min¯¹ |
| Dimensions and weights | |
|---|---|
| Weight approx. | 700 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 120 mm |
| Saw blade protection extraction port diameter | 80 mm |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 2600 mm |
| Sliding carriage width | 360 mm |
| Sliding carriage height | 142 mm |
| Table length | 940 mm |
| Table width | 560 mm |
| Work height | 900 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Anodised aluminum sliding carriage
- Roll of material on the boom
- Saw rip fence with round bar guide
- table extension
- table extension
- folding stops
- edging shoe
- Eccentric
- Handle for sliding carriage
- Saw blade swing protection
- Mikrosprüheinrichtung
- 2 saw blade speeds, electronically adjustable via inverter
| Anodised aluminium sliding sizing carriage | ✔ |
| Handle for sliding carriage | ✔ |
| Material roll on claming frame | ✔ |
| Saw rip fence | with round rod guide |
| Stops | Professional folding stops |
| Clamp sleigh | ✔ |
| Eccentric clamp | ✔ |
| Table broadening | ✔ |
| Table lengthening | ✔ |
| Saw blade pendulum protection | ✔ |
