    CNC moulder

    VertIQ One

    Vertical CNC Drilling and Milling Machine for Modern Workshops

    37.575,00 EUR excl. Tax / pc(s).
    44.714,25 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 5480100

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Vertical CNC machining center for precise drilling and milling
    • Ideal for furniture, kitchen, and cabinet manufacturing
    • Small footprint of just 3000 x 800 mm for minimal space requirements
    • Plug & Play – simply connect and it is immediately ready for production
    • Integrated linear guides for low-vibration and precise axis movements
    • Ideal for workshops that need to produce efficiently but lack the space for large-scale CNC systems
    • LED status indicator for a visual display of the machine's operating status
    • Powerful, efficient dust extraction system
    • High processing speed (up to 45 m/min)
    • Extensive processing capabilities thanks to pre-programmed machining cycles—e.g., drilling for Lamello, Clamex, hinge, and Minifix fittings


    Minimal Input

    • Low space requirements: compact and vertical


    Maximal Output

    • Performance, precision, productivity



    Tool holderISO 20 ER20
    Spindle speed18000 min⁻¹
    Max. board thickness40 mm
    Number of drill bits15
    Number of milling bits1
    Max. drilling position on the Y-axis800 mm
    Max. milling position on the Y-axis920 mm
    Drive motor output drilling unit1.5 kW
    Drive motor output milling unit2.2 kW
    VPE1
    Dimensions and weights
    Length approx.3000 mm
    Width/depth approx.1200 mm
    Height approx.1700 mm
    Weight approx.620 kg
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Manufacturer infos
    ManufacturerStürmer Maschinen GmbH
    AddressDr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
    E-Mailinfo@stuermer-maschinen.de

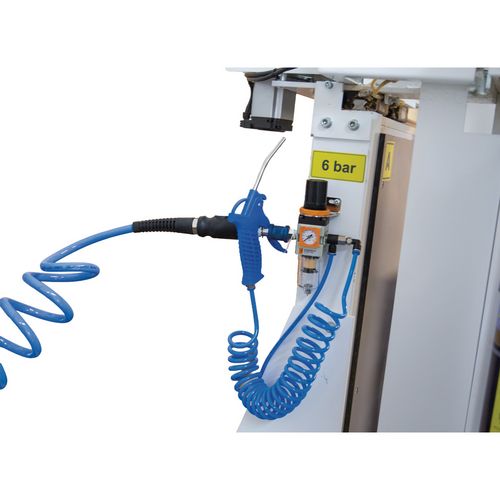

    Pneumatic connection
    Compressed air requirement from to100 150 l/min
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
