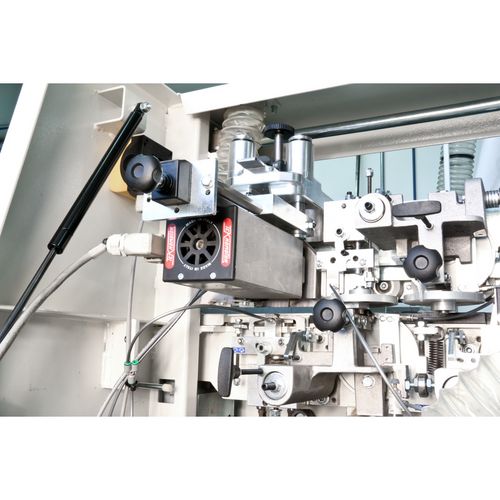

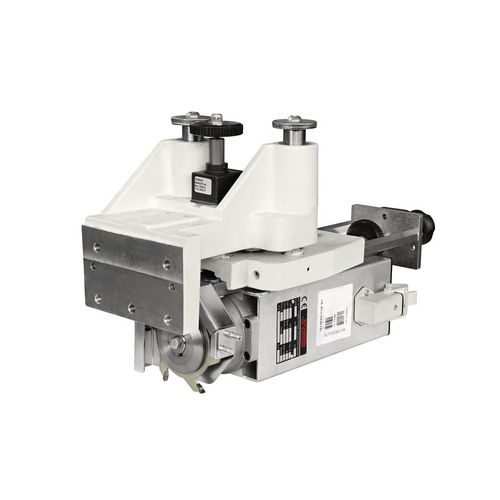

    Option grooving unit

    Groove width 4 mm

    1.405,00 EUR excl. Tax / pc(s).
    1.671,95 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 5514571

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Allows the workpiece to be glued and grooved in one pass
    • Installation only possible as an alternative to the buffing unit 5514560

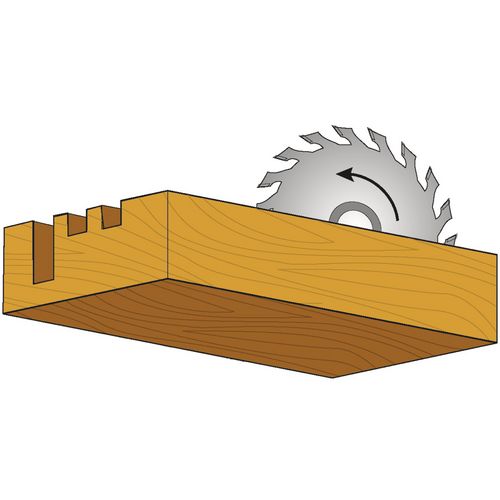

    Slotting unit
    Max. groove depth8 mm
    Groove width4 mm
    Current draw1.1 kW
    Saw blade speed1200 min¯¹
    Saw blade diameter100 mm
    Extraction port diameter60 mm
    Max. groove depth8 mm
    Groove width4 mm
    Current draw1,1 kW
    Saw blade speed1200 min¯¹
    Saw blade diameter100 mm
    Saw blade tpiZ4
    Extraction port diameter60 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
