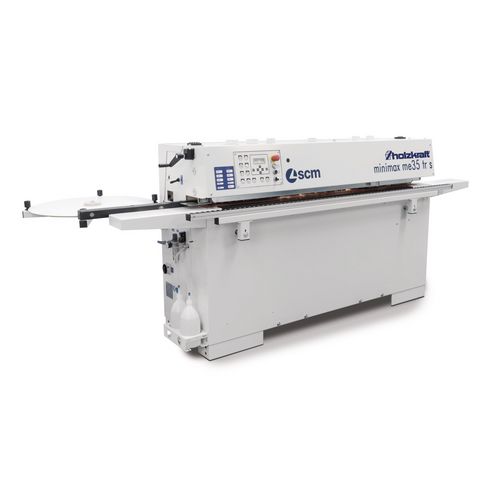

Edge bander

minimax me 35 tr s

With corner copying function, for plastic edges of 0.4 - 2 mm, solid wood edges up to 3 mm and workpieces of 8 - 50 mm

36.450,00 EUR excl. Tax / pc(s).
43.375,50 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5507136

Are you interested in this product?

Put a request

Find Trader

Productdetails

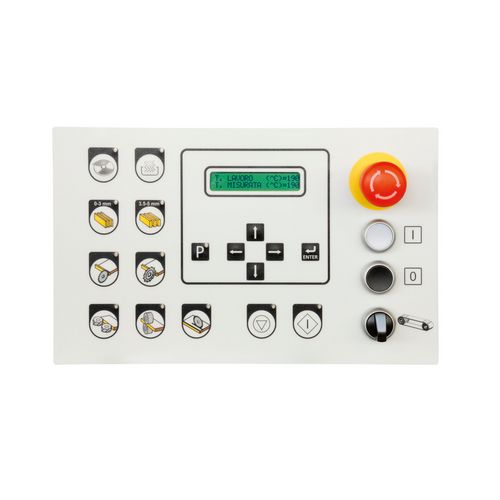

Convenient and easy control of all important functions via control panel on the front

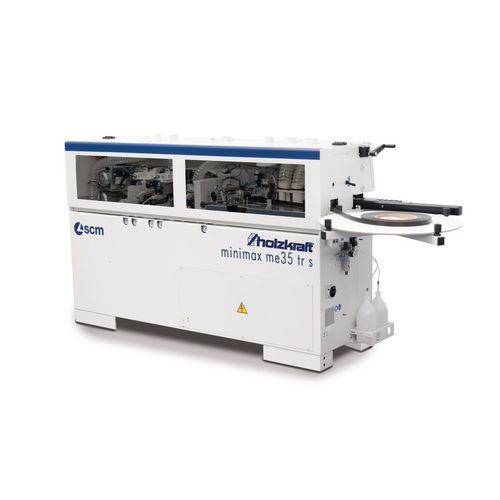

Excellent accessibility to the working units thanks to large hood, which provides additional protection and noise reduction.
Precise and proven units enables optimum machining and perfect edge finishing
Joining unit equipped with two slide cutters </ li>
High-frequency motors for edge processing </ li>
Standard equipped with radius and surface scraper
Optional extendable either by buffing or roller grooving unit with max. groove width 4.0 mm
Available in different equipment variants to adapt to individual requirements
Automatic temperature reduction of the glue unit at longer idle time of machine
Standard equipment with glue container made of aluminum for EVA hot melt adhesive

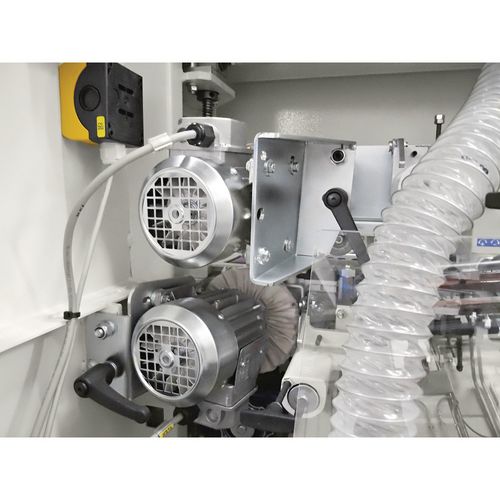

Buffing unit
Current draw	2 x 0.14 kW
Speed	2800 min¯¹

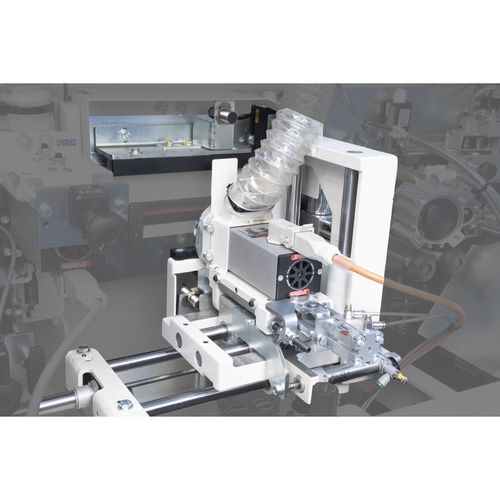

Corner copy unit
Current draw	0.35 kW
Tool diameter	58 mm
Speed	12000 min¯¹

Dimensions and weights
Length approx.	3314 mm
Width/depth approx.	1085 mm
Height approx.	1300 mm
Weight approx.	545 kg

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Feed
Current draw	0.55 kW
Speed	7 m/min

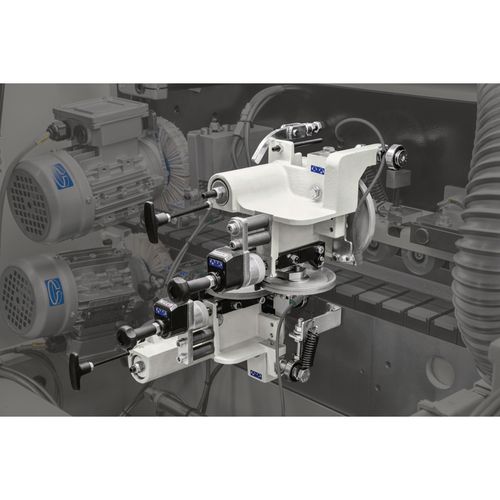

Flush radius milling unit
Current draw	2 x 0.35 kW
Miller diameter HM	55.3 mm
Miller speed	12000 min¯¹
Extraction port diameter	60 mm
Number of extraction ports	2

Gluing unit
Current draw	0.18 kW
Extraction port diameter	60 mm
Filling quantity	0.8 kg

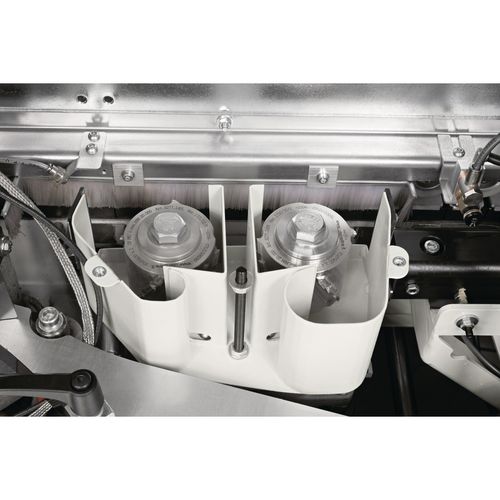

Pre-milling unit
Current draw	2.2 kW
Milling speed	9000 min¯¹
Diamond milling diameter	80 mm
Milling height	56 mm
Material removal	0.5 / 1 / 1.5 / 2 mm

Product information EU 2023/2854
Type of the generated data	Usage data
Format of the generated data	Common, machine-readable formats such as JSON
Amount of data	Up to 5 MB
Continuous data generation in real time	Yes
Data storage location	On the device and a remote server
Data access	On the device and physical and wireless interfaces
Further information	In the operating instructions or at info@stuermer-maschinen.de

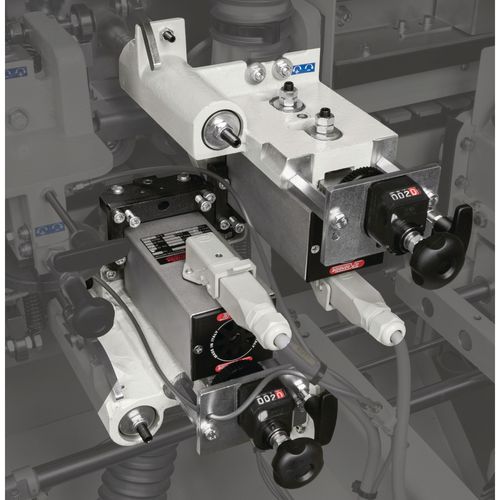

Scraper blade units
Radius scraper	2 mm

Workpiece
Thickness	8 – 50 mm
Minimum length	120 mm
Min. width	110 mm

VPE


Sicherheits- und Warnhinweise
Safety and warning notices

Unit: pc(s).
Packaging unit: 1

Diamond tools for the roughing unit

Roller edge rotary platen	730 mm

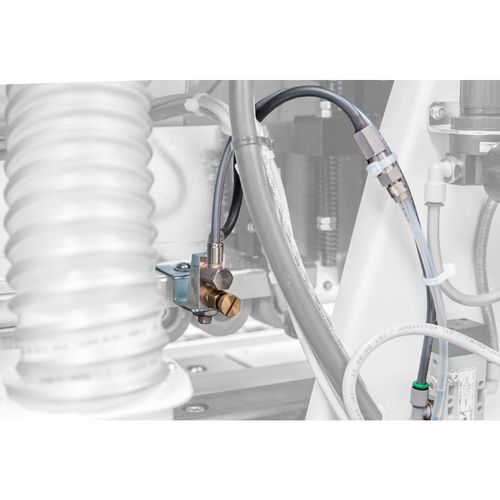

Anti-adhesive spraying unit	✔
Pre-milling unit	with two slide cutters
Edge preheating device	✔

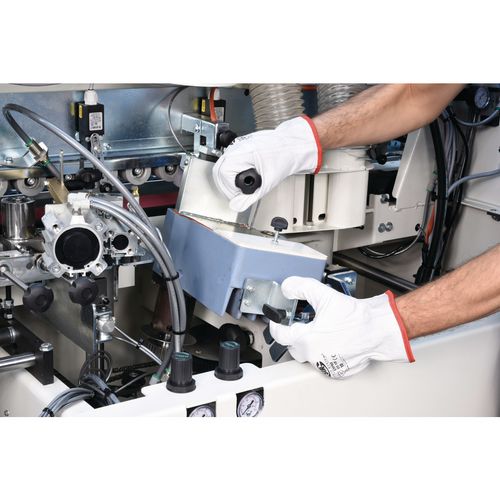

Glue container quick-change kit	✔
Bonding unit	✔
Jack knife	✔
Corner copy unit	✔
Flush radius milling unit	✔

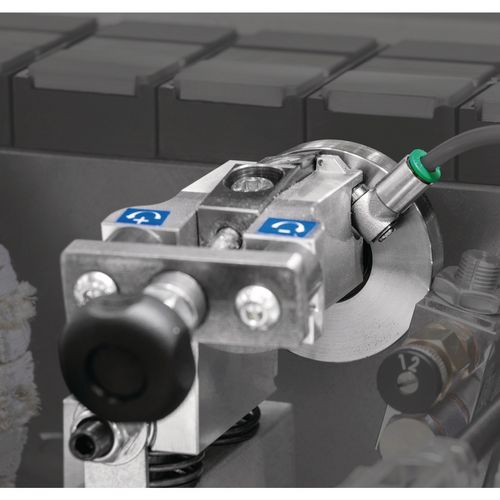

Radius scraper unit	With numerical position display
Area scraper unit	With rotating copying device
Buffing unit	✔
