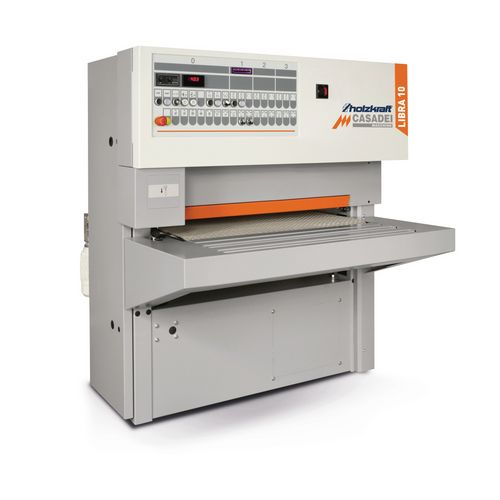

    • Productimage for CASADEI LIBRA 10/95 TC action equipment

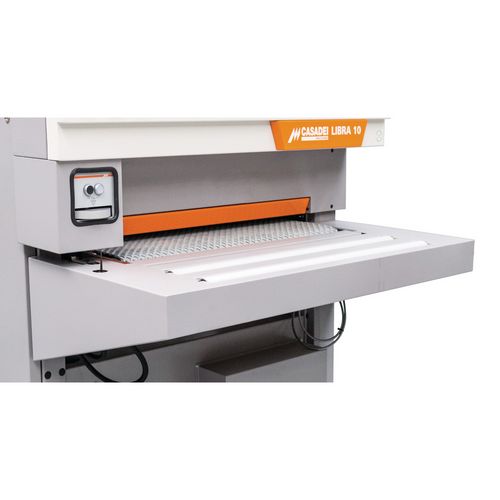

    • Productimage for CASADEI LIBRA 10/95 TC action equipment
    • Productimage for CASADEI LIBRA 10/95 TC action equipment
    • Productimage for CASADEI LIBRA 10/95 TC action equipment
    Brandimage to Product CASADEI LIBRA 10/95 TC action equipment

    Wide belt sander

    CASADEI LIBRA 10/95 TC action equipment

    Compact machine with combination sanding unit. The universally applicable entry-level model.

    20.690,00 EUR excl. Tax / pc(s).
    24.621,10 EUR incl. 19% Tax / pc(s).
    Promotional price *
    17.599,00 EUR excl. Tax / pc(s).
    20.942,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2026 in Germany.

    Art.-No. 5222100A2

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Also for smaller craft shops for occasional use
    • Combination sanding unit with sanding shoe for fine sanding
    • Standard with diagonally grooved steel roller Ø 120 mm for calibration
    • Fine adjustment of the working height
    • Clear control panel on the front
    • Robust tube-stiffened monobloc steel machine body, robot welded, high-mounted working units for maximum rigidity
    • Motorized height adjustment of the work table with digital display
    • Electronically controlled sanding belt oscillation
    • Carpet feed via gear motor with two speeds
    • Natural rubber feed carpet with negative profile
    • Flexible steel pressure rail in front of the first unit
    • Rubber rollers, in front of or behind each working unit
    • Pneumatic belt tension per unit with decimal correction possibility of the grain / belt thickness
    • Universally applicable for solid wood and veneer thanks to combi unit
    • Entry level model for smaller companies
    • Working width 950 mm



    Room amenities
    Combination unit for calibrating and sanding

    • Slant-grooved steel roller Ø 120 mm with height fine adjustment
    • Hard sanding pad with graphite pad
    • Universal version for calibration and sanding of solid wood, chipboard and veneer



    Dimensions and weights
    Length approx.1388 mm
    Width/depth approx.1545 mm
    Height approx.1668 mm
    Electrical Data
    Height adjustment motor power0.25 kW
    Output power (motor power)7.5 kW
    Feed motor output0.33/0.55 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter140 mm
    Feed unit
    Feed speed4.5 / 9 m/min
    Sanding machine
    Sanding belt length1525 mm
    Sanding belt width970 mm
    Max. sanding width950 mm
    Workpiece
    Min. height4 mm
    Max. height170 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Worktable height adjustment with electronic display of the working height
    • Oscillation of the sanding belts with electronic system
    • Rubber-coated grooved pressure roller at inlet 1 ° position with backflow preventer
    • Grooved calibration steel roller
    • Switching the sanding pad on and off from the control panel
    • Switching the roller on and off from the control panel
    • Electronic control Fox 500 KTR
    • Table extension with 2 castors in inlet and outlet
    • Automatic table positioning: Adjustment of worktable height automatically via microswitch without correction of material removal
