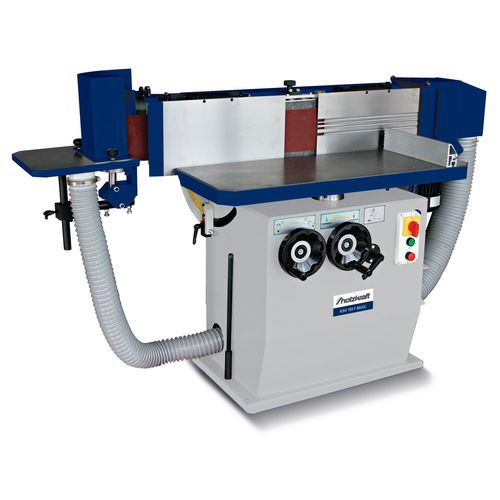

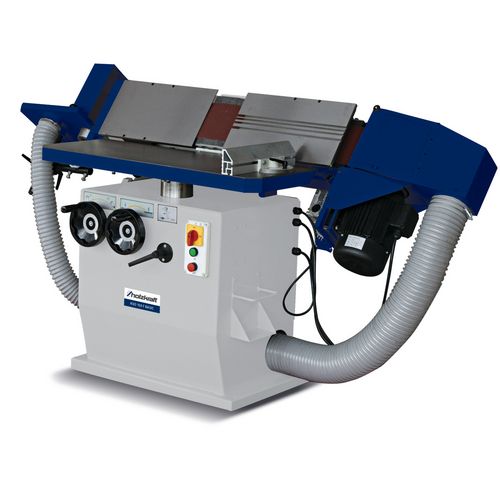

Edge sanding machine

KSO 150 F BASIC

With swiveling sanding unit, sanding belt oscillation and veneer edge sanding device

3.099,00 EUR excl. Tax / pc(s).
3.687,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5363150

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Heavy machine stand guarantees high torsional rigidity and vibration-free working
    • Better sanding results due to belt oscillation via separate geared motor
    • Optionally selectable oscillation
    • Fine edge veneer edge sanding device standard
    • Grooved ramp for veneer overhang
    • Quick conversion from veneer to solid wood sanding
    • Height adjustable sanding table to utilize the entire sanding belt width
    • Height adjustment of the sanding table and sanding unit swiveling via handwheels
    • Height-adjustable additional table with suction for sanding of radii
    • Optimal chip removal by suction at the aggregate and at the cross table
    • Automatic compensation of belt length differences by spring-loaded belt tension



    • Torsion-free and vibration-free design
    • Height-adjustable sanding tables
    • Additional sanding surface



    Dimensions and weights
    Length approx.1900 mm
    Width/depth approx.810 mm
    Height approx.1230 mm
    Weight approx.290 kg
    Drive output
    Oscillation motor0.25 kW
    Electrical Data
    Absorbed power drive motor3 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter120 mm
    Sanding machine
    Sanding belt length3000 mm
    Sanding belt width150 mm
    Circumferential belt speed(s)20 m/s
    Sanding surface length1050 mm
    Sanding surface width220 mm
    Pivoting0 – 45 °
    Oscillation stroke20 mm
    Work top(s)
    Work table length960 mm
    Work table width352 mm
    Work table height adjustment210 mm
    Min. cross table height730 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Sanding belt 3000 x 150 K100
    • Graphite flooring
    • Miter fence
