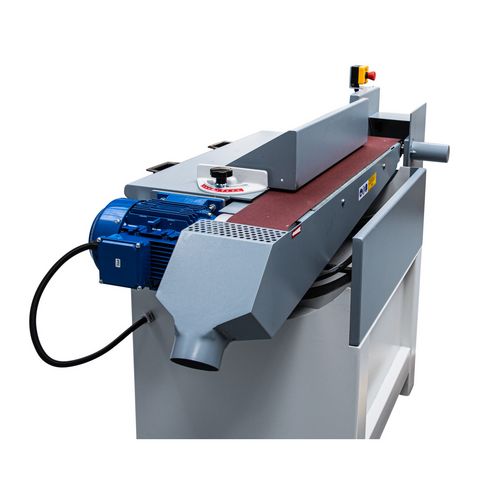

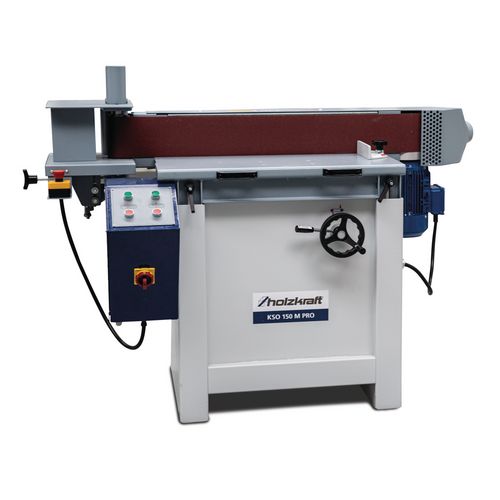

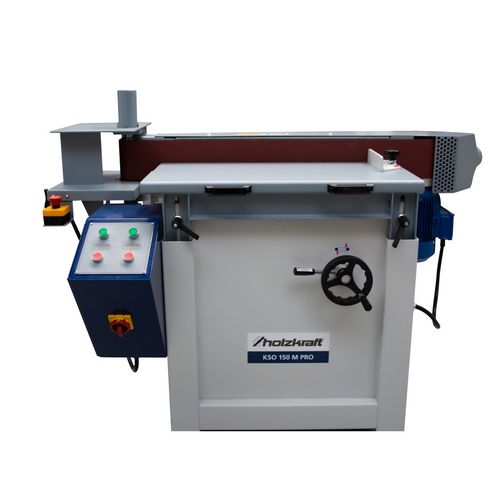

Edge sanding machine
KSO 150 M PRO
With oscillating sanding belt for solid wood sanding
7.800,00
EUR excl. Tax / pc(s).
9.282,00 EUR incl. 19% Tax / pc(s).
9.282,00 EUR incl. 19% Tax / pc(s).
Promotional price *
5.699,00 EUR excl. Tax / pc(s).6.781,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 5390015
Are you interested in this product?
Put a request
Find Trader
Productdetails

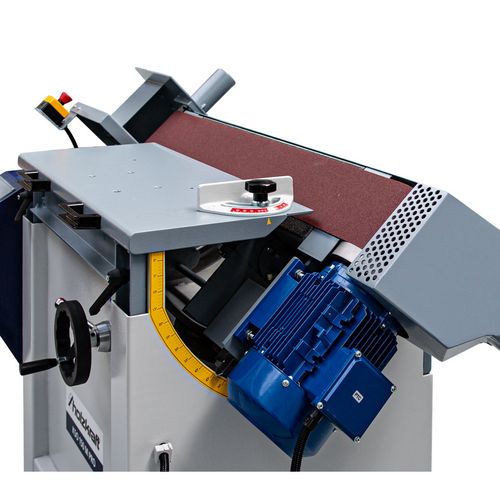

- Grinding unit can be swivelled by hand wheel
- Machine stand made of welded steel guarantees high torsional rigidity and vibration-free operation
- Oscillating sanding belt with separate gear motor for better sanding results

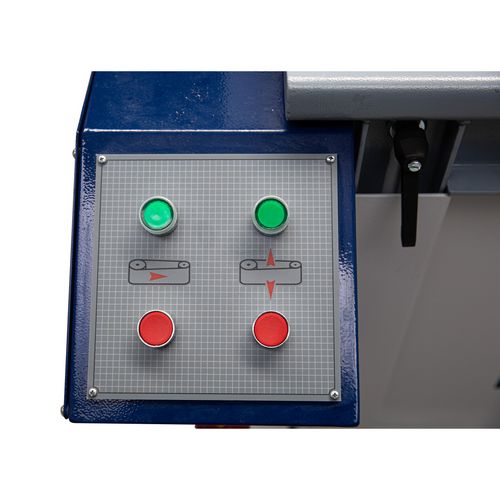

- Oscillation optionally switchable
- Grinding sole with graphite coating for a longer service life of the grinding belt
- Height-adjustable sanding table for utilization of the entire sanding belt width
- Additional table with suction openings for grinding radii on the rubberized deflection roller

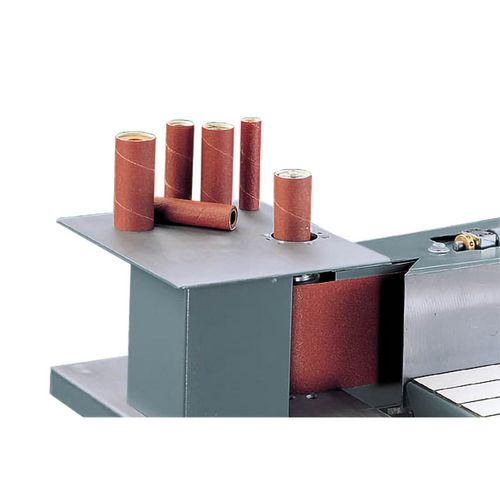

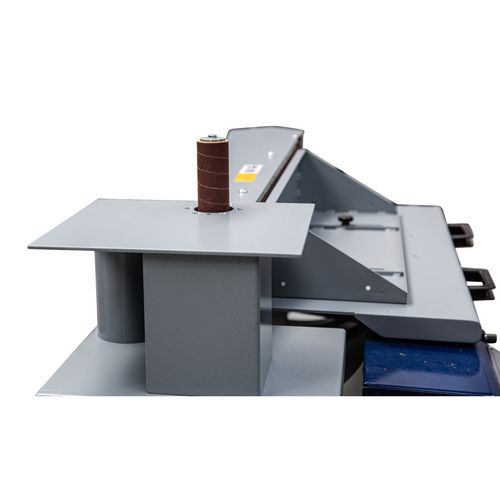

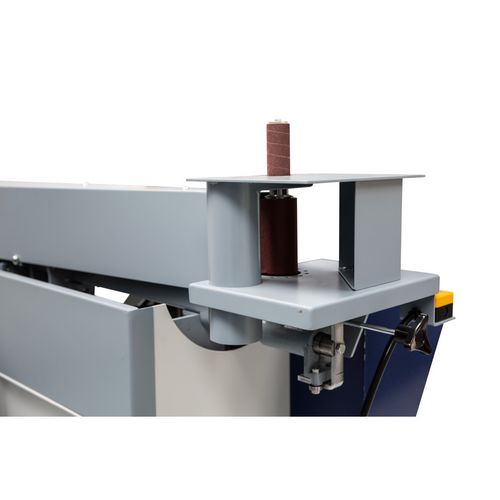

- Sanding sleeve device with attachable work table
- The spring-loaded belt tension automatically compensates for belt length differences
| Dimensions and weights | |
|---|---|
| Length approx. | 1700 mm |
| Width/depth approx. | 1000 mm |
| Height approx. | 1150 mm |
| Weight approx. | 250 kg |
| Electrical Data | |
|---|---|
| Oscillation motor power | 0.11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Number of extraction ports | 2 |
| Extraction port diameter | 100 mm |
| Sanding machine | |
|---|---|
| Sanding belt length | 2580 mm |
| Sanding belt width | 150 mm |
| Circumferential belt speed(s) | 14 m/s |
| Sanding surface length | 800 mm |
| Sanding surface width | 150 mm |
| Max. sanding height | 150 mm |
| Pivoting | 0 – 90 ° |
| Oscillation stroke | 15 mm |
| Work top(s) | |
|---|---|
| Work table length | 900 mm |
| Work table width | 360 mm |
| Work table height adjustment | 110 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1x sanding belt K100
- 5x rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm
- 6x sanding sleeves K80 - Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm
- On-board tool
- Miter fence
