Gear drilling machine

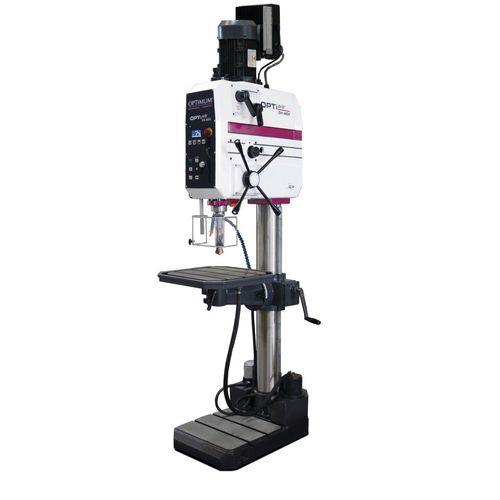

OPTIdrill DH 45V
Heavy duty tapping attachment for industrial use. With continuously adjustable speed control
9.729,00
EUR excl. Tax / pc(s).
11.577,51 EUR incl. 19% Tax / pc(s).
11.577,51 EUR incl. 19% Tax / pc(s).
Promotional price *
9.199,00 EUR excl. Tax / pc(s).10.946,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 3034262
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Dirt and water resistant, easy to clean membrane keypad
- Electronics 24V DC
- Drilling depth stop
- Automatic gear lubrication via oil pump
- Thread cutting device
- Machine light integrated in drill head
- Main switch
- Largely dimensioned, height-adjustable safety screen with safety switch for the greatest possible protection of the operator
- Largely dimensioned, solid drilling table, precisely machined with parallel T-slots and circumferential cooling water channel, heavily ribbed at the rear, can be tilted sideways by ± 90°.
- Coolant unit and external coolant tank can be removed for easy and complete emptying
- Extremely stable, thick-walled cast column for high force absorption
- Solid base plate with parallel T-slots, precisely surface machined
- Optional foot switch available for switching between clockwise and counterclockwise rotation and for thread cutting (article no. 3050032)
OPTIdrill DH 45V
- Electrically operated quill feed
- Programmable feed cut-off
- Easy to read digital display
- Digitally adjustable drilling and tapping depth
- Digital zero point can be set
- With infinitely variable speed control
OPTIdrill DH 45G
- Mechanical quill feed
You will receive the 3-year Stürmer warranty for this item when you register online.
| Dimensions and weights | |
|---|---|
| Column diameter | 150 mm |
| Length approx. | 880 mm |
| Width/depth approx. | 595 mm |
| Height approx. | 2445 mm |
| Weight approx. | 550 kg |
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 40 mm |
| Continuous drilling performance steel (S235JR) | 35 mm |
| Thread tapping steel (S235JR) | M 30 |
| Drilling table | |
|---|---|
| Workspace length | 530 mm |
| Workspace width | 530 mm |
| T-groove size | 18 mm |
| T-groove number | 3 |
| T-groove spacing | 125 mm |
| Rotation | 360 ° |
| Angle | 90 ° |
| Load bearing capacity | 250 kg |
| Max. distance spindle - drilling table | 740 mm |
| Min. distance spindle - drilling table | 130 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 2.2 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 1210 mm |
| Work area length | 435 mm |
| Work area width | 445 mm |
| Machine base T-groove size | 18 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 150 mm |
| Motor(s) | |
|---|---|
| Coolant pump drive motor output | 100 W |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device |
| Data access | Via wireless interfaces |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
| Speed range | |
|---|---|
| Speed range | 30 2430 min¯¹ |
| Number of gears | 4 Steps |
| Speed control | electronic |
| Spindle | |
|---|---|
| Quill stroke | 170 mm |
| Spindle chuck | MT 4 |
| Reach | 350 mm |
| Quill feed | automatic |
| Quill feed speed | 0.1 – 0.2 mm/rev |
| Quill feed gears | 3 Steps |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Keyless chuck 1 - 16 mm
- Morse cone MK 4-B16
