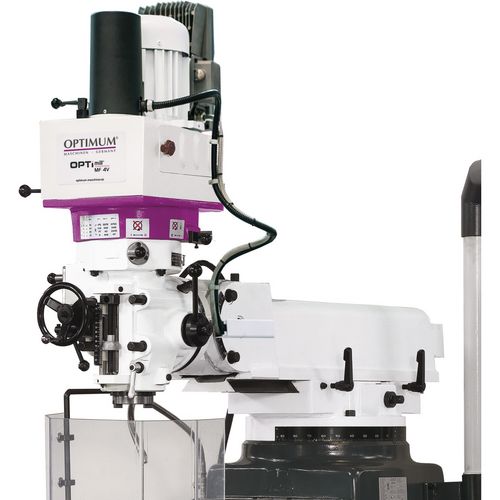

OPTImill MF 4V

Multifunctional drilling and milling machines for professional use. Electronically stepless drive with frequency converter "made in EU" and digital 3-axis position indicator

21.600,00 EUR excl. Tax / pc(s).
25.704,00 EUR incl. 19% Tax / pc(s).

Promotional price *

20.999,00 EUR excl. Tax / pc(s).
24.988,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 3336050

Are you interested in this product?

Put a request

Find Trader

Productdetails

Heavy, solid design made from high-quality Meehanite cast iron
High concentricity due to tapered roller bearing, ≤ 0.01 mm measured in the sleeve
X- and Z-axis with adjustable dovetail guide
Y-axis with flat guide
Motorized table height adjustment (Z-axis)
Coolant device
Digital position display
Solid and generously dimensioned cross table, precisely surface-finished with adjustable end stops
Spindle head: inclination up/down ± 45° and swivel left/right ± 90
Automatic spindle sleeve feed
Adjustable drilling depth stop with millimeter scale, readable from the front
Right/left rotation for thread cutting
Central lubrication
Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum user protection

You will receive the 3-year Stürmer warranty for this item when you register online.

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Cooling lubricant system
Coolant pump(s) drive power	100 W

Dimensions and weights
Length approx.	1500 mm
Width/depth approx.	1450 mm
Height approx.	2200 mm
Weight approx.	1150 kg

Drilling/milling head
Mill head swivel range	± 90 °

Drilling/milling output
Max. size milling head	100 mm
Max. size shaft milling cutter	20 mm
Drilling performance steel (S235JR)	32 mm
Continuous drilling performance steel (S235JR)	28 mm

Electrical Data
Total rated value	4.5 kW
Supply voltage	400 V
Mains frequency	50 Hz

Milling table horizontal
Table length	1370 mm
Table width	254 mm
Min. clearance vertical spindle - milling table	40 mm
Max. clearance vertical spindle - milling table	446 mm
T-groove size	16 mm
T-groove number	3
T-groove spacing	63 mm
Max. load bearing capacity	275 kg

Product information EU 2023/2854
Type of the generated data	Usage data
Format of the generated data	Common, machine-readable formats such as JSON
Amount of data	Up to 5 MB
Continuous data generation in real time	Yes
Data storage location	On the device
Data access	Via physical interfaces
Further information	In the operating instructions or at info@stuermer-maschinen.de

Standards and certifications
Standard	DIN EN 55011
EMC level	C2

Travel
X axis manual	900 mm
Y axis manual	320 mm
Z axis manual	400 mm
X axis automatic	800 mm
Z axis automatic	365 mm

Vertical spindle
Reach from to	200 – 680 mm
Spindle chuck	ISO 40 DIN 2080
Speed range	9 – 6750 min¯¹
Number of gears	8
Speed control	electronically adjustable
Vertical spindle normal operation	3 kW
Swivel range milling cutter head Z - X plane	± 45 °
Quill stroke	127 mm
Spindle sleeve feed	0.038/0.076/0.152 mm/rev

VPE

Unit: pc(s).
Packaging unit: 1

Chip tray
Operating tool

Digital position indicator

DPA 21
