minimax t 55 es

The professional artisan machine with swiveling spindle and four speeds

10.790,00 EUR excl. Tax / pc(s).
12.840,10 EUR incl. 19% Tax / pc(s).

Promotional price *

7.899,00 EUR excl. Tax / pc(s).
9.399,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.

Art.-No. 5502251

Are you interested in this product?

Put a request

Find Trader

Productdetails

Stable steel gray cast iron construction
Large dimensioning milling unit made of cast iron, swiveling to -45 ° to the rear
Display of milling speeds by LEDs
Fast, trouble-free speed change via eccentric tension
Forward and reverse running
Display height and inclination 1/10 mm exactly

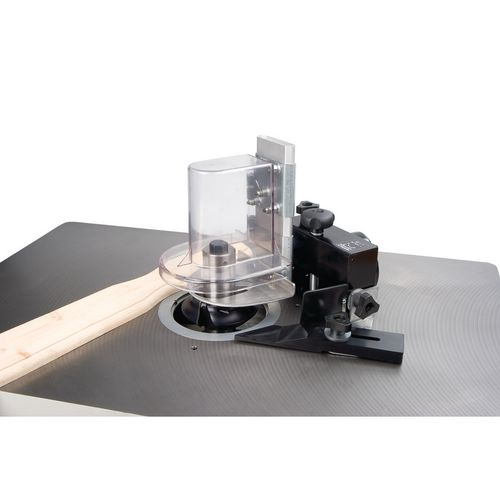

Heavy-duty milling stop: with fine adjustment via toothed rack, with numeric display, aluminum stop jaws, 3-positionable for quick repetition of adjustment

Dimensions and weights
Length approx.	1200 mm
Width/depth approx.	855 mm
Weight approx.	510 kg

Electrical Data
Drive motor output	5.0 kW
Supply voltage	400 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter	2 x 120 mm

Footprint
Space requirement length	1960 mm
Space requirement width/depth	1005 mm
Space requirement explanation	The specifications take into account maximum travel distances or useful lengths.
Machine body length	1200 mm
Machine body width/length	855 mm
Work area length	1600 mm
Work area width/depth	2300 mm
Explanation of work area	Please add the given dimensions with the required space to obtain the free space recommended for the machine.

Milling cutter diameter max.
Max. tool diamter	240 mm
Max. tool diamter lowerable	230 mm
Profile milling	210-240 mm
Tenoning milling	320 mm

Milling spindle
Angle	0 – -45 °
Usable length	125 mm
Speed(s)	3500/6000/8000/10000 min¯¹
Arbor diameter	30 mm

Work table
Length	1080 mm
Width	655 mm
Table height	900 mm

VPE

Unit: pc(s).
Packaging unit: 1

Aluminum Fräsanschlagbacken
Bogenfrässchutzhaube
