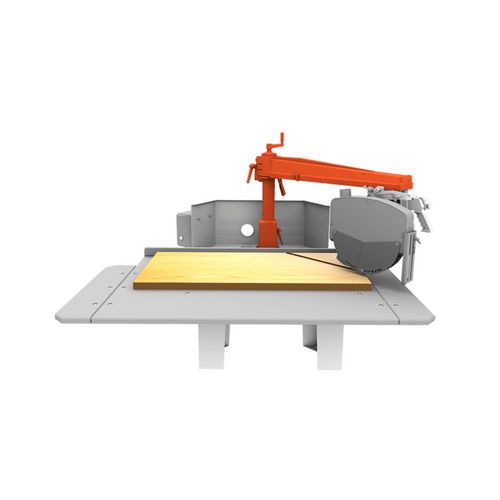

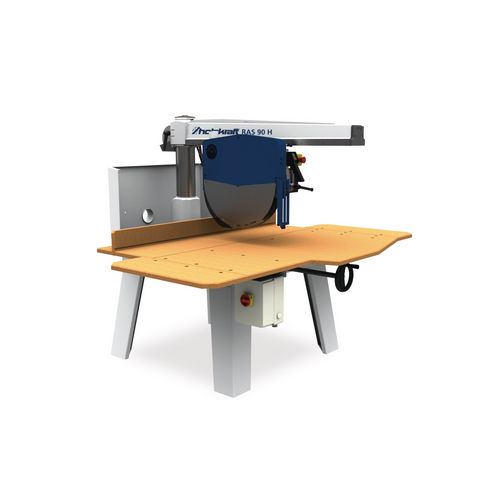

    Radial arm saw

    RAS 90 H

    For cutting to length and trimming planks

    10.550,00 EUR excl. Tax / pc(s).
    12.554,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    9.999,00 EUR excl. Tax / pc(s).
    11.898,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 5650190

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For large cutting lengths e.g. in kitchen construction or for floorboards
    • Small footprint and versatile
    • Saw blade with a large diameter of 565mm and chip limiter
    • Quick changeover between double miter cuts or cutting to length
    • Robust cast iron swivel arm with replaceable square guides
    • Movable saw unit with return spring

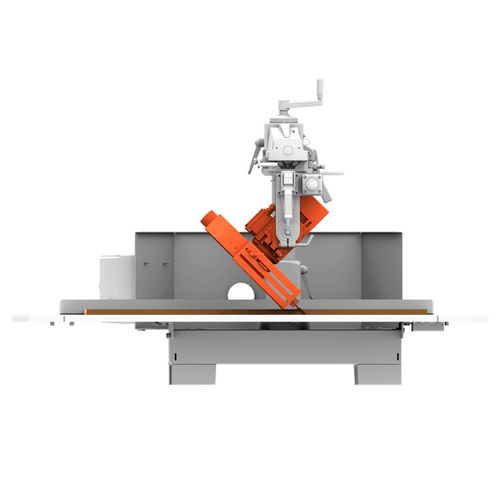

    • Saw unit can be swiveled on one side by 45 degrees
    • Height adjustment of the saw arm conveniently via hand wheel on the underside of the table
    • Motor with mechanical brake
    • Roller conveyor for both sides and cutting line laser available as accessories



    • Robust cast iron swivel arm with exchangeable hexagonal guides
    • Movable saw unit with return spring, eightfold bearing for precise cuts
    • Saw unit can be swiveled on one side by 45 degrees
    • Motor with mechanical brake
    • Aluminium fence as standard
    • Roller conveyors with one meter length for both sides available as accessories



    Circular saw unit
    Saw blade angle-45 °
    Swivel angle saw arm-45 – 45 °
    Max. cutting height 45°280 x 200 mm
    Max. cutting height -45°470 x 200 mm
    Max. cross section850 x 20 mm
    Max. cutting height 0°/45°200/135 mm
    (Main) saw blade diameter565 mm
    Diameter saw blade bore30 mm
    (Main) saw blade speed2800 min¯¹
    Dimensions and weights
    Length approx.1970 mm
    Width/depth approx.1740 mm
    Height approx.1720 mm
    Weight approx.362 kg
    Electrical Data
    Drive motor output5.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Saw blade protection extraction port diameter60 mm
    Noise emission
    Sound pressure level< 92 dB(A)
    Sound power level< 88 dB(A)
    Sliding carriage and table
    Table length1970 mm
    Table width1285 mm
    Work height800 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Widia saw blade Ø 565 x 4.5 x 30 mm Z96 with chip limiter
