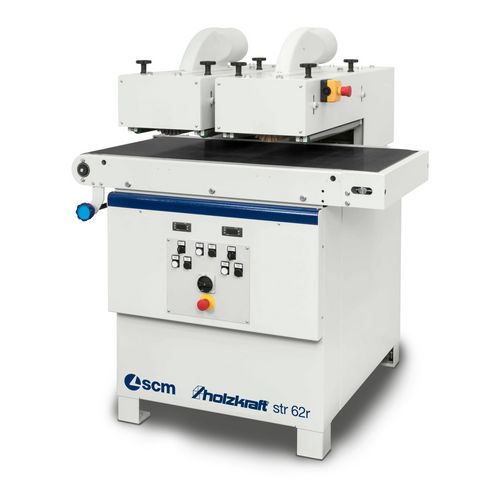

str 62l

Two motorized height-adjustable units

22.650,00 EUR excl. Tax / pc(s).
26.953,50 EUR incl. 19% Tax / pc(s).

Promotional price *

18.199,00 EUR excl. Tax / pc(s).
21.656,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.

Art.-No. 5506163

Are you interested in this product?

Put a request

Find Trader

Productdetails

Constructed for professional structuring and sanding
Motorized height adjustment of the working units with digital display
Units can be switched on individually

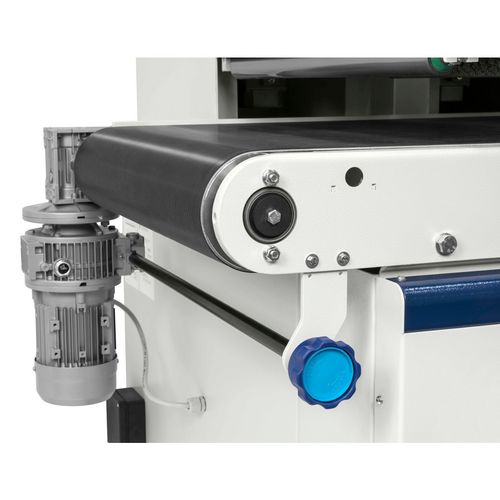

High-resistant rubberised conveyor belt
Infinite feed
Inlet height constant
Models str l with infinitely variable, inverter controlled brush speed: this allows the exact adaptation of the speed to the material. This makes it particularly suitable for sensitive materials.

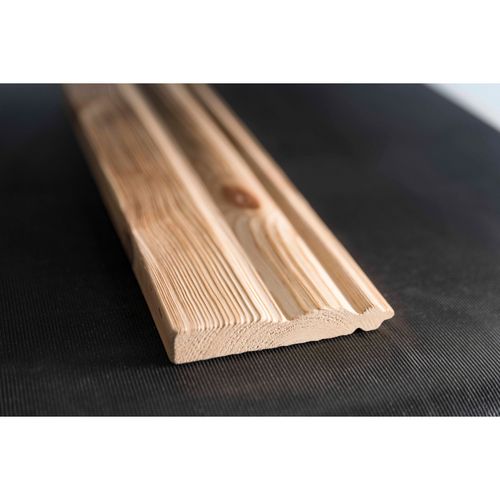

Unit for saw cut optics available as an option

Motorized height adjustment of the units
Units individually switchable
Feed infinitely variable
Brush speed infinitely variable

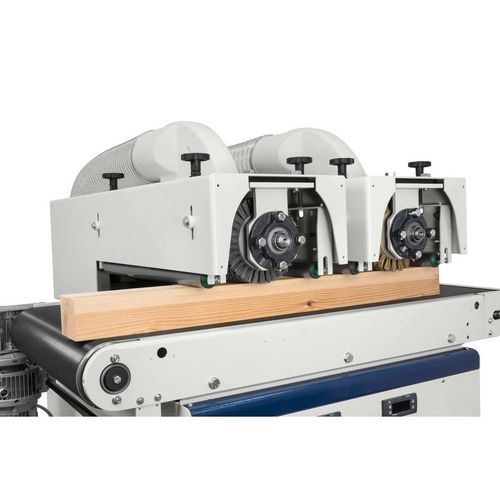

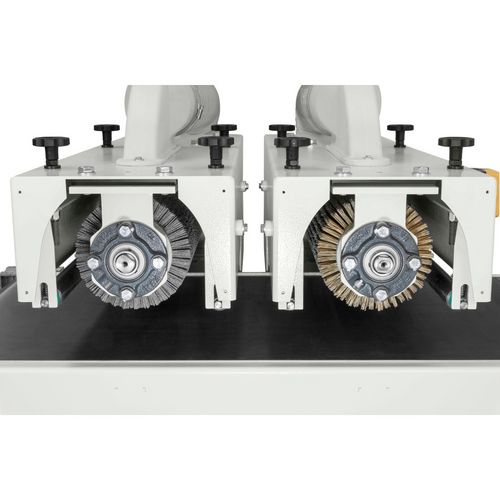

Brushes
Diameter	240 mm
Length	600 mm
Rotation	100 – 1500 min¯¹

Dimensions and weights
Length approx.	1300 mm
Width/depth approx.	1300 mm
Height approx.	1550 mm
Weight approx.	730 kg

Electrical Data
Drive motor output	2 x 4.0 kW
Input power of feed motor	0.37 kW
Total input power	8.37 kW
Supply voltage	400 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter	2 x 140 mm

Feed unit
Feed speed	1 – 13 m/min

Noise emission
Sound power level Lw (idling without extraction unit)	65 dB(A)

Sanding machine
Max. sanding width	600 mm

Workpiece
Max. height	300 mm
Max. weight	100 kg

VPE

Unit: pc(s).
Packaging unit: 1

Brush K120
Brush K180

If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
